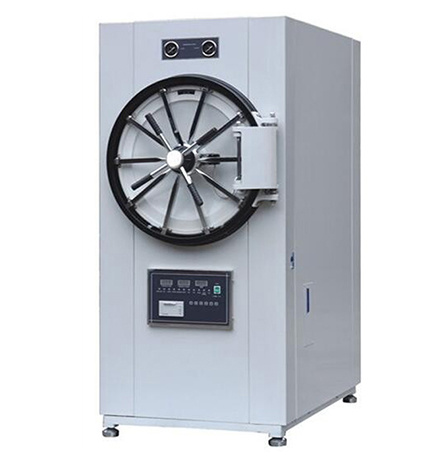

Product introduction:
This horizontal pressure sterilizer adopts the gravity displacement method to remove the cold air in the inner chamber, so that the cold air content of the steam in the inner chamber is less, and the sterilization is more reliable. At the same time, during the sterilization process of the equipment, the control system automatically adjusts the steam intake and exhaust steam according to the temperature of the inner room. It is mainly used in hospital supply rooms, operating rooms, pharmaceutical factories and scientific research laboratories and other units to sterilize medical and experimental cloth items, surgical instruments and utensils.
Main features:
• The sterilization process is automatically controlled without supervision and is easy to use.
• It has a drying function to achieve the drying effect of sterilized items.
• Equipped with over-temperature and over-pressure automatic protection devices.
• Safety interlock device; when the door is not closed tightly, steam cannot enter the inner main body and is protected against overcurrent; when the current is overloaded, the power circuit breaker will automatically cut off the power.
• The alarm prompts that when the pressure in the sterilization chamber is greater than 0.027MPa, the door is interlocked and cannot be opened.
• Overpressure protection, safety valve automatic pressure relief protection when the pressure exceeds the working pressure. Low water level protection device; the water cannot be started before the high water level, and the power is automatically cut off when the low water level is missing.
• Overcurrent protection; when the current is overloaded, the power supply is cut off automatically.
• The whole machine is made of stainless steel.
• With printing function.
Main parameters:
| Model | WS-150YDB | WS-200YDB | WS-280YDB |
Sterilizing chamber volume | 150L Φ440×1000 | 200L Φ515×1000 | 280L Φ600×1000 |
| working pressure | 0.22MPa | ||
| Working temperature | 134ºC | ||
Temperature adjust range | 40ºC-134ºC | ||
Time of sterilization | 0-99 min | ||
Time of drying | 0-99 min | ||
Heat average | ≤±2ºC | ||
Power | 9KW/380V50Hz | 9KW/380V50Hz | 12KW/380V50Hz |
Dimension(mm) | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 |
Exterior package dimension(mm) | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
G.W/N.W | 430/340 KG | 436/350 KG | 570/462 KG |

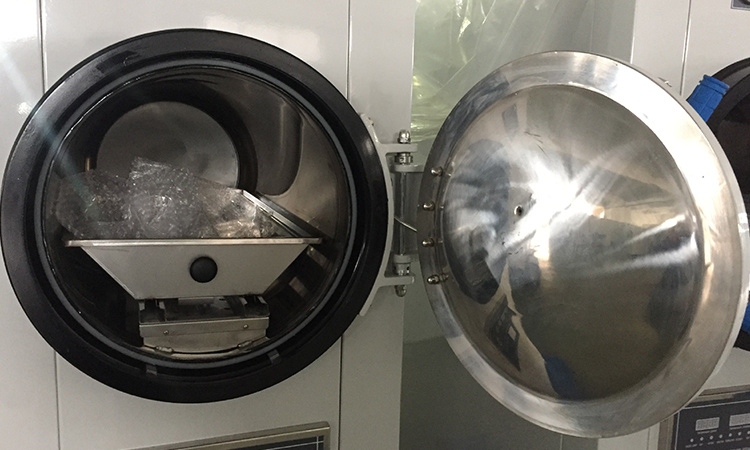

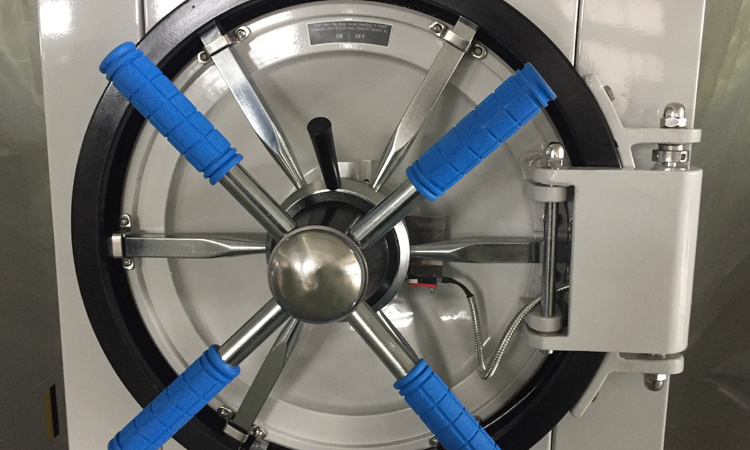

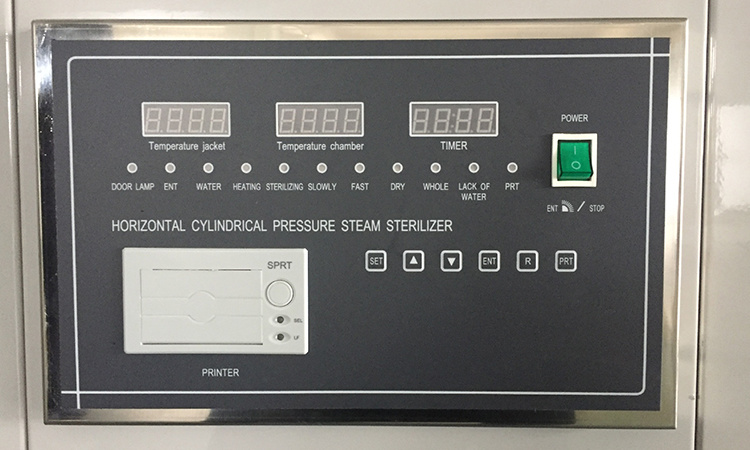

Product details:

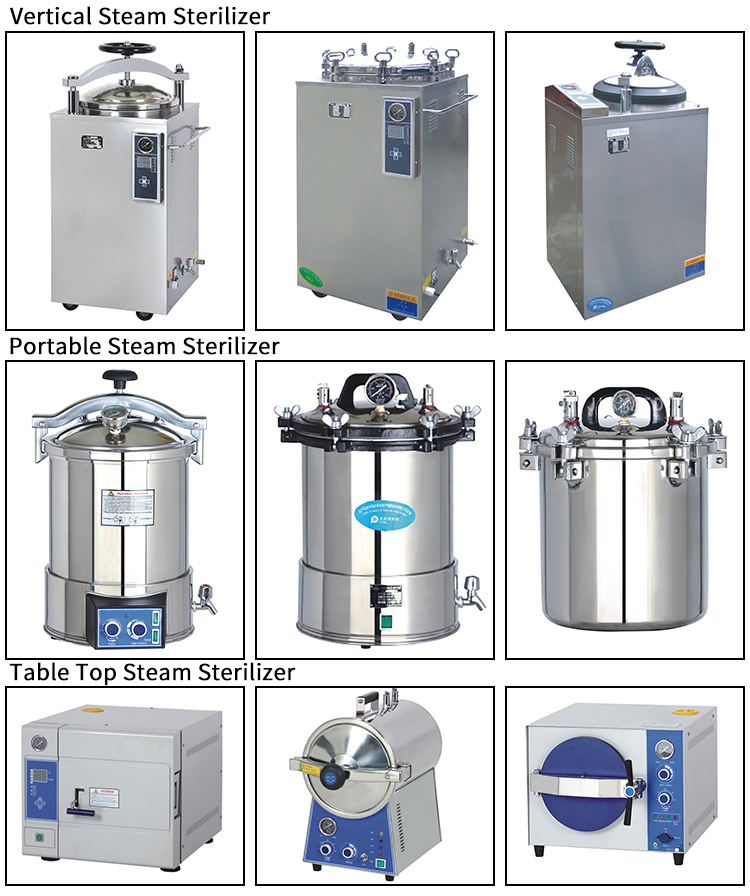

Other product:

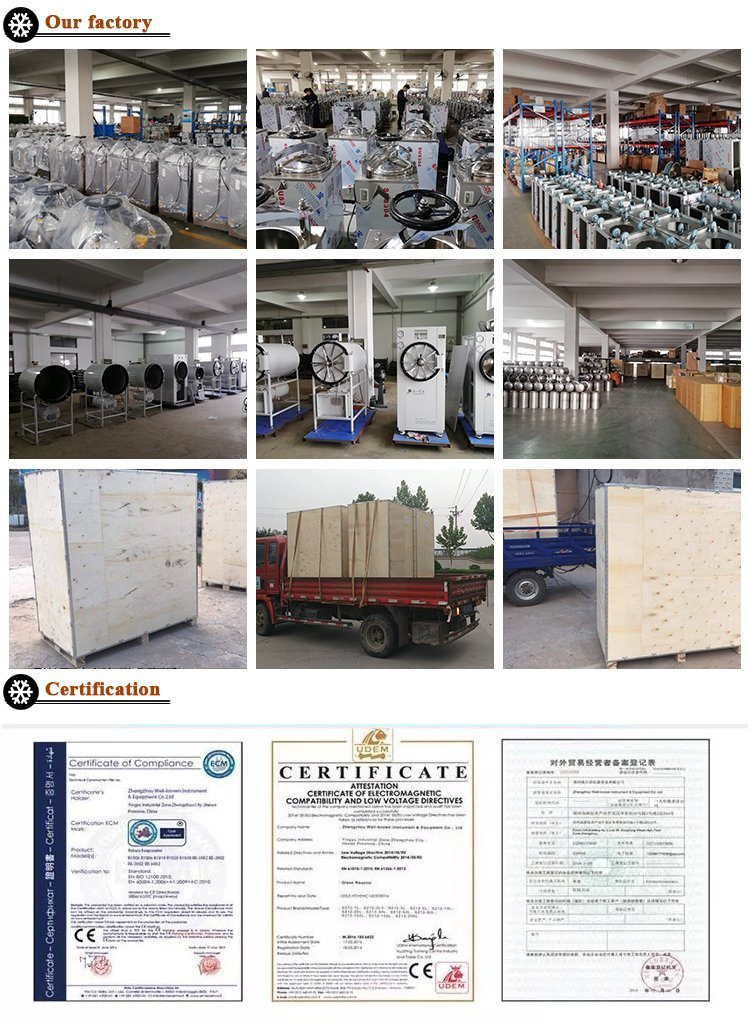

Company information:
Zhengzhou Well-known Instrument & Equipment Co.,Ltd, is a famous manufacturer of Lab equipment located in the centralChina.The main products include rotary evaporator , glass reactor, autoclave machine , low temp cooling liquidcirculating pump and so on. So far, our products have been sold all over Asia, Europe and America, and covered most oflaboratories in China. We have become one of the most popular and trustworthy brands.
Though our foreign trade is not for long, we do have a history of more than 30 years of our domestic trade. To assure thegood quality & good service is our consistent aim.
We welcome new and old customers from all over the world to contact us for future business relationships and achievingmutual success!!
Packaging&shipping:
Packaging
-The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
FAQ:
1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&qualityproblem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find theproblem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
