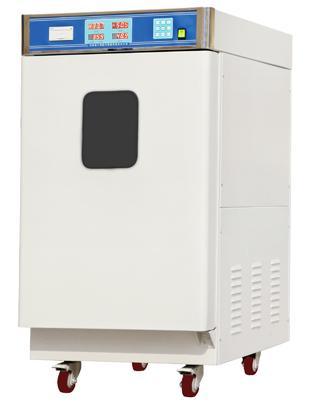

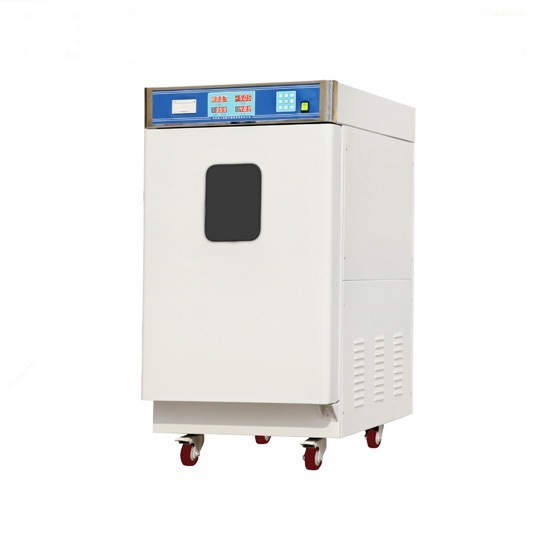

Medical Sterilization Equipment Eto Gas Sterilizer Ethylene Oxide Sterilizer

Model NO.：

TC-M680

Certification：

CE, FDA, EEC, ISO13485

Sanitation Equipment Ethylene Oxide Sterilizer EO/ETO Gas Sterilizer

Product Description

Sanitation Equipment Ethylene Oxide Sterilizer EO/ETO Gas Sterilizer

Model	Chamber size(deep*width*height) cm	Overall size(length*width*height) cm	power
SQ-H80	60X32X45	78X62X110	1.5KW
SQ-H120	60X40X50	78X62X117	2.8KW
SQ-H220	74X50X60	92X72X125	3.0KW
SQ-H360	83X60X73	101X82X138	3.6KW
SQ-H460	96X60X82	114X80X148	4.5KW
SQ-H600	98X68X91	116X88X156	5.3KW

[Product Name]Ethylene Oxide Sterilizer

[Product Type]constant temperature heating box

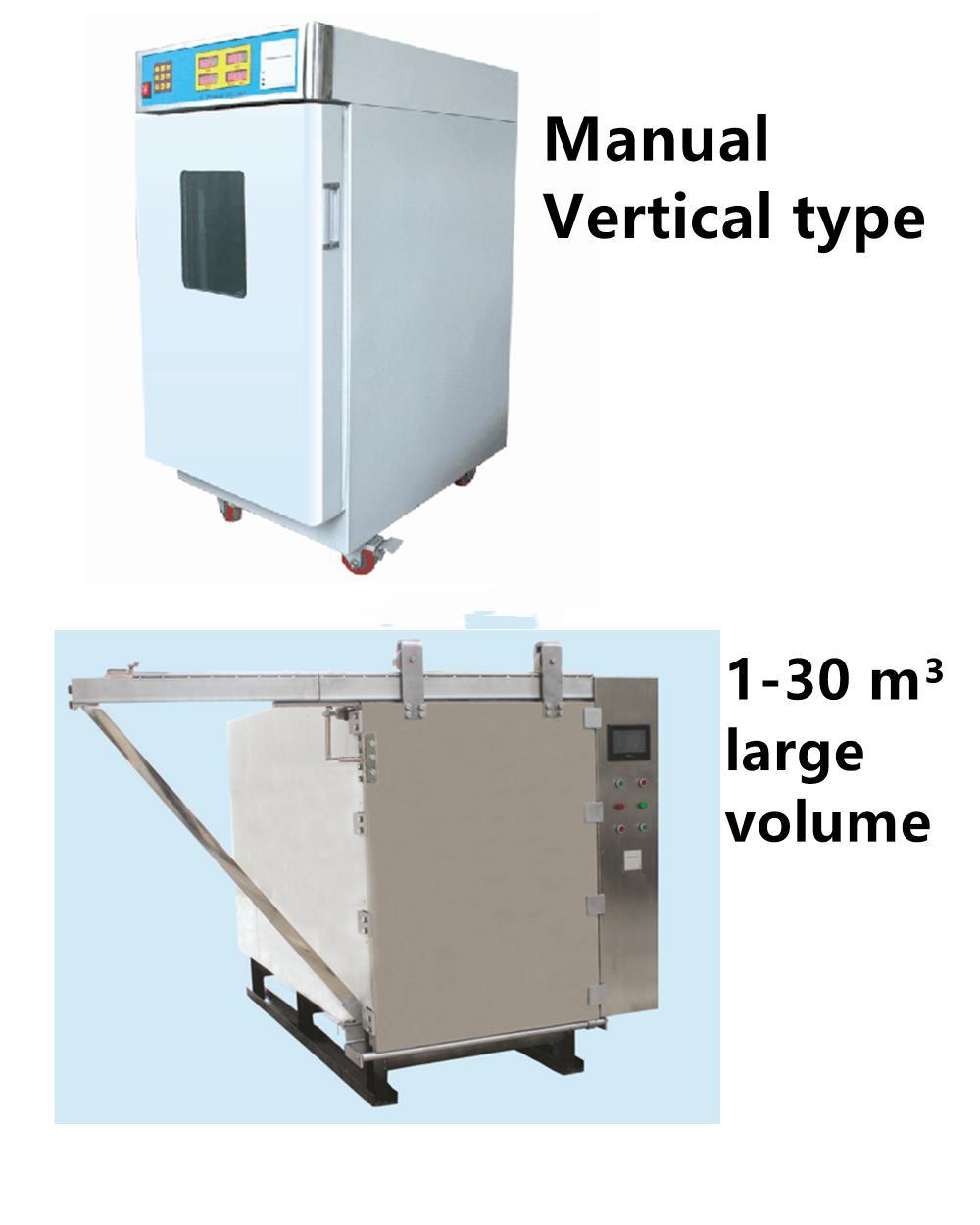

[Product Type]Manual door vertical

[Heating method]electric heating

[Temperature display]LCD digital

[Sterilization room material]304 anti-corrosion type stainless steel

[Outer box material] carbon steel (thickness 1.8mm) baked plastic powder

[Temperature at sterilization]50 ºC ± 3 ºC

[Work pressure]-60kpa

[Maximum pressure value]-140kpa

[Humidity when sterilization]45% -75%

[Selection of gas]pure ethylene oxide

[Ethylene oxide sterilization concentration] 1g / L

[Sterilization time]0-99 hours adjustable

[Vacuum speed]15 minutes to-60kpa

[Air replacement] automatic ventilation, cycle ventilation 3 times, interval 30 minutes once

[Automatic control system]one-button start to the end, the whole process automatically with a print record

[Display status]shows the temperature, humidity, pressure, sterilization time, residual treatment time, the number of times

[Printer] on the whole process of sterilization information record to prepare for verification check.

[Humidity sensor]Built-in humidity sensor automatically detects the cavity humidity, to ensure that the cavity humidity of not less than 45% RH.

[Pressure sensor]Built-in pressure sensor automatically detects the pressure inside the chamber to ensure accurate and effective pressure inside the cavity.

[Temperature sensor]Built-in temperature sensor automatically detects the temperature inside the cavity to ensure that the cavity temperature maintained at 50 ºC ± 3 ºC within the precise range.

[Vacuum system] using oil-free vacuum pump, simple and convenient, fast vacuum rate, long service life.

[Heating system]using explosion-proof electric heating device.

[A variety of protection features] with over-voltage over-temperature protection, residual air automatic processing system, more secure and reliable.

[Wear parts] seals

[Casters] Yes

[Alarm system]has a high and low temperature alarm system

[Category]Medical sterilization equipment

Packaging & Shipping
Company Profile
After 20 years of development, Guangzhou Tyco Medical Equipment Co., Ltd. has successfully helped customers from dozens of countries in the world to purchase various medical equipment and consumables with rich procurement experience and good cooperative relations with manufacturers.





Our Advantages
Our company's business philosophy: customers are God, help customers to purchase the most cost-effective products in China, the same products, we have the lowest price and the best service. Provide factory inspection, documentary, international logistics, customs clearance and other one-stop services.
FAQ

Q1:Can your company provide the OEM ?

Yes,of course . We provide you guaranteed BP monitor in your brand.

Q2: What's the minimum quantity you can accept?

The minimum quantity depend on the product which you buy, we also welcome to place an trial order.

Q3: Packing

We pack the goods in standard export carton or according to your requirement.

Q4.Shipment

We can delivery by sea ,by air . 5)Before delivery ,every one will be inspected by our factory Q.C, and do best to ensure that every one will be good condition before shipment.
