- Model NO.：
- BKEO2C-135
- Certification：
Ethylene Oxide Sterilizer
Features
Features:
* Negative pressure working system: to guarantee in the whole operation process of EO gas overflow, even if there is leakage, and outside air into the cavity.
* Automatic safety monitoring functions: real-time monitoring of the sterilization chamber pressure changes.
* Effective ventilation to remove residual: automatic pulsing exhaust ventilation system, aim to minimize the epoxy ethane residues.
* Safety door interlock:during operation, unable to open the door.
* Two temperature choices: 55 ºC high temperature, 37 ºC low temperature.
* Humidification control system: built-in humidity sensor real-time monitoring.
* Power off memory function
* Electric lift door
Technical ParametersModel | BKEO2C-135 | BKEO2C-225 |
Chamber Size (W*D*H)mm | 750*450*400 | 1250*450*400 |
Overall Dimension(W*D*H)mm | 950*860*1730 | 1450*860*1730 |
Chamber Volume(L) | 135 | 225 |
Consumption | 3.5kW | 4.5kW |
Power Supply | AC110/220V±10%, 50/60Hz | |
Standard Accessories | Stainless steel basket*2 units, EO gas can*3 units, printer | |
Package Size(W*D*H)mm | 1100*950*1950(Main body) 1000*650*550(Accessories) | 1650*1000*2050(Main body) 1550*500*530(Accessories) |
Net Weight(kg) | 300 | 400 |
Gross Weight(kg) | 350 | 450 |
| EO gas can(Optional) | ||
| Model | Z-100 | V-170 |
| Size(mm) | φ50*150 | |
| Net Weight(g) | 100 | 170 |
| Suitable Sterilizer | BKEO2C-135 | BKEO2C-225 |
| Sterilization Concentration | 735mg/L | 750mg/L |
Automatic lifting trolley(Optional) | ||
Model | T-100 | T-200 |
Loading Platform Dimension(W*D)mm | 800*400 | 1300*400 |
Overall Dimension(W*D*H)mm | 1150*780*1165 | 1650*780*1165 |
Sterilization Concentration | 735mg/L | 750mg/L |
Lifting Range | 720~1220 | 720~1220 |
Max.load Capacity (kg) | 100 | 150 |
Net Weight(kg) | 55 | 70 |
Gross Weight(kg) | 75 | 95 |
Suitable Sterilizer | BKEO2C-135 | BKEO2C-225 |

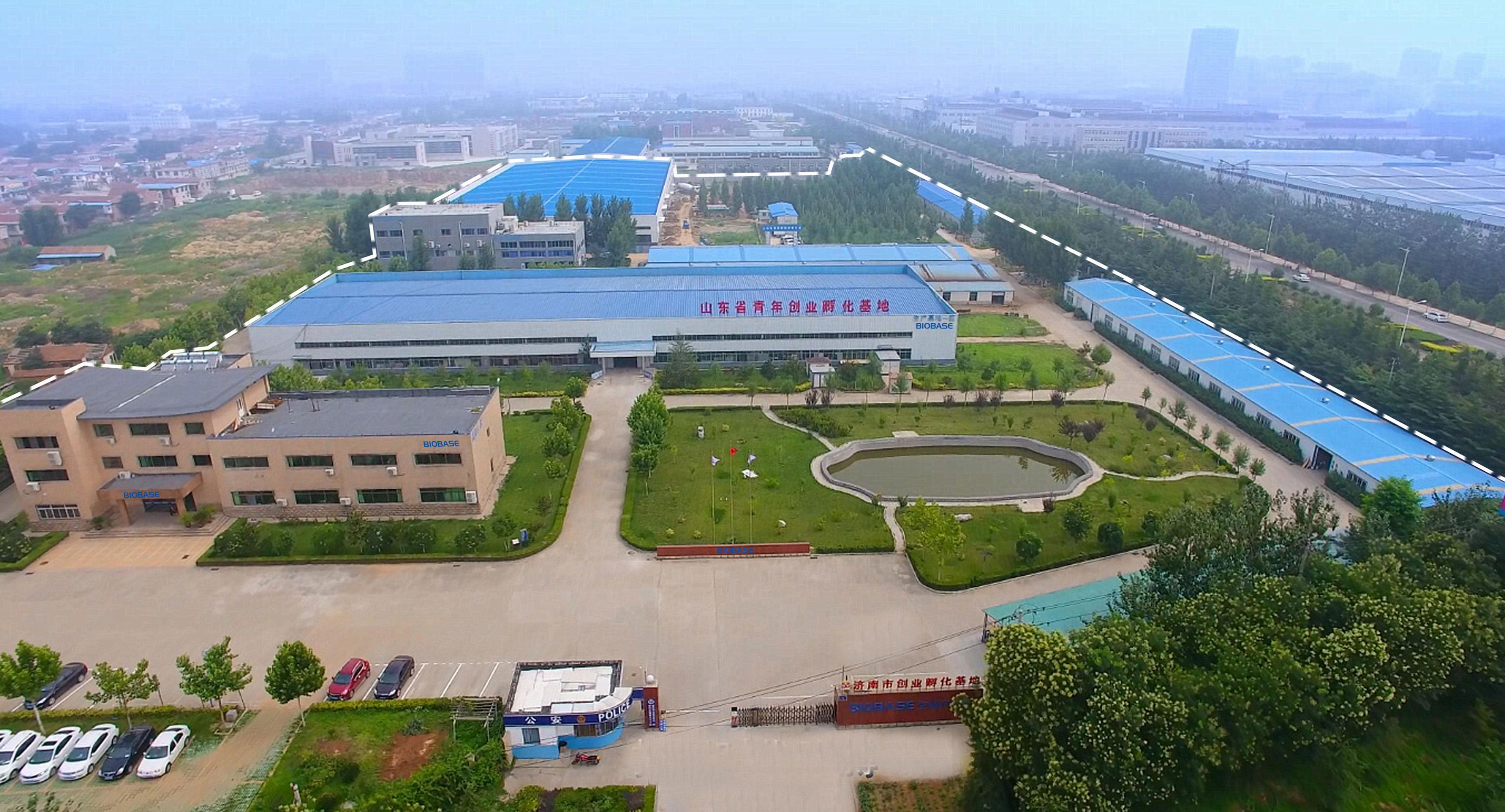

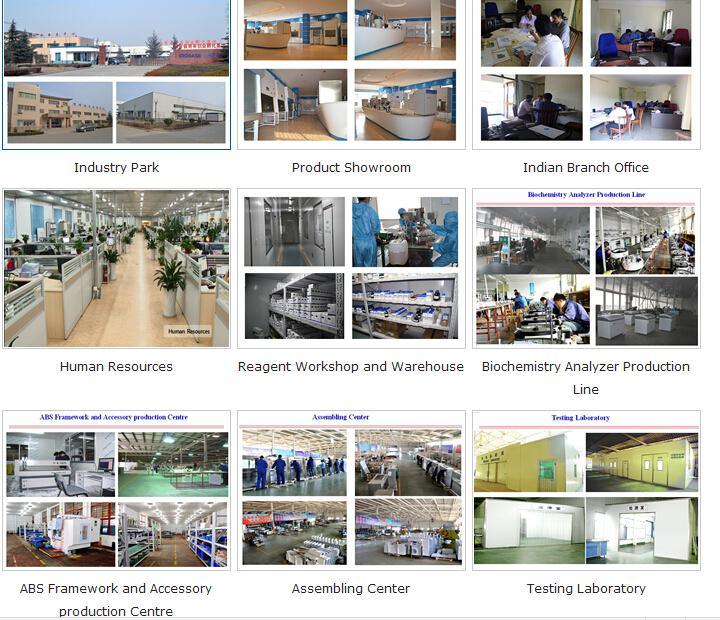

Factory Views:
Founded in 1999, BIObase Group having over 2000 employees (till August, 2018), BIObase Group is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.
BIObase Group is specialized in products of 8 areas including medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.
