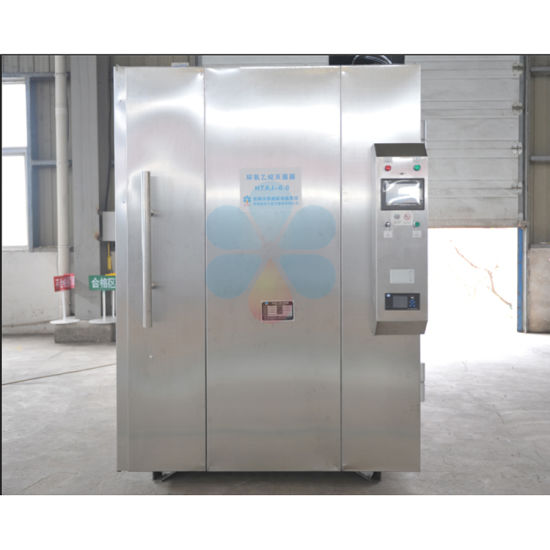

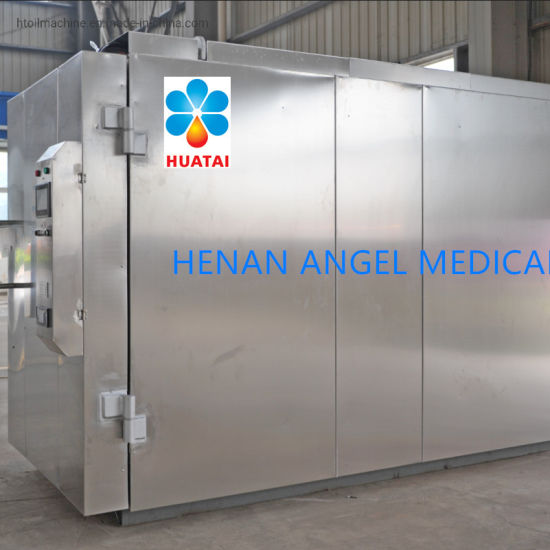

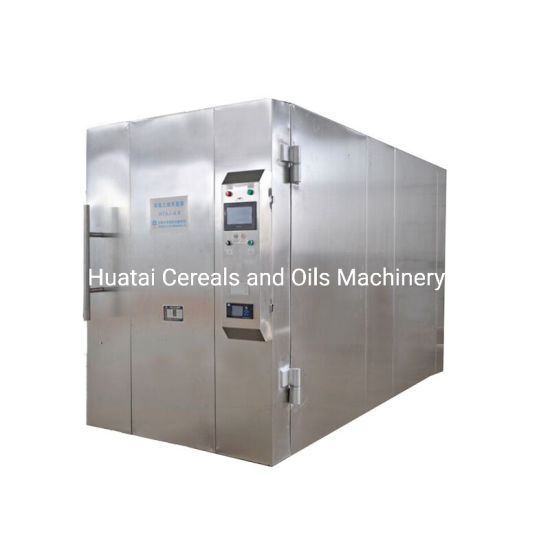

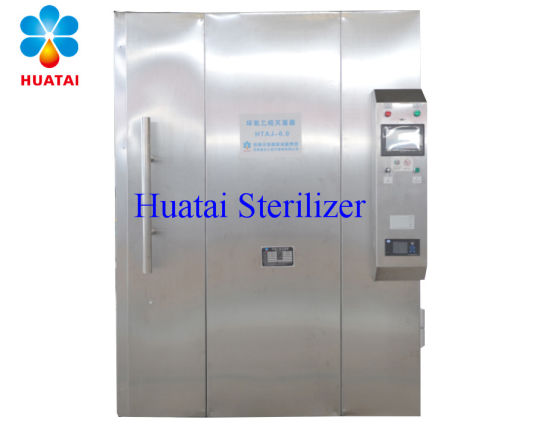

Ethylene Oxide Sterilizers China Sterlizer Ethylene Oxide Sterilization
HTAJ series ethylene oxide sterilizer is designed based on the advantages of similar products at home and abroad,
using advanced computer technology,automation technology, welding technology and process design.
Angel's ethylene oxide sterilizer isan intelligent all-in-one machinewith intelligent one-buttonoperation, which is mainly
divided into three stages:
Pre-treatment stage (reach theoptimal environment beforesterilization)
Sterilization stage (time can beadjusted)
Compulsory elimination ofethylene oxide gas residual stage(freely adjustable the number oftimes)
3 M heating material
1.Intelligent all-in-one machine, touch screen, one-button sterilization
2.Artificial intelligence operation platform, integration of all platforms AIO machine
3.Using 3 M electric heating material
4.Low power, energy saving, safe and efficient
5.The cabinet is made of SS 304 plate with 6MM thickness6.Safety,with mandatory residual gas emission and filtration function
Installation:
1.Connect the power, connect the main wire from power distribution cabinet;
2.Connect the air hose,connect the air hose of sterilizer to air compressor or air tank;
3.Connect water inlet, connect water inlet pipe with water supply;
4.Connect water and air drainage pipe to sewage outlet;
5.Connect overflow pipe to sewage outlet;
6.Connect dosing pipe, from dosing inlet to ethylene oxide bottle, dosing pipe is stainless steel hosepipe.
Technical characteristics
HTY series ethylene oxide sterilizer is aspecial equipment for low-temperature fumigation and sterilization of articles sealed in the
sterilization room under acertain temperature, pressure, humidity and acertain action time with the mixture of pure ethylene oxide
and ethylene oxide. Ethylene oxide gas is avery active
chemical disinfectant, which can not only achieve broad-spectrum sterilization, but also achieve areliable sterilization effect.
Product Specification
| Model | HTAJ-2cube | HTAJ--3cube | HTAJ-6cube |
| Rated power | 9KW | 12KW | 18KW |
| Liner specifications length * width * height (mm) | 1500*1000*1400 | 1700×1200×1500 | 3000*1200*1700 |
| Liner specifications length * width * height (mm) | 2400*1300*1800 | 2600×1500×1900 | 3950×1570×2190 |
| Working pressure | -60Kpa~0 | -60Kpa~0 | -60Kpa~0 |
| Adjustable range of working temperature | 30ºC~50ºC | 30ºC~50ºC | 30ºC~50ºC |
| Working humidity | 30%‐80% | 30%‐80% | 30%‐80% |
| Sterilization time | 3-99 hours adjustable | 3-99 hours adjustable | 3-99 hours adjustable |
| Disinfection room | anticorrosive SS304 | 304 anticorrosive stainless steel | 304 anticorrosive stainless steel |
| Weight | 1500kg | 2000kg | 3200kg |
| Model | HTAJ-10cube | HTAJ-15cube | HTAJ-20cube |
| Rated power | 24KW | 30KW | 35KW |
| Liner specifications length * width * height (mm) | 4000*1500*1800 | 5800×1500×1800 | 6000*1750*1950 |
| Liner specifications length * width * height (mm) | 4950*1870*2350 | 6750×1870×2350 | 6950×2120×2450 |
| Working pressure | -60Kpa~0 | -60Kpa~0 | -60Kpa~0 |
| Adjustable range of working temperature | 30ºC~50ºC | 30ºC~50ºC | 30ºC~50ºC |
| Working humidity | 30%‐80% | 30%‐80% | 30%‐80% |
| Sterilization time | 3-99 hours adjustable | 3-99 hours adjustable | 3-99 hours adjustable |
| Material of disinfection room | 304 anticorrosive stainless steel | 304 anticorrosive stainless steel | 304 anticorrosive stainless steel |
| Weight | 4600kg | 6500kg | 8000kg |
Our advantages
Advantage of Angel ethylene oxide sterilizer
Simple operation: one-button operation, microcomputer control, simple and convenient, digital display of sterilization process.
Print records: Record and print sterilization information for sterilization process, which is convenient for verification and archiving.
Filtration system: The air inlet is equipped with afiltration system, which can effectively filter out germs and microorganisms
and avoid secondary pollution during exhaustion.
(1)Installation requirements of ethylene oxide sterilizer:
1)The ethylene oxide sterilizer must be placed in awell-ventilated place, and it must not be placed near afire source.
2)In order to facilitate repair and regular maintenance, 51cm space should be reserved on each side (including the top) of the
ethylene oxide sterilizer.
3)Special exhaust pipes should be installed and completely isolated from other exhaust pipes of the building.
(2)Ethylene oxide safety protection principles and precautions:
1) Keep ethylene oxide sterilizers and cylinders or cans away from sources of ignition and static electricity.
2) Ethylene oxide storage should be free of ignition sources, no rotating motor, no sun, good ventilation, and the temperature is
lower than 40 ºC, but it should not be placed in the refrigerator. Dispose of in strict accordance with the relevant national storage
requirements for flammable and explosive materials.
3) Do not use too much force when administering or opening the bottle, so as not to spray the liquid.
4)Monitor the air concentration of the ethylene oxide working environment every year.
5)Ethylene oxide staff should be trained in expertise and emergency management.
Company Information
Henan Angel Medical Instruments Co., Ltd. is awholly-owned subsidiary of Henan Huatai Intelligent Equipment Group.
The group is acomprehensive group company integrating R& D, manufacturing, sales and installation of cereals and oils machinery,
medical instruments and environmental protection equipment.The Group relies on aggregating professionals in the field of medical
equipment, concentrated technical forces to invest in research and development, and rapidly rises in the medical field.
With great investment in research and development and innovation, the company has achieved aseries of results in the related fields
of ethylene oxide sterilizers. Combined with the 5G intelligent AI platform to realize the intelligent operation of the equipment,
the simplicity, safety, and sterilization effect exceed the customer's requirements. We always treat our customers with ahigh standard
and aresponsible attitude. The corporate philosophy of being aperson first, and then acting, has laid asolid foundation for the group
company to deepen its cultivation in the medical device industry.
Application
Application range of ethylene oxide sterilizer produced by Angel
1. Regional therapy equipment: cardiac pacemaker, artificial heart, dialyzer, aspirator, oxygenator interchangeable
element,automatic engineering changer, replacement line, replacement needle, artificial esophagus, artificial bone, artificial
blood vessel, etc.
2. Endoscopy: laryngoscope, bronchoscope, esophageal fiberscope, mediastinoscope, cystoscope, The urethra mirror, and
thoracoscopy.
3. Rubber products: gloves, finger cots, syringes, injection needles, blood collection devices, infusion sets, urine collection
bags, biological hoses, nasal hoses, catheters, hoses, birth control equipment, etc.
4. Medicine: some Chinese and Western medicines, and some cosmetics.
5. Textiles and biological products: cotton wool chemical fiber clothing, blankets, carpets, gauze, bandages, dry silk balls,
cotton swabs, absorbent cotton, dressings, towels, leather, fur products, etc.
6. Cultural relics files: paper currency, tickets, medical records, files, letters, historical relics, silk satin products,animal
and plant specimens, etc.
7. Instruments: electronic instruments, optical instruments, telephones, etc.
8. Hygiene products: sanitary napkins, napkins, disposable sanitary tableware, etc.
Business scope
Ourmachinessellwellinmorethan30provinces,andexportedtoEgypt,Sudan,Tanzania,Rwanda,Nigeria,
Estonia,Russia,Kazakhstan,Uzbekistan,Tajikistan,Bangladesh,Thailand,Malaysia,Indonesia,Bolivia,Peruandsoon.
Nowwehavedevelopedinto amajoroilmachinerymanufacturebaseinChina.
Our certification
Packing and delivery
Exihibition
Why choose us?
Q: Our company payment method?
A: 30% deposit and 70% balance before delivery.
Q:Do you inspect the finished products?
A: Yes, each step of production and finished products will be inspect by QC department before shipping.
Q: Are you a manufacturer?
A: Yes,we are the professional manufacturer set up in 1970.
Q:Can we visit the factory ?
A:Of course, we highly welcome clients come to our factory ,it will be our great honor to meet you.
Q:How can you guarantee the quality ?
A:100% qualified products before delivery. The clients can inspect the product at our factory. 1 year warranty, lifetime provide
the spare parts.
