- Model NO.:
- HS-A
- Certification:
- CE, ISO13485
ntent="" style="background-color:#f2f2f2;padding:0px 10px;margin:0px;line-height:36px;text-align:left;">Product Description

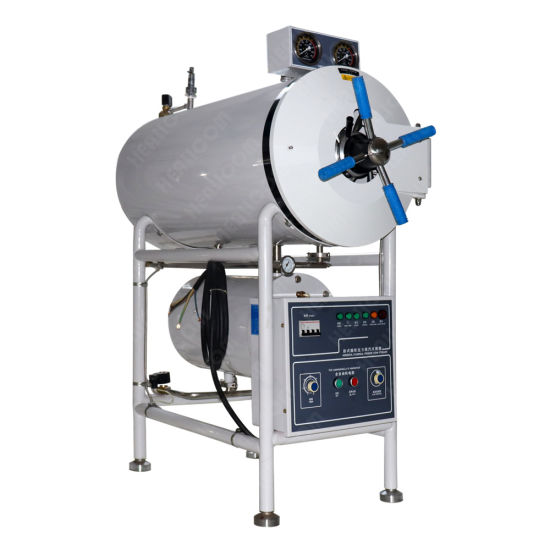

150L 200L 280L 400L 500L Horizontal Cylindrical Pressure Steam Autoclave Sterilizer
Characteristics
• Automatially controlled the sterilizing process, easy to operate.
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.
• The chamber of the sterilizer is made of stainless steel.
Technical Specifications | |||||
Model | HS-150A | HS-200A | HS-280A | HS-400A | HS-500A |
Sterilizing chamber volume | 150L φ440×1000 | 200L φ515×1000 | 280L φ600×1000 | 400L φ700×1100 | 500L φ700×1300mm |
Working pressure | 0.22Mpa | ||||
Working temperature | 134ºC | ||||
Temperature adjust range | 40ºC-134ºC | ||||
Time for sterilization | 0-60min | ||||
Time for drying | 0-60min | ||||
Heat average | ≤±2ºC | ||||
Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz | 18kw/380V 50Hz | 18kw/380V 50Hz |
Dimension(mm) | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
Package dimension(mm) | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
G.W/N.W | 320/240kg | 350/260kg | 465/365Kg | 530/420Kg | 580/470Kg |
ntent="" style="background-color:#f2f2f2;padding:0px 10px;margin:0px;line-height:36px;">Detailed Photos
ntent="" style="background-color:#f2f2f2;padding:0px 10px;margin:0px;line-height:36px;text-align:left;">Customer evaluation
ntent="" style="background-color:#f2f2f2;padding:0px 10px;margin:0px;line-height:36px;text-align:left;">Company Profile
ntent="" style="background-color:#f2f2f2;padding:0px 10px;margin:0px;line-height:36px;text-align:left;">FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
