Model NO.：

KLD-MDS

Certification：

Tunnel Microwave Sesame Quinoa drying sterilizing Sterilization Machine Equipment

Compared with the traditional chili powder dryer, the tunnel chili powder dryer has more advantages:
1. Selective heating. Utilizing this feature can achieve uniform heating and uniform drying, the heat treatment is transparent, and the effect is thorough.
2. Low energy consumption and high efficiency. The microwave directly acts on the material, so there is no additional heat energy loss, high thermal efficiency, and the production environment is significantly improved. Compared with far-infrared heating, it can save electricity by 30%.
3. Short time and fast speed. Microwave heating is a process in which the object to be heated becomes a heating body without heat conduction. The object can be uniformly heated in a short time, and the drying time is shortened.
4. Easy to control and advanced technology. Compared with the conventional method, the device is ready for use; there is no thermal inertia, and the operation is flexible and convenient; the microwave power is adjustable and the transmission speed is adjustable. In microwave heating and drying, there is no waste water and no waste gas, which is a safe and harmless high-tech.
Samples



Applications:
1.chemical material,medicine tablet or pill,such as watered pills,water-honey bolus,honeyed bolus,condensed pill and Tibetan pill,etc.

2.all kinds of teas,herbs, flowers, green leaves,etc.

3.various dried meat, like beef, pork, chicken,duck, fish etc.

4.powder for various material,such as spices, other food additives.

5.agricultural products,such as china date,nuts,grains,peanut,etc

6.snack food, fruit seeds, grains, peanuts, chips,etc.

Technical equipment

Equipment Model	KLD-Microwave Drying Equipment	KLD-Microwave Drying Equipment
Operating frequency	2450±50MHZ	2450±50MHZ
Rated inputapparent power	≤60KW	≥120KW
Microwave output	≥50KW	≤110KW
Temperature	30-100ºC(controlled)	25-80ºC(controlled)
Type of cooling	Water-Cooling/Air cooling	Water-Cooling/Air cooling
Inlet and outlet height	40-100mm	40-100mm
Height of conveyor	600-1000mm	600-1000mm
Tranmission speed	0~10m/min(adjustable frequency)	0~10m/min(adjustable frequency)
Dehydration Rated	40-50KG/hour	40-50KG/hour
Contour dimension	12500mm*1600mm*2200m (customized)	12500mm*1600mm*2200m (customized)
Width of conveyer belt	750±100mm(customized)	1000±100mm(customized)
Microwave leakage standard	ISO≤5mw/cm²	ISO≤5mw/cm²

Detailed Images

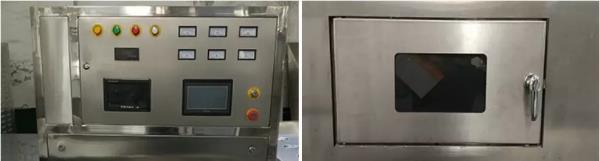

Control box Observation window

The conveyor belt and opening can be adjusted according to your needs.

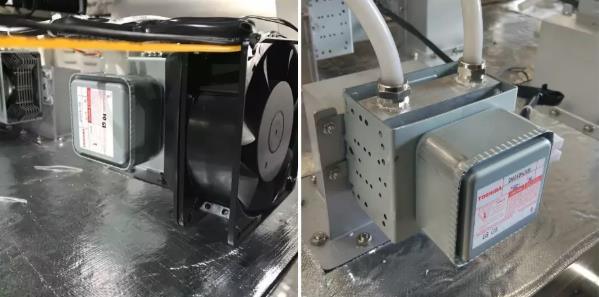

Air cooled magnetron Water cooled magnetron

Certifications



Packaging &Shipping

1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film. Finally pack them with wooden case.

2)Customer's requirement is available.

3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code, house number, street, city, country); by ship-please tell me your delivery port.

Company Information

Jinan Kelid Machinery Co., Ltd.Is aprofessional supplier of microwave oven.Our company's motto is:"technology makes easy".We offer to cooperate with our customers for mutual and beneficial development.

FAQ

1. What's the materils?

Answer: Stainless steel

2. How long is your gurantee time?

Answer: One year after comissioning.

3.How is the installation?

Answer: When the machine arrives at the your workshop, we send 2engineers to install the machine and teach the workers how to use. There be aoperate mannual and Equipmentmaintenance manual.

4.How is the payment?

Answer: 40% TT as downpayment, 60% TT or L/C before shippment. Before shippment,welcome to inspect the machine.

Contact us

Any inquiry or question, feel free to contact me! Iwill reply you as soon as Ican!
