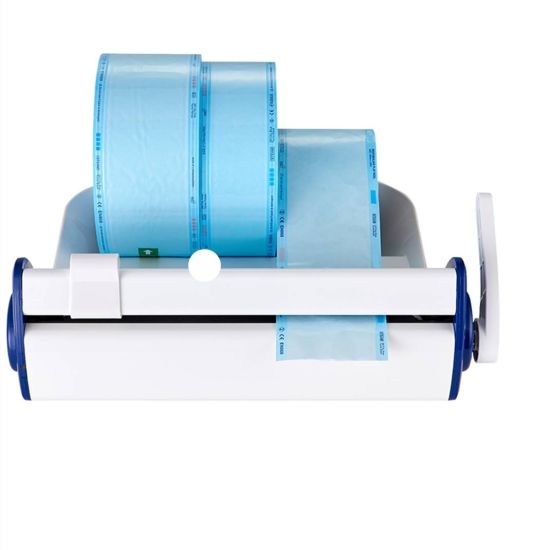

Dental Heat Sterilization Sealing
- Model NO.：
- Topeak-SM101
- Certification：
- ISO9001, ISO, CE
1.Fuction :
Seal sterilization reel or pouch
2. Main characteristics
1).Auto-control function, continuous operation; substitution of manual sealing machine;
2).Temperature controlled by a microcomputer, accuracy ±1%, working temperature range 60~220ºC;
3).Fast heating, 40 seconds required from room temperature to 180ºC;
4).Adjustable fixed-force system, suitable for sealing paper-plastic bags, 3D paper-plastic bags and paper-paper bags;
5).Advanced flat ceramic heating components, high-temperature stability, long life expectancy and high heat efficiency.
3.Specification
Sealing speed 10m/min; Automatic controlled by sensor. Power: 500W
Seal width 12mm; Voltage: 220V 50Hz(optional)
Dimension: 482×242×157(mm)
Seal margin: 0~35mm adjustable;
Weight: 12kg
4. Model No| Product Name | Automatic sealing machine for sterilization reel | |||
| Model No. | Topeak-SM101 | |||
| Function | Sealing sterilization pouches | |||
| Shell Material | Carbon Steel with painting | |||
| Seal Width | 12mm | |||
| Sealing Speed | 10±0.5m/minute | |||
| Seal Margin | 0-35mm (Adjustable) | |||
| Working Temperature | 60°C to 220°C | |||
| Grade | Automatic by High Speed | |||
| Power | 500W | |||
| Voltage | 110/220V~50/60HZ for optional | |||
| Power Cord | EU, UK, USA standard for option | |||
| Warranty | 1 year | |||
| Dimension | 482*242*157mm | |||
| Package | Inner polyBag+Foam+Export Carton | |||
| Package size | 600*380*270mm | |||
| Gross Weight/Net Weight | 13.5/12kgs | |||
Topeak Medical is here for you ,It is pleasure to get your inquiry .Hope there are chance to cooperate with your company and work together !
