Extract products:
This Extraction Equipment Line suits for extraction of herbal material, such as rose oil, zedoary turmeric oil, star
anise oil, litseacubeba oil, patchouli oil, peppermint oil, lavender oil, herbal extarction, and beverage extraction.

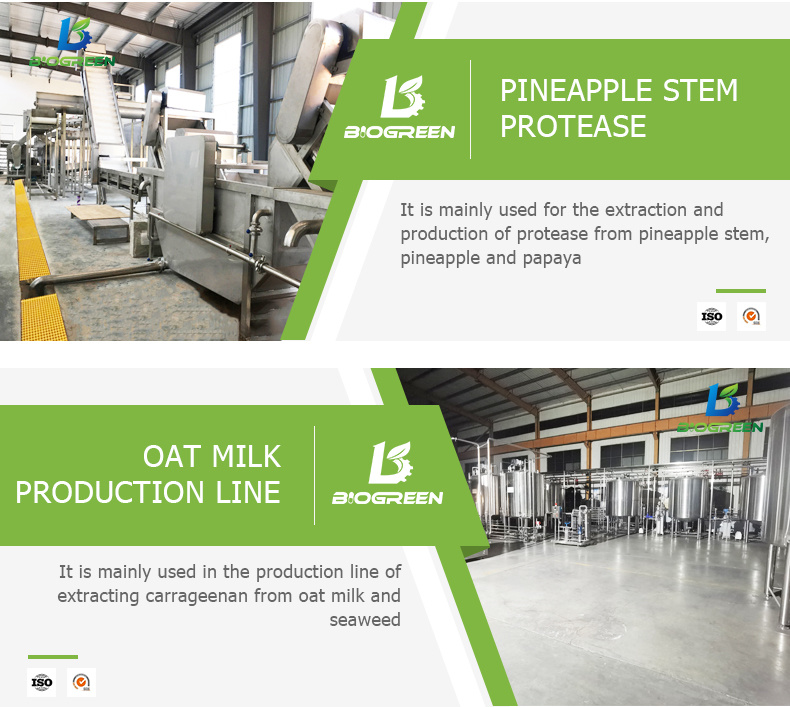

Hemp extraction , Oat milk processing Pineapple stem protease.It is easy for operating and with
high oil extraction rate. It meets for GMP standard.
Application industry:
It is suitable for traditional Chinese medicine, plant, animal, food and chemical industries, such as normal
pressure and pressure water decoction, warm extraction, heat reflux, forced circulation, percolation, aromatic oil
extraction and organic solvent recovery process, especially the dynamic extraction or countercurrent extraction
effect is better, short time, high concentration.
Components:

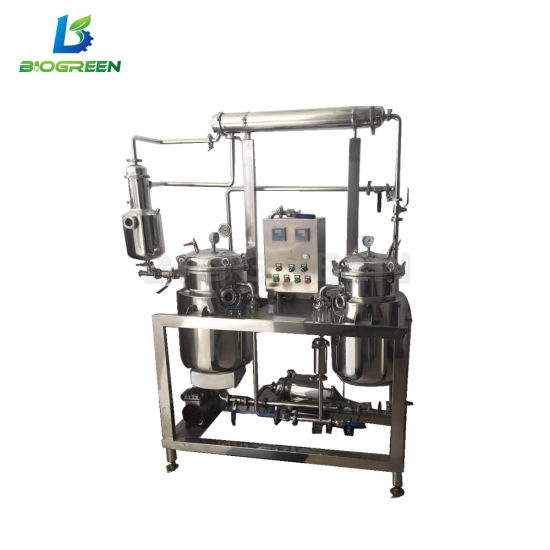

Theextraction agitating tank is composed of an extractor, defoaming device, condenser, cooler, oil-water
separator, agitator, material pump, filter, valve and pipeline.
The main body of theextraction agitating tank consists of an inner cylinder, a jacket layer, a heat insulating layer,
a branch ear, apneumatic slag discharging gate, and a heat insulating layer of the extracting tank,and the
aluminum silicate rock wool is used as the heat insulating material, the inner cylinder body is SUS304/316L.
The tank is equipped with CIP cleaning ball, thermometer, explosion-proof sight lamp, quick opening feed
gate, etc..
Characteristics:
1. The slag door structure adopts closed cylinder slag door,there are two cylinder pushing turn solid rotation
aside, thread structure which make its multi wedge block drive the door lock up slag, slag door and tank flange
platen close and seal well, with high safety factor.
2. Material discharget pipe adopts stainless steel pipe, liquid outlet joint is sealed reliably, avoiding the fatigue
stress of the metal hose and affecting the frequent breakage and leakage.
3.Complying with (GMP) standard requirements.
| Model | BD-10 | BD-20 | BD-30 | BD-50 | BD-100 | BD-200 | BD-300 | BD-500 | BD-1000 |
| Volume | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 |
| Material | Stainless steel 304 / 316 / high borosilicate | ||||||||
| Stirring power | 200W | 370W | 370W | 550W | 1100W | 3000W | |||
| Condensation system | Tube condenser + coil cooler | ||||||||
| Concentration method | Single effect concentration / vacuum concentration tank / ball concentrator / scraper concentration | ||||||||
| heating method | Electric heating | Electric / steam heating | Steam heating | ||||||
| Vacuum | -0.03~0.09 | ||||||||
| Steam consumption | 0 | 18KG/H | 35KG/H | 70KG/H | 120KG/H | 200KG/H | 250KG/H | ||
| Expandable function | Organic solvent explosion-proof extraction, Soxhlet extraction, ultrasonic extraction, valve automation, automatic pin bubble function, online concentration detection function | ||||||||
Stainless SteelDynamic Extractor Residue Discharging Door
1 Rapid open safety type residue discharging door
The tank cover can be automatically opened and closed. It adopts three-cylinder control and is provided with
safety device to avoid accidental operation and provide high safety factor. It is suitable for use in small and
medium-size reside discharging vent.
2 Rotary type residue discharging door
The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be
achieved in the swivel type product. It provides more selection for extracting technology. It can also meet some
special technological requirements. With good safety guarantee functions and the extracting tank has no leakage.
3 Large-diameter residue discharging door
The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be
realized to provide more selection for extracting technology. With high safety factor, the residue discharging door
is suitable for residue discharging of large-diameter upside-down type extracting tank.
4 Another option of liquid discharging in the extraction agitating tank
(1) The filter board at the bottom of the extracting tank is made of two layers. The first layer is a 5-6mm thick
stainless steel sheet with a thickness of 0.6mm thick is at the top of this supporting layer, and long holes of
0.5*10mm are spread over the stainless steel sheet. The long holes are comparably not easy to be blocked.
(2) According to material requirements of customers ,the filter barrel is installed on the internal bladder or the
extracting tank. Vertical grain type filter screen can be adopted. The filtering area of the filter barrel is several times
higher than the bottom area, which can solve the problem of blocking and difficult liquid discharging at the bottom
of the extracting tank.
