- Model NO.：
- VPD-250
- Certification：
Note:
The machine is one of the world's most advanced paper , non-woven packaging equipment.We make design of the machine according to the world advanced paper and nonwoven packaging machinery technology..
Application range:
It is suitable for Four-side sealing of wet wipes, alcohol swab, and pad, disinfect cloth, etc.
Main performance and structural features:
1, The machine work steadily and continiously, It is suitable for four-side sealing products of all types wet wipes/tissue, alcohol swabs/pad and so on
2, Single bag or two bags in row can be setted freely (Max four bags in row for alcohol swabs).
3, Full automatic pouch forming, photo electricity correction, no blank edge and fault forming
4,The tissue can be folded in different types. max 8 folding vertical, and 4 folding horizontal, fold freely by unfold nonwoven width, length.
5, Adopts Japan imported spray pump, make it accurate adding with tolerance of 0.01ml/time. Multical kinds of liquid are available. it can add per liquid per bag or add all the liquid in the same bag
6, Double times sealing better to ensure the liquid adding volume and avoid leaking.
7, The machine is easy to operate, PLC touch panel, could adjust the packing temperature and speed according to the packing material,product's thickness and length. servo motor. controlled by light, electric and air power, failures can be self- diagnosised and displays clearly.
8, The full machine is covered with Stainless steel in good appearance, also easy to clear and durable. Low operation and maintenance cost.
9, The Confined glass cover, to avoid contamination , less noise !
10, The Sealing molds is made by aluminum alloy , have a very high thermal shock resistance, do not thermal deformation.
SPECIFICATIONS:
| Item | VPD250 |
| Packaging form | Horizontal Four-side sealing |
| Packing material | CPP film,PE film,BOPP film |
| Packing Length | 40-125mm(can be customerized, max 220mm) |
| Packing Width | 40-110mm(can be customerized) |
| Maximum packing dimensions | L220mm×W110mm |
| Packing speed | 60-160bags/minute |
| Total power | 2.8KW |
| Power supply type | 220V 50/60Hz |
| Machine noise | ≤64.9dB(A) |
| Air supply | 0.6-1.0 MPa |
| Air consumption | 300-500mL/min |
| Outline dimensions | L2800×W2800×H1800mm |
| Machine weight | about1100Kg |

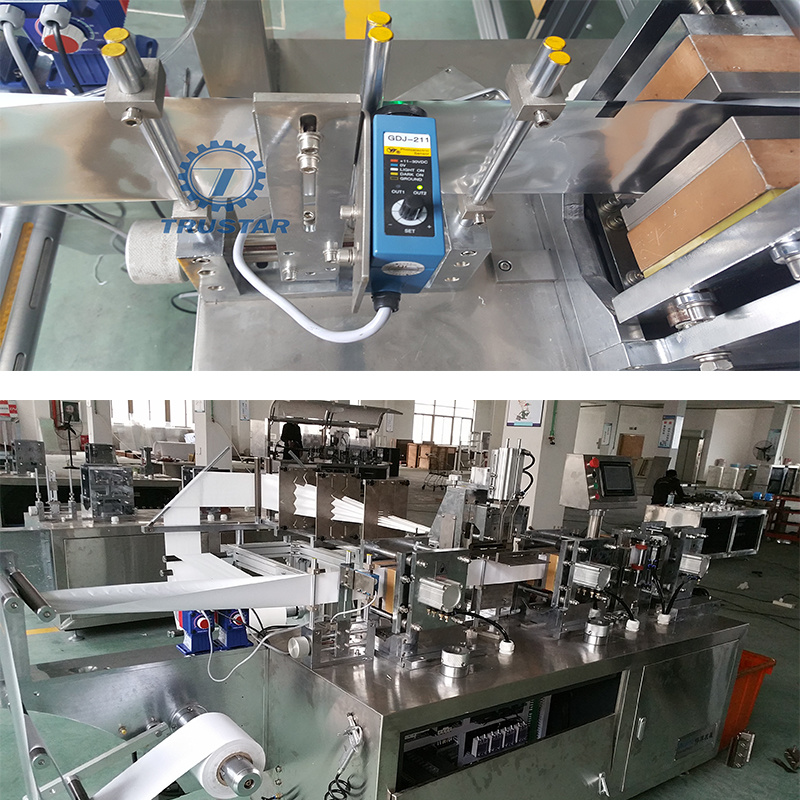

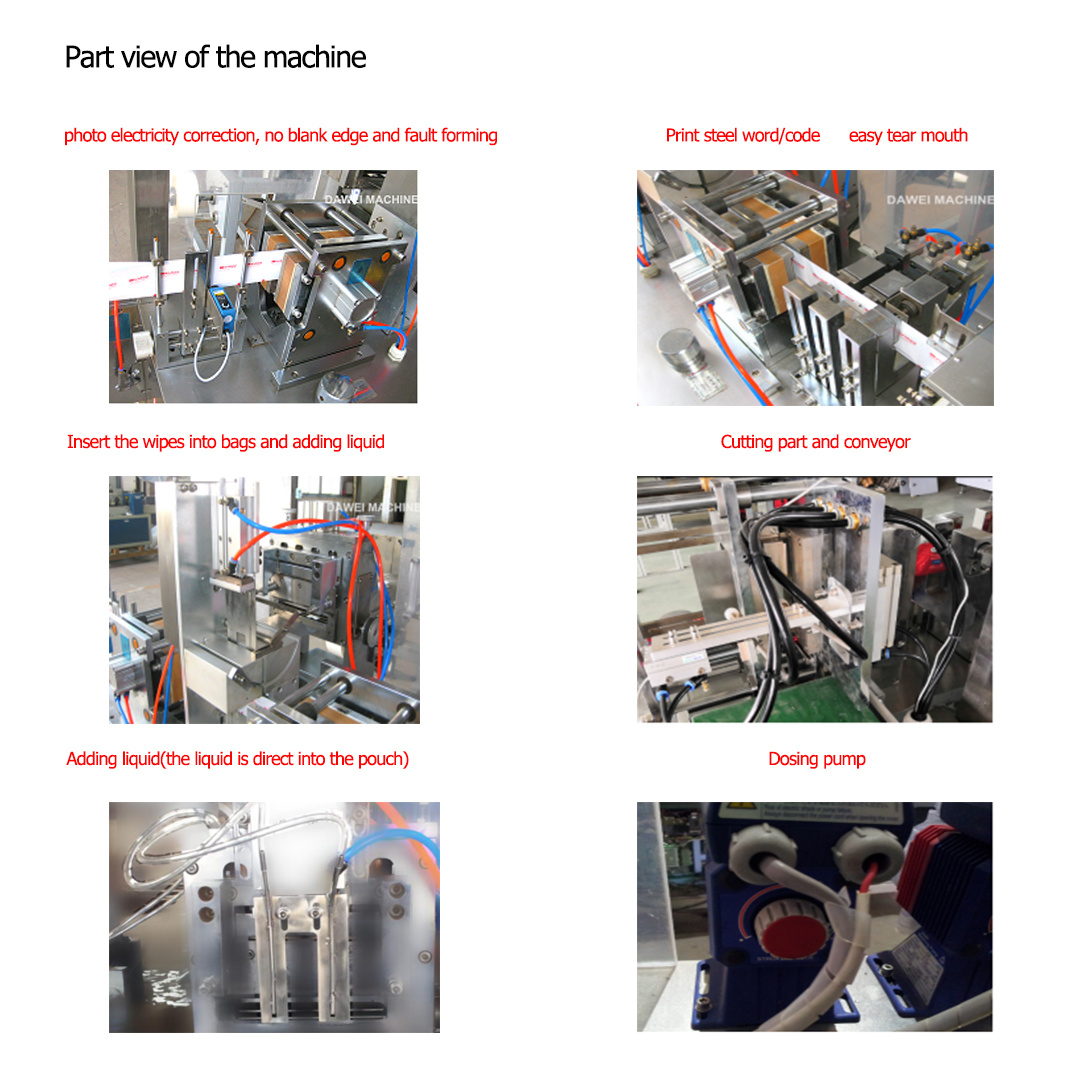

Sample Pictures:
Others
1) Payment terms:50% by advance payment and 50% before machine delivery.
2) Delivery time:20 working days after receiving the advance payment and confirm the mould drawing.
3) Packing:Sea worth wooden case.
4) Port of loading :Ningbo or Shanghai port /China
5) Origin:People's Republic of China
6) Spare parts free for one year (please see spare parts list ).
7) Warrant term:One year guarantee totally free of charge, whole life maintenance.
8) Installing &Commissioning
Installation will be done by our technicians( if needed) after the machine placed at the site.All the utilities like water electrical will be connected by you.We shall depute our technicians after receiving your confirmation for the pre installation readiness.All our expenses including round -trip air ticket to the nearest airport, local conveyance to your factory ,Lodging &Boarding expense shall be paid by you.In case the stay of our technician, the service charge at US$100 per day will be charged extra.
9) Price Validity:One month
10) Warranty period
The seller makes guarantee that the machines are new (or unused) and the guarantee period will be 12 (twelve) months, which starts from the date of the machine's arrival.During this Warranty period, the seller will provide free spare parts that cause by the machine's quality within 10 days by fast courier upon receipt of buyer's notice, with one condition that the freight will be affected by the buyer.If required for more spare parts additionally, the seller will arrange to have them got ready within 10 days on the buyer's account.
about us
1.Our company
Trustar Pharma &Packing Equipment Co., Ltd Culture
Work style:Solid credibility, authority and reliable;
Enterprises purpose:Integrity services to customers, aservice win customers;
Teamwork:Win-win team the importance of care and mutual benefit, work with
Progressive;
Market concept:The interests of users is always what Trustar pursuit;
Dealers coexistence with the principles:Mutual benefit and common development;
2.Frequently Asked Questions (FAQS)
What if there are some complicate problems about machines after buying them?
Contact with us by email or telephone, even we can go to visit you with our
Technician if it necessary.
What's your advantage about your products?
Good quality with favorable price, produce equipment according customer's
Requirements.
What are kinds of pharma machine fall within the scope of your business activities?
Main in Pharmaceutical solid dosage machine from RMG, Fluid Bed Dryer, Tablet
Press, Tablet Sugar/Film Coating machine, Blister packing machine, cartoner
And etc.
Other questions or comments?
Please contact us online or call us.
