The1year
- Model NO.：
- HTAJ-20
- Certification：
- CE, FDA, EEC, ISO13485

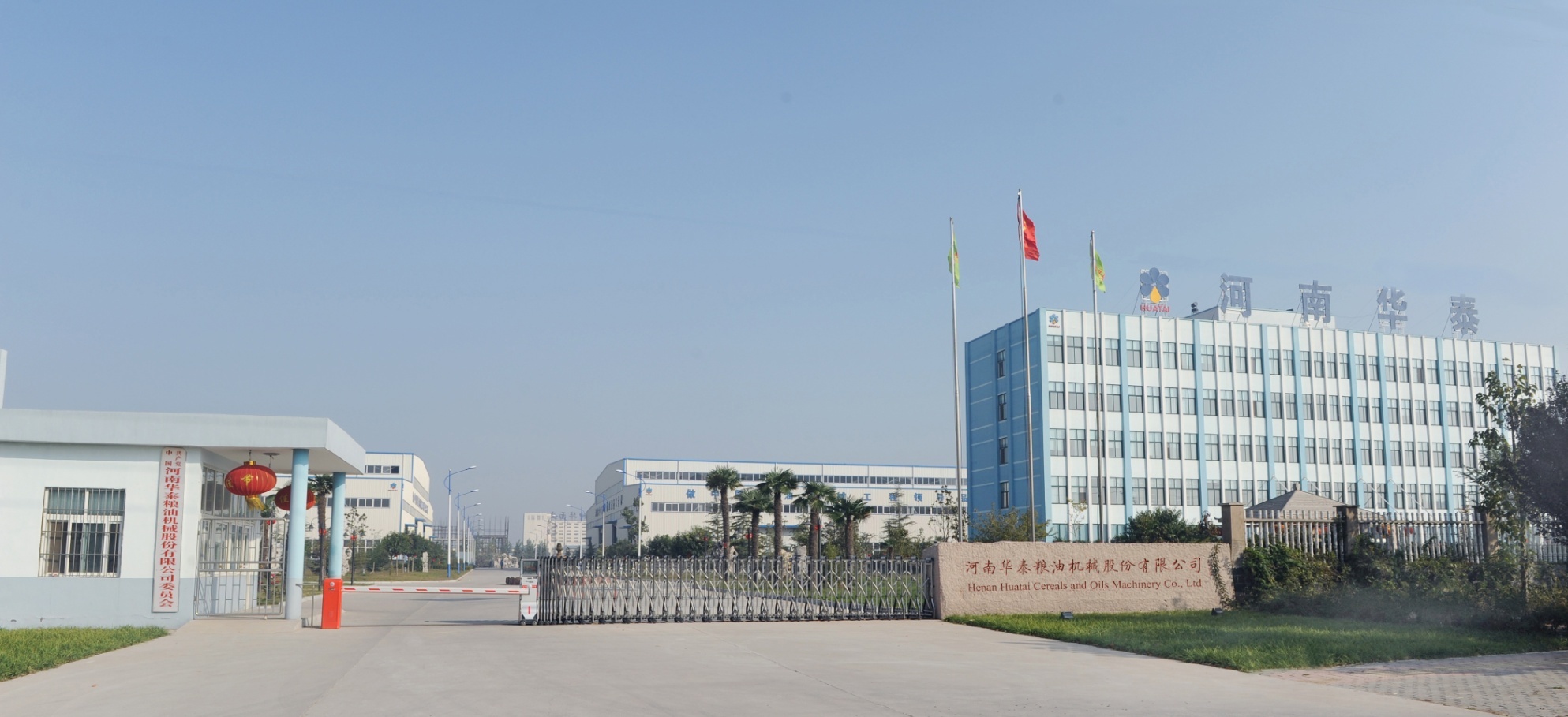

Henan Angel Medical Instruments Co., Ltd. is awholly-owned subsidiary of Henan Huatai Intelligent Equipment Group. The group is comprehensive group integrating R& D, manufacturing, sales and installation of cereals and oils machinery, medical instruments and environmental protection equipment. We are alarge-scale medical instruments company with the qualification to produce and sell Class II and III medical instruments and disinfection devices.
The Group relies on aggregating professionals in the field of medical equipment, concentrated technical forces to invest in research and development, and rapidly rises in the medical field. With great investment in research and development and innovation, the company has achieved aseries of results in the related fields of ethylene oxide sterilizers. Combined with the 5G intelligent AI platform to realize the intelligent operation of the equipment, the simplicity, safety, and sterilization effect exceed the customer's requirements. We always treat our customers with ahigh standard and aresponsible attitude. The corporate philosophy of being aperson first, and then acting, has laid asolid foundation for the group company to deepen its cultivation in the medical device industry.
Applications
=================================================================================
The ethylene oxide molecule can react with the carboxy1 (-COOH), amino (-NH2), sufydroxy (-OH) on the necessary gene protein for the metabolism in the bacterial cell to generate alkylation reaction, replaces the above unstable hydrogen atoms to form compound with ethoxy1 (-CH2CH2OH). Because this compound destroys the necessary reation groups in the metabolic reactions of microorganism, it affects the function of bacterial enzyme and kills the microorganism.
Ethylene oxide sterlization is broad-spectrum low-temperature sterilization method that uses ethylene oxide gas to fumigate the products sealed in the sterilization chamber at low temperature to achieve sterilization. It can kill various microporous at normal temperature, including spore, mycobacterium tuberculosis, virus, fungus, etc.; it has strong penetrating power, can penetrate microporous cotton wool products, plastic films, carbon boxes and other packaging products, sterilization is reliable, and convenient for long-term storage. After sterilization, the products are placed in awell-ventilated room, and they can be use safely after volatilization.
Angel Medical Instruments
=================================================================================
Manufactured by ateam of excellent equipment experts

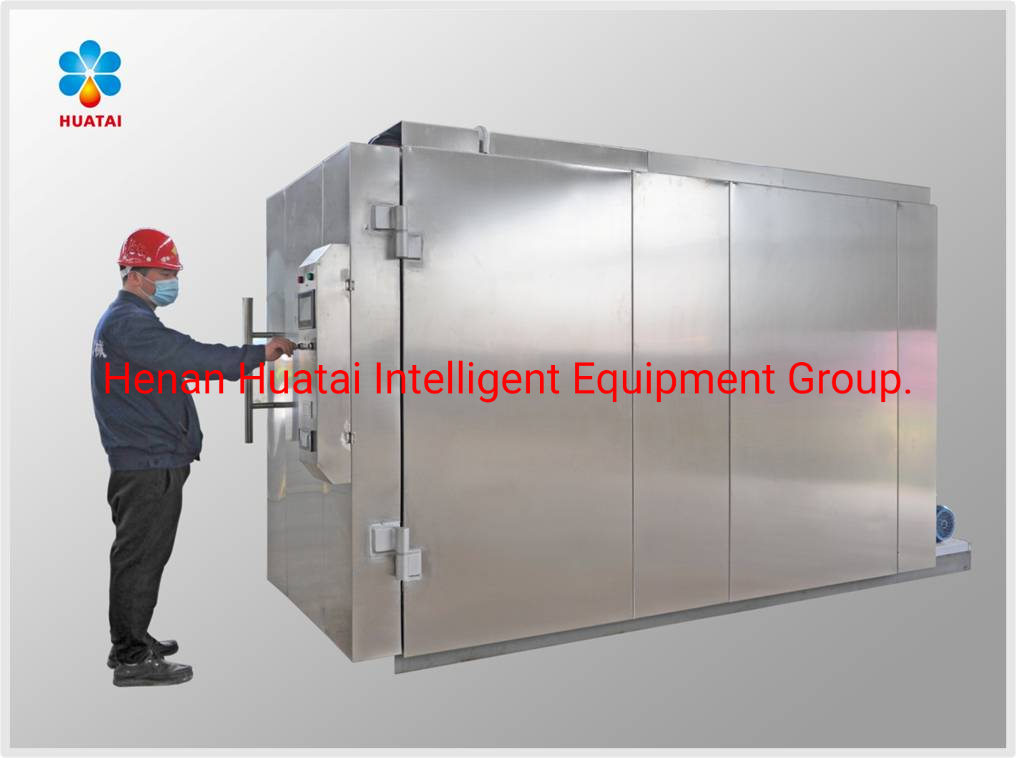

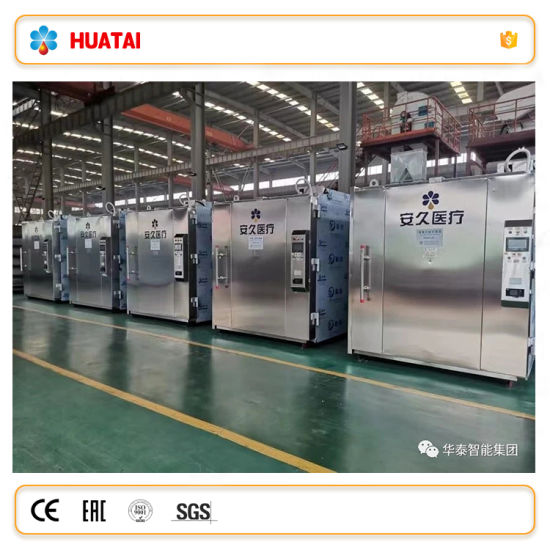

Ethylene oxide sterilizer:400,000 masks sterilized at one time

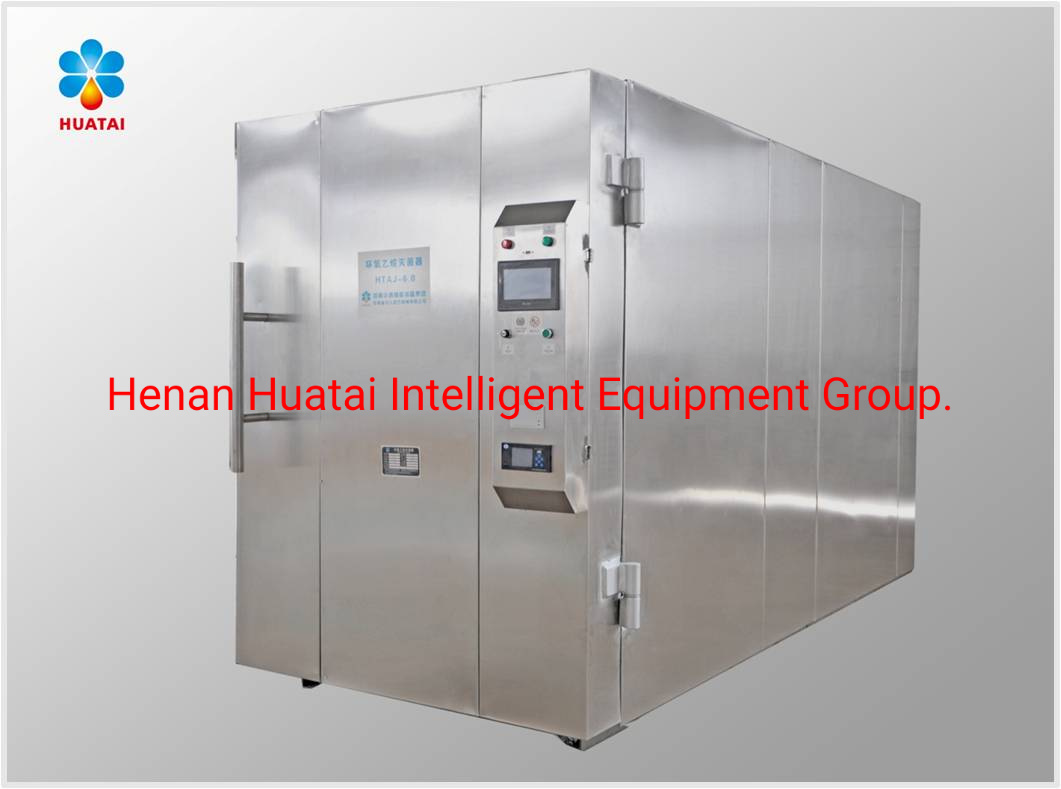

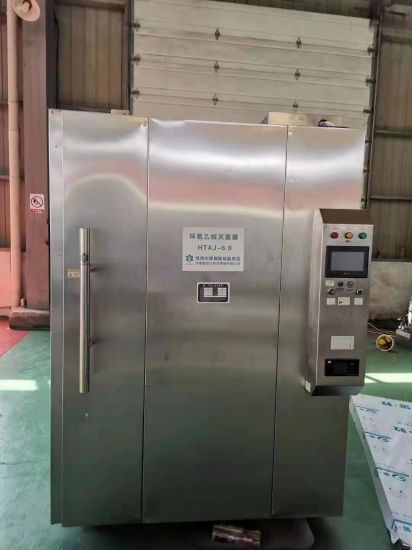

HTAJ series ethylene oxide sterilizer is designed based on the advantages of similar products at home and abroad, using advanced computer technology, automation technology, welding technology and process design.ØAngel's ethylene oxide sterilizer is an intelligent all-in-one machine with intelligent one-button operation, which is mainly divided into three stages
ØPre-treatment stage (reach the optimal environment before sterilization)
ØSterilization stage (time can be adjusted)
ØCompulsory elimination of ethylene oxide gas residual stage (freely adjustable the number of times)
Specifications and parameters of ethylene oxide sterilizer
=================================================================================
| Model | HTAJ-2CBM | HTAJ-3CBM | HTAJ-6CBM |
| Rated power | 9KW | 12KW | 18KW |
| Liner size length *width *height (mm) | 1500*1000*1400 | 1700*1200*1500 | 3000*1200*1700 |
| External size length *width *height (mm) | 2400*1300*1990 | 2600*1500*2090 | 3950*1570*2370 |
| Working pressure | -60Kpa~0 | -60Kpa~0 | -60Kpa~0 |
| Adjustable range of working temperature | 30ºC~50ºC | 30ºC~50ºC | 30ºC~50ºC |
| Working humidity | 30%‐80% | 30%‐80% | 30%‐80% |
| Sterilization time | 3-99 hours adjustable | 3-99 hours adjustable | 3-99 hours adjustable |
| Disinfection room | anticorrosive SS304 | 304 anticorrosive stainless steel | 304 anticorrosive stainless steel |
| Weight | 1500kg | 2000kg | 3200kg |
| Model | HTAJ-10CBM | HTAJ-15CBM | HTAJ-20CBM |
| Rated power | 24KW | 30KW | 35KW |
| Liner specifications length *width *height (mm) | 4000*1500*1800 | 5800*1500*1800 | 6000*1750*1950 |
| Liner specifications length *width *height (mm) | 4950*1870*2470 | 6750*1870*2470 | 6950*2120*2620 |
| Working pressure | -60Kpa~0 | -60Kpa~0 | -60Kpa~0 |
| Working temperature | 30ºC~50ºC | 30ºC~50ºC | 30ºC~50ºC |
| Working humidity | 30%‐80% | 30%‐80% | 30%‐80% |
| Sterilization time | 3-99 hours adjustable | 3-99 hours adjustable | 3-99 hours adjustable |
| Material of disinfection room | AnticorrosiveSS304 | AnticorrosiveSS304 | AnticorrosiveSS304 |
| Weight | 4600kg | 6500kg | 8000kg |
EO sterilization
100% sterilization rate

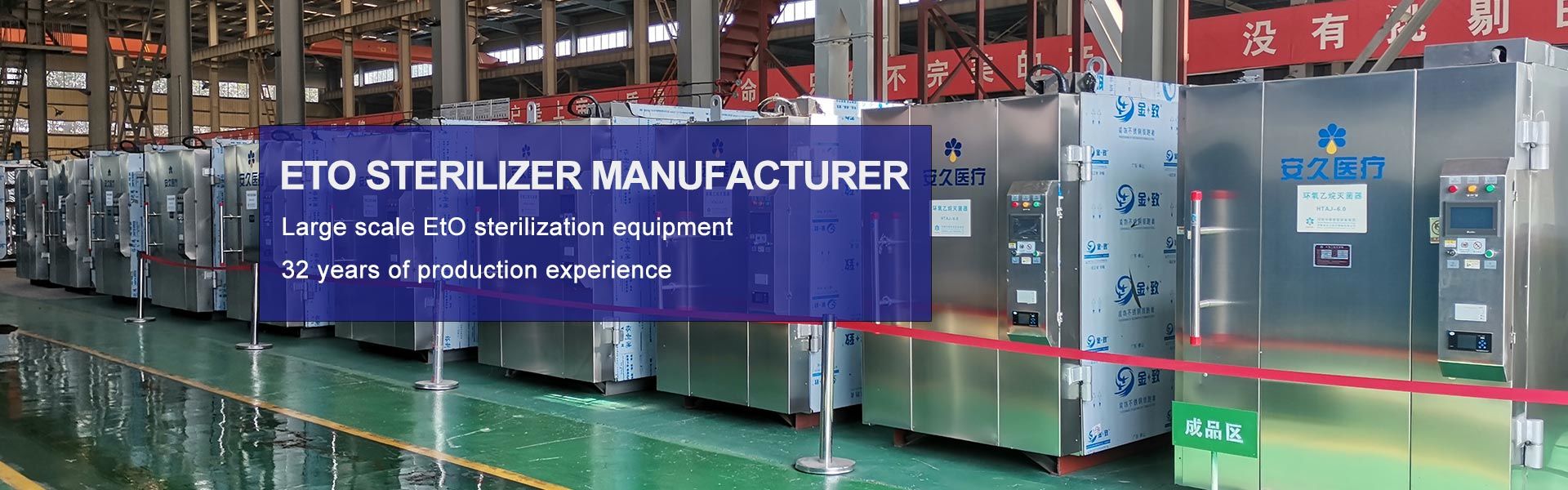

Professional in producing EO sterilizer
High efficiency:Sterilize Max.20CBM of products
Intelligence:one-key automatic operation, record and print whole sterilization process
High safety:Omnibearing sensor alarm,automatic monitoring
Strong software:Human-machine interface,intelligent operation
ØProduction of HTAJ series ethylene oxide sterilizer.
ØThe key parts are made of American 3M materials, and the insulation materials and thickness are better than the enterprise standard!
Ø32 years of technical precipitation, with pressure vessel design and manufacturing qualification.ØSpecial consumables for HTAJ series ethylene oxide sterilizer
ØEthylene oxide indicator card, ethylene oxide gas, biological incubator, ethylene oxide biological indicator, ethylene oxide packaging bag etc.

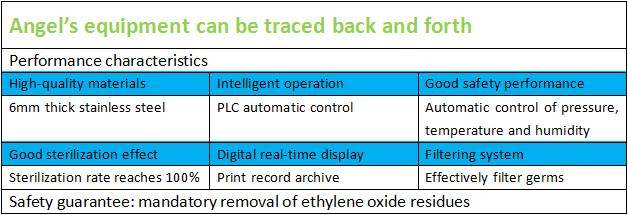

Instruments Technical characteristics
=================================================================================
Advantages
=================================================================================
Simple operation:one-button operation, microcomputer control, simple and convenient, digital display of sterilization process.
Print records:Record and print sterilization information for sterilization process, which is convenient for verification and archiving.
Filtration system:The air inlet is equipped with afiltration system, which can effectively filter out germs and microorganisms and avoid secondary pollution during exhaustion.·Simple operation: one-button operation, microcomputer control, simple and convenient, digital display of sterilization process.
·Print records: Record and print sterilization information for sterilization process, which is convenient for verification and archiving.
·Filtration system: The air inlet is equipped with afiltration system, which can effectively filter out germs and microorganisms and avoid secondary pollution during exhaustion.
Application of ethylene oxide sterilizer:
=================================================================================
Ø1,Medical devices: cardiac pacemakers, artificial hearts, dialyzers, aspiration devices, oxygenator interchangeable elements, surgical automatic suturing devices, sutures, suture needles, artificial esophagus, artificial bones, artificial blood vessels, etc.
Ø2,Endoscopes: laryngoscope, bronchoscope, esophageal fibroscope, mediastinoscopy, cystoscope, urethoscope, and thoracoscopy.
Ø3,Rubber products: gloves, finger cots, syringes, injection needles, blood collection devices, infusion sets, urine collection bags, intra-organ hoses, nasal hoses, catheters, suction hoses, birth control equipment, etc
Ø4,Medicine: some Chinese and Western medicines and some cosmetics.
Ø5,Textiles and biological products: cotton wool chemical fiber clothing, blankets, carpets, gauze, bandages, dry silk balls, cotton swabs, absorbent cotton, dressings, towels, leather, fur products, etc.
Ø6,Cultural relics files: paper currency, tickets, medical records, files, letters, historical relics, silk satin products, animal and plant specimens, etc.
Ø7,Instruments: electronic instruments, optical instruments, telephones, etc.
Ø8,Hygiene products: sanitary napkins, napkins, disposable sanitary tableware, etc.
Installation requirements of ethlene oxide sterilizer:
=================================================================================Ø1)Independent space suggest more than 12 *5 *3 meters (20 cubic meters) (drawings can be provided according to the actual workshop).The workshop must ensure good ventilation effect.It is recommended to have aforced air intake device and an air exhaust device inside; The air exhaust device, lights, switches, etc. need to be explosion-proof (explosion-proof grade is enough). Please refer to the drawings for workshop size, window size, air inlet and outlet size, etc. It is recommended to be in an industrial zone, away from residential areas. The workshop should be far away from the fire source. If conditions permit, there should be no fire source within 50 meters of the workshop.
Ø2)Need to prepare the DN40 outlet hose and connect to the sewage collection port according to the actual distance on site;
Ø3)Need to prepare DN20 hose to connect to overflow port
Ø4) Need to prepare awater inlet hose that is consistent with the diameter of the tap (generally DN20 hose) to connect to the device according to the actual distance on site;
Ø5) The independent space require athree-phase five-wire power distribution box and cable connecting the equipment (copper core cable, about 10 meters).
Ø6) Each sterilizer needs an air compressor (above 4KG).
Ø7)Need to prepare consumables (contact direct supplier or online shopping), ethylene oxide sterilization gas, ethylene oxide sterilization biological indicator agent, ethylene oxide sterilization chemical instruction card, etc.(A bottle of ethylene oxide sterilization gas and achemical instruction card for ethylene oxide sterilization will be provided together with the device).
Qualification:
=================================================================================
FAQ
=================================================================================
Q1:What is the Warranty for the machines?
A1:We provide 1year warranty for your machine.
Q2:How to install and debug after purchasing the equipmen?
A2: After you purchase our ethylene oxide sterilizer, we will provide you with video guidance for installation. The operation is very simple and clear at aglance. You can purchase it with confidence.
Q3:Do you provide after-sales service? How to guarantee your ability and quality?
A3: Of course, we provide after-sales service. We have more than 30 subsidiaries and offices around the world, and the Russian market share alone is as high as 60%. What we do is brand strategic marketing rather than one-time sales.
Q4:Among so many suppliers, what is your biggest advantage?
A4: We are amember unit of China Cereals and Oils Association. It is one of the four largest grain and oil machinery manufacturers in China. We have 60 years of industry experience. We are alisted company integrating R&D, design, production and sales. We are amanufacturer, not atrading company. We have our own brand "Huatai" and have more than 27 patents for China's oil and fat equipment process technology.
Q5:How to ask quotation?
A5: Please note us how many protective clothing, masks or other medical supplies you need to handle at one time, and we will recommend the most suitable model and corresponding price for you.
Welcome your inquiry and your visit!!!
