- Model NO.：
- TM-XD20D
- Certification：
- CE, FDA, ISO13485
Product Description:
This sterilizer is a safe, reliable and automatically controlled small and fast table top sterilization equipment, suitable for medical and health, pharmaceutical, scientific research and other units. For surgery, dentistry, ophthalmology instruments, glassware, medicines, culture media and fabric dressings, as well as food and other items that are resistant to saturated steam, it provides rapid sterilization.

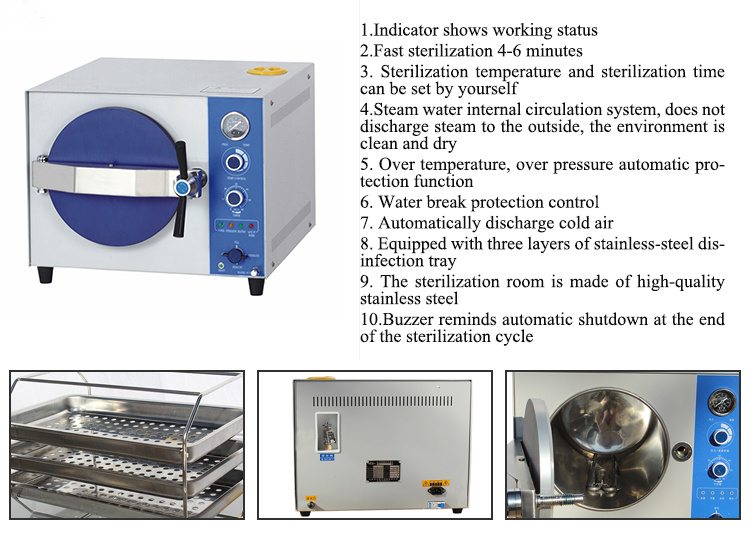

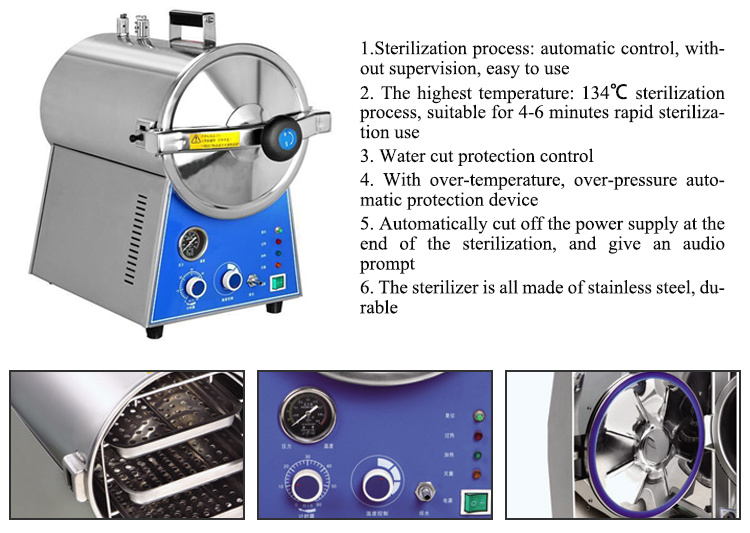

Table Top Steam Sterilizer:
Parameters:
| Model | TM-T16J | TM-T24J |
Sterilizing chamber volume: | 16L | 24L |
Maximum working pressure: | 0.22Mpa | |
Maximum working temperature: | 134ºC | |
Adjustment of temperature: | 105-134ºC | |
Timer: | 0-60min | |
Heat average: | ≤±1ºC | |
Power: | 1.5KW | |
| Voltage: | 220V/50Hz | |
| Sterilization trays: | 340*200*30 (3piece) | 340*200*30 (3piece) |
| Package size(mm): | 605*390*480 | 620*410*570 |
| N.W: | 15kg | 18kg |
| G.W: | 17kg | 20kg |
Parameters:
| Model | TM-XB20J | TM-XB24J |
Sterilizing chamber volume: | 20L | 24L |
Maximum working pressure: | 0.22Mpa | |
Maximum working temperature: | 134ºC | |
Adjustment of temperature: | 105-134ºC | |
Timer: | 0-60min | |
Heat average: | ≤±1ºC | |
Power: | 1.5KW | |
| Voltage: | 220V/50Hz or 110V/60Hz | |
| sterilization trays: | 340*200*30 (3piece) | 400*200*30 (3piece) |
| Package size(mm): | 700*580*500 | 800*580*500 |
| G.W: | 44kg | 50kg |
| N.W: | 40kg | 45kg |
Parameters:
| Model | TM-XD20D | TM-XD24D | TM-XD35D | TM-XD50D |
Sterilizing chamber volume: | 20L | 24L | 35L | 50L |
Maximum working pressure: | 0.22Mpa | |||
Maximum working temperature: | 134ºC | |||
Adjustment of temperature: | 105-134ºC | |||
Timer: | 0-99min | |||
Heat average: | ≤±1ºC | |||
Power: | 1.5KW | 2.7KW | ||
| Voltage: | 220V/50Hz | |||
| Sterilization trays: | 340*200*30 (3piece) | 400*200*30 (3piece) | 340*200*30 (4piece) | 500*250*30 (3piece) |
| Package size(mm): | 580*700*500 | 580*800*560 | 780*670*650 | 840*710*690 |
| G.W: | 43kg | 50kg | 92kg | 105kg |
| N.W: | 40kg | 45kg | 78kg | 89kg |

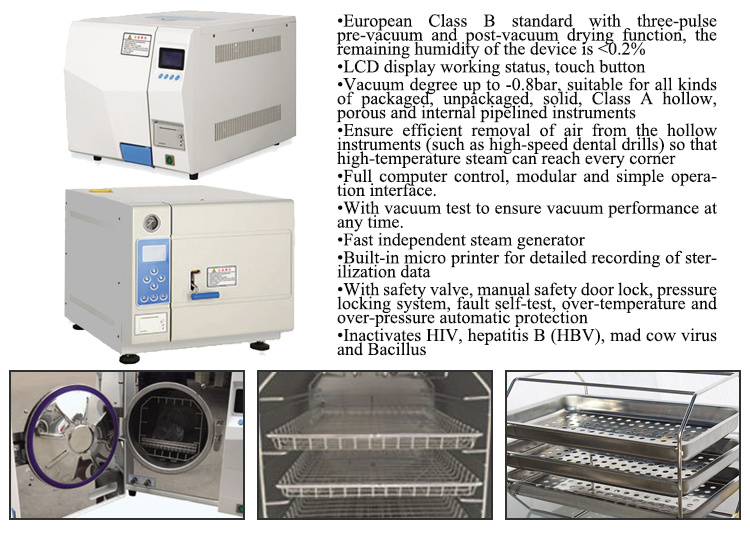

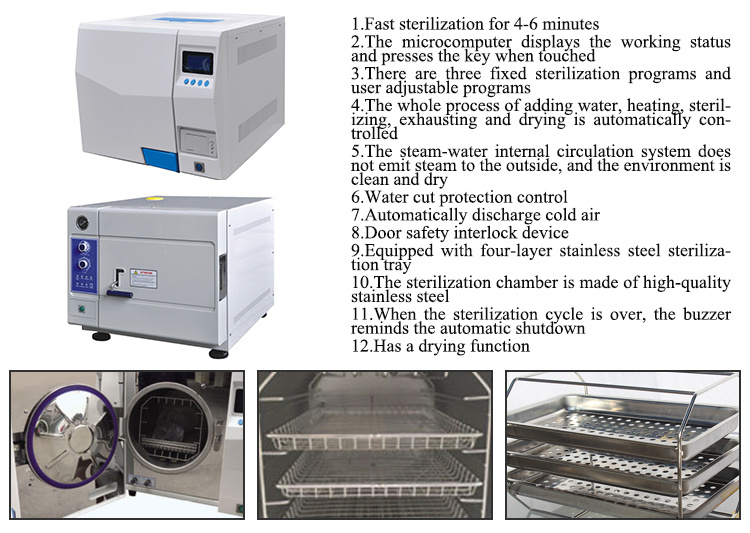

Table Top Pulse Steam Sterilizer:
Parameters:
| Model | TM-12DV | TM-20DV | TM-24DV | TM-35DV | TM-50DV |
Sterilizing chamber volume: | 12L | 18L | 24L | 35L | 50L |
Maximum working pressure: | 0.22Mpa | ||||
Maximum working temperature: | 134ºC | ||||
Adjustment of temperature: | 105-134ºC | ||||
Timer: | 0-99min | ||||
Heat average: | ≤±1ºC | ||||
Power: | 1.8KW | 2KW | 2KW | 2.7kW | |
| Voltage: | 220V/50Hz | ||||
| Package size(mm): | 580*790*580 | 580*790*580 | 580*790*580 | 690*860*700 | 690*900*700 |
| G.W: | 48kg | 56kg | 57kg | 113kg | 125kg |
| N.W: | 43kg | 47kg | 53kg | 107kg | 110kg |
Application:

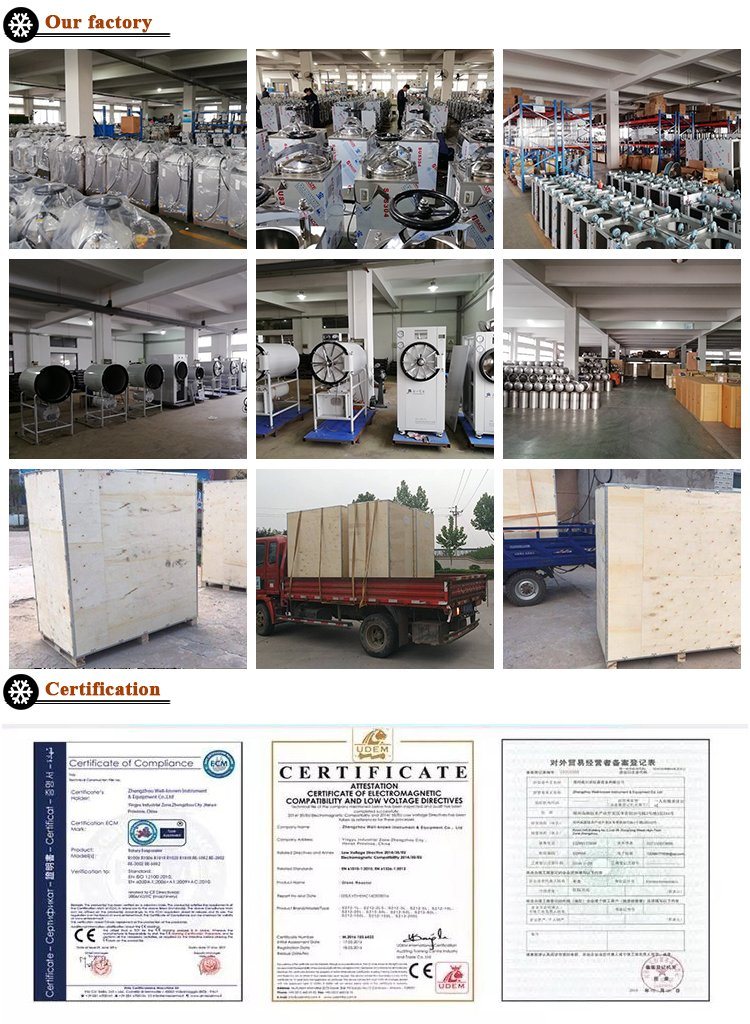

Company information:
Zhengzhou Well-known Instrument & Equipment Co.,Ltd, is a famous manufacturer of Lab equipment located in the centralChina.The main products includerotary evaporator , glass reactor, autoclave machine ,freeze dryer,ULT freezerand so on. So far, our products have been sold all over Asia, Europe and America, and covered most oflaboratories in China. We have become one of the most popular and trustworthy brands.
Though our foreign trade is not for long, we do have a history of more than 30 years of our domestic trade. To assure thegood quality & good service is our consistent aim.
We welcome new and old customers from all over the world to contact us for future business relationships and achievingmutual success!!
Packaging&shipping:
Packaging
-The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
FAQ:
1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&qualityproblem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find theproblem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
