Kraft paper slitting machine

Price:＄0.00/套
Brand:YDF
Min quantity:1套
Quantity:100套
Deliver:In 40 days

Inquiry

Product Description

SPECIFICATIONS FOR BIG DIAMETER paper jumbo kraft roll slitterrewinder/slitting rewinding machine
Machine name		BIG DIAMETER paper jumbo kraft roll slitterrewinder/slitting rewinding machine
Max.slitting width		1600 mm
Min.slitted width		40mm
Max.raw paper roll diameter		1200mm
Max.slitted paper diameter		650mm
Working Speed		200m/Min
Paper grams		80-510g
Main Power		5.5kw
Operatior		1-2 person
Weight		1200kg
Dimension	2550mm*2250mm*1800mm

Main Features

1.Adopts PLC control system and modular electrical layout design system
2. Equipped with automatic variable speed cutting machine and automatic tracking cutting, which make the paper roll more flatten ans smooth
3. The machine has reasonable design , stable performance, easy operation, stable running

4.Using pneumatic loading and unloading to save manpower

Brief introduction of BIG DIAMETER paper jumbo kraft roll slitterrewinder/slitting rewinding machine

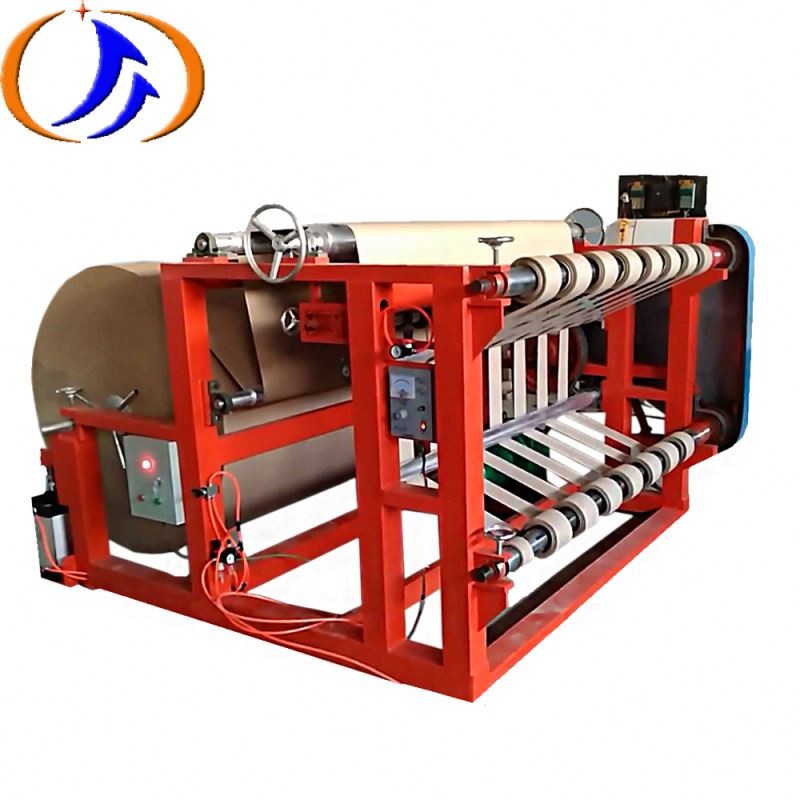

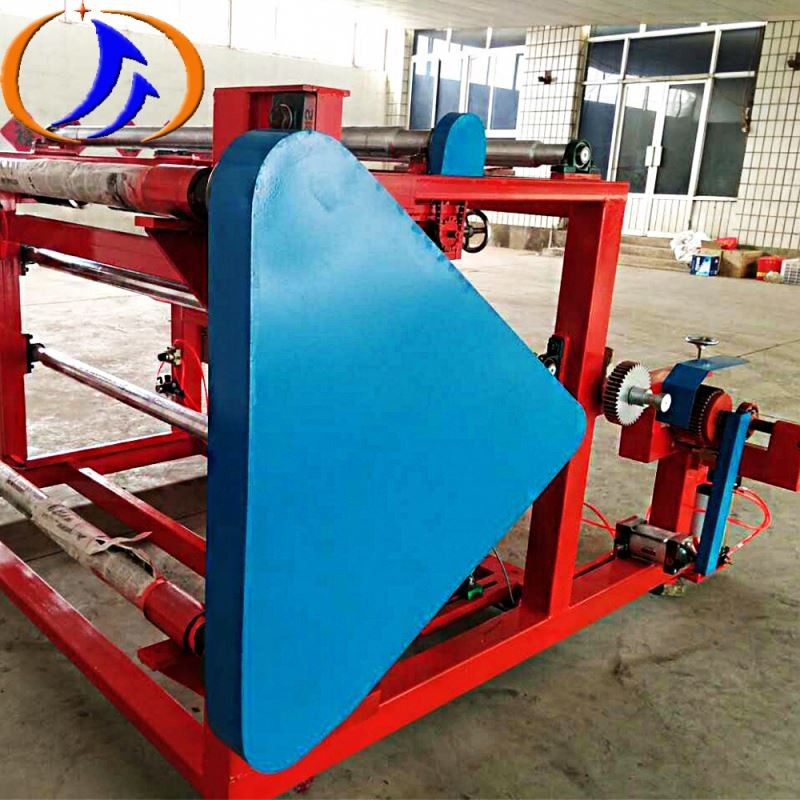

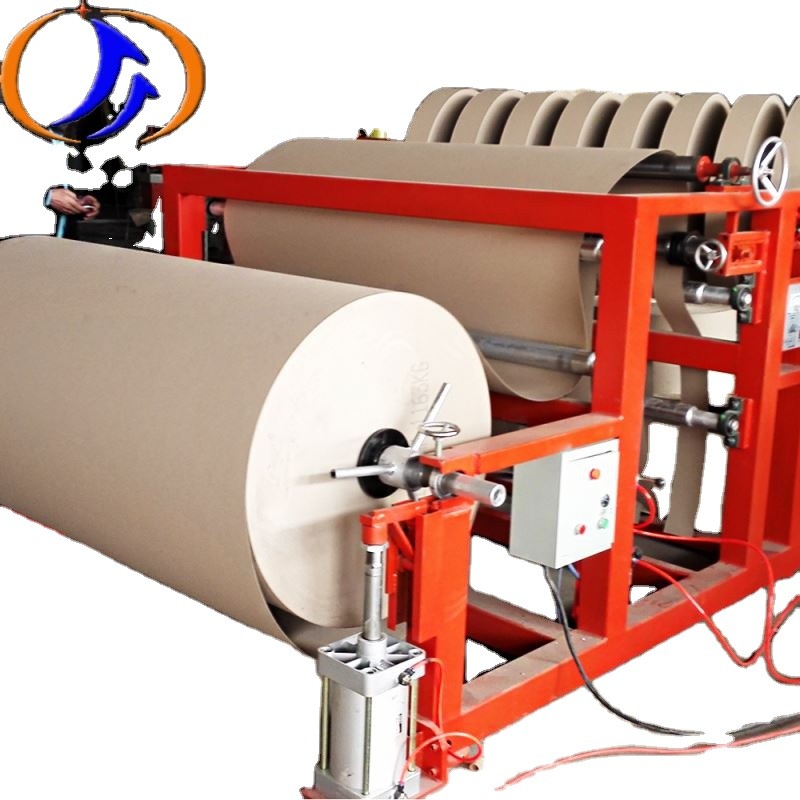

Product Show
