Tissue Paper Making Machine

Price:＄0.00/套
Brand:YDF
Min quantity:1套
Quantity:100套
Deliver:In 90 days

Inquiry

5~6 tons per day Toilet Tissue Jumbo Roll Production Line

From waste paper，wood，bamboo，rice straw etc.

PRODUTION OVERVIEW

5~6 tons per day Tissue Production Line

This production line is mainly consisted of paper pulping system and Jumbo tissue roll making machine.

1.The pulping system is a process in which raw materials, such as waste books, paper, edge bleaching straw pulp board, bleaching wood pulp board, etc., are processed into fibrous water suspension which meets the requirements of paper making, and then sent to the paper machine by the flow system to meet the requirements of users.

2.Paper machine is to meet the paper making requirements of the pulp water suspension by the filter dehydration forming, mechanical extrusion dehydration and drying process then making into paper. The use of raw materials are: waste paper, old newspaper and white waste paper edges and so on. It can produce toilet paper, facial tissue paper, napkin paper, drawing paper and so on. The machine with reliable quality, stable performance, easy operation, energy saving and environmental protection, paper making machine is the ideal product in machinery field.

PRODUTION DETAILS

1. Main Product:	Toilet paper, napkin paper and drawing and so on
2. Grammage:	15～30g/㎡
3. Equipment form	The inversion of slurry
4. Capacity:	5~6T/24h
5. Raw paper width:	1880-2000mm
6. Design speed:	180m/min
7. Transmission speed：	70-150m/min
8. Dynamic balancing speed:	300m/min
9. Roller balance:	G2.5 class
10. Dryer balance:	C4 class
11. Winding paper roll:	C1.6 class
12. Transmission mode:	Ac motor frequency control of motor speed digital distribution transmission
13. Arrangement mode:	Right or left arrangement(selected by the user)
14. Gauge:	2400mm
15.Large equipment 1	Dryer cylinder:Ø2500mm×1 set
16.Large equipment 2	Cylinder mould:Ø1500 mm×1set

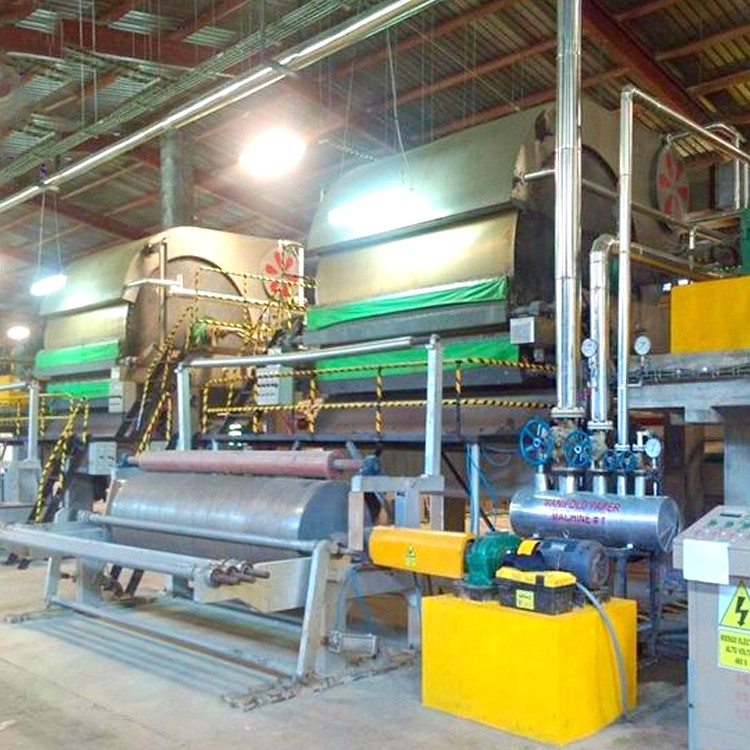

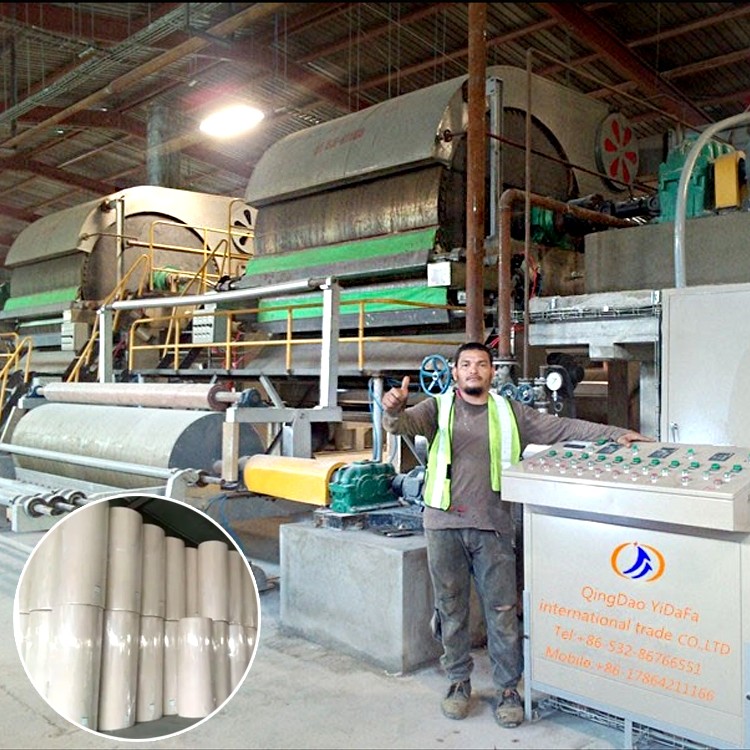

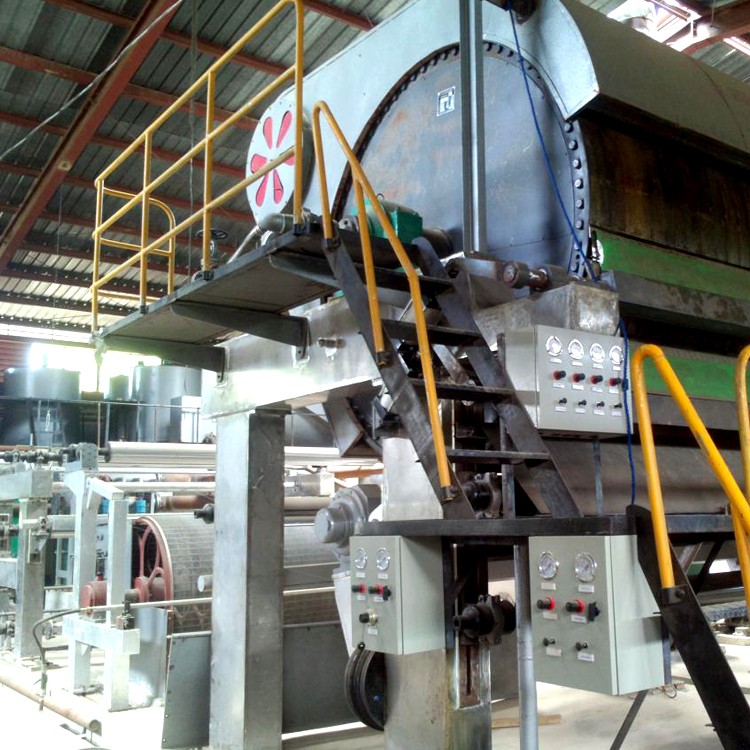

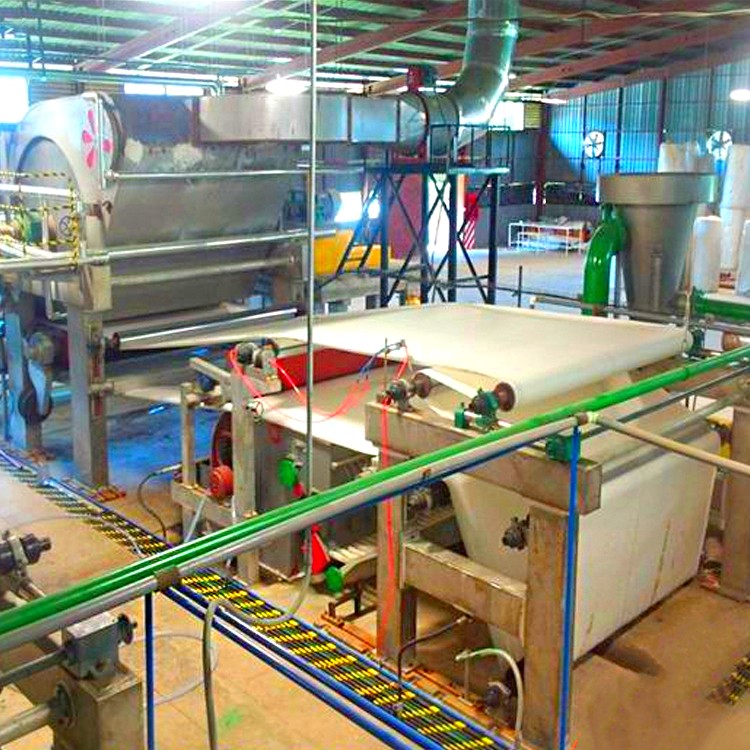

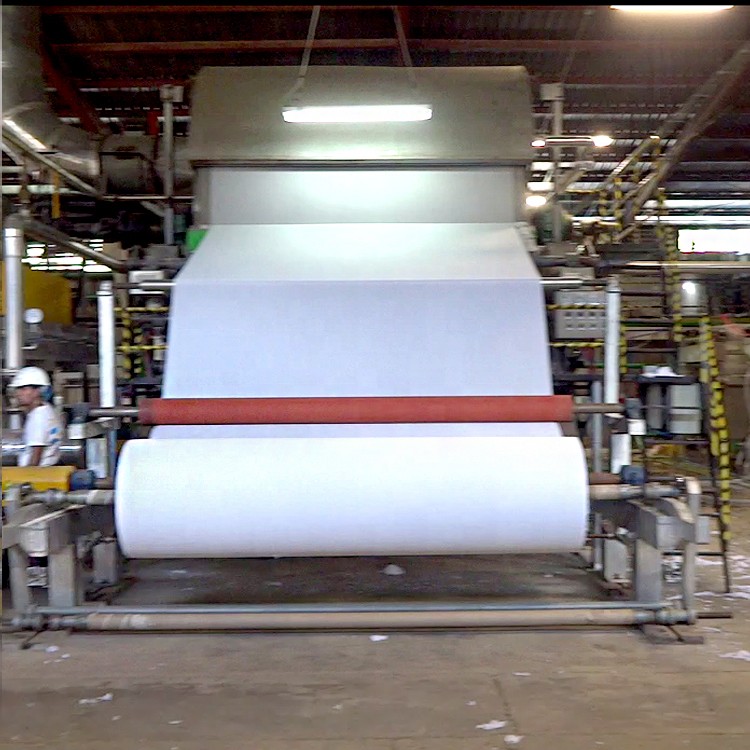

PRODUTION SHOW
