Brand:SUZHOU PHARMA

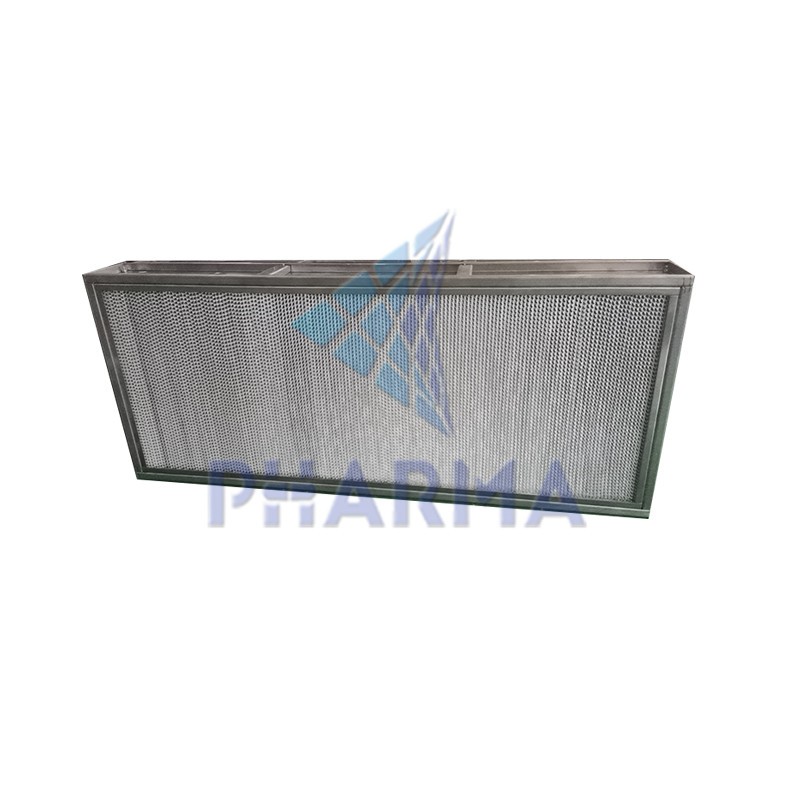

Product name:HEPA Air Filter For Industry
Application:Laminar flow hood/dust shed
Efficiency:HEPA 99.99%@0.3um
Quantity:100件
Deliver:In 3 days
FFU can be used in modular connection, which makes FFU widely used in dust-free room, dust-free console, dust-free production line,
assembled dust-free room, local class 100 and other applications. FFU is equipped with primary and high-efficiency two-stage filter screen.
The fan sucks the air from the top of FFU and filters it through primary and high-efficiency filters.
The filtered clean air is sent out at a uniform speed of 0.45m/s±20%on the whole air outlet surface.
It provides high-quality clean air for clean rooms and micro-environments with different sizes and cleanliness levels.
In the reconstruction and renovation of new clean rooms and clean workshops. It can not only improve the cleanliness level,
reduce noise and vibration, but also greatly reduce the cost. It is easy to install and maintain. It is an ideal component for a clean environment.
Size | Customized |
External frame | Aluminum |
Surface treatment | Oxidised |
Filter media | Glassfiber |
Separtor | Hot-melt |
Sealant | Gel-glue |
Gasket | EPDM |
Max operating humidity | 80% |
Max operating temp | ≤70℃ |
Recommended final pressure drop | ≤450Pa |
