Brand:Canghai Plastic Machine
model:#80
reducer:International Trade
die:Zhangjiagang
Min quantity:1tower
Quantity:5tower
Deliver:In 30 days
parameter:
order number | name | data | remarks |
1 | Product capacity | 5-10 liters | |
2 | Number of products per mold | 2 (Module) | |
3 | The number of mold | This is done at 100-300 times per hour | |
4 | Template size | 540*450*40mm | |
5 | Minimum capacity mold thickness | 240mm | |
6 | Maximum opening distance of template | 500mm | |
7 | Maximum lock mode force | 5KN | |
8 | The diameter of the host screw | Ф 80 | 38CrMoAl |
9 | Long diameter ratio of screw | 25/1 | |
10 | Maximum plasticity | 75 Kg | |
11 | Power of main motor | 18.5kw | frequency conversion |
12 | Heating power | 25kw | |
13 | The way of blowing | On the blow | |
14 | Control System | Touch Screen PC PLC | |
15 | hydraulic pressure system | PVR2-46 | |
16 | temperature control | Intelligent temperature control | |
17 | gas consumption | 0.5m3/min | |
18 | Cutting method | Eager | |
19 | source | 380v (3-phase 4-wire system) | |
20 | Hydraulic motor | 5.5KW | |
21 | die head | one | |
22 | The heating section of the whole machine | 5 segments | |
23 | Applicable materials | PE/PP | |
24 | Lock mode | Center straight top type | |
25 | Blowing pressure | 0.3-0.6MPA | |
26 | Drum and screw material | Zhoushan, 38CoMoAl | Nitrogen seepage treatment |
27 | gear-box | ZLY146 | Jiangsu international trade |
28 | pneumatic component | The spirit of the movement | |
29 | electromagnetic valve | BWIN | |
30 | AC contactor appliances | IT | |
31 | proximity switch | Otomik | |
32 | any power-generating or power-driven machine | Taizhou GeXin | |
33 | touch screen PLC | Beijing color | |
34 | frequency transformer | Qingdao HuaHao | |
35 | die head | Zhangjiagang | |
36 | fan housing | Qingdao Bang Ling | |
37 | Overall dimension (length, width and height) | 3400*2000*2000 | |
38 | Total weight of the unit | 4T | |

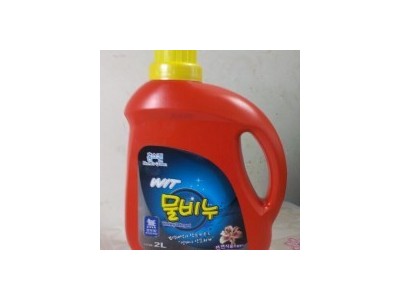

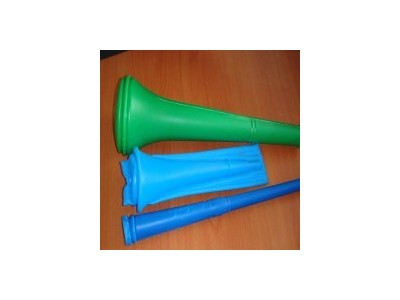

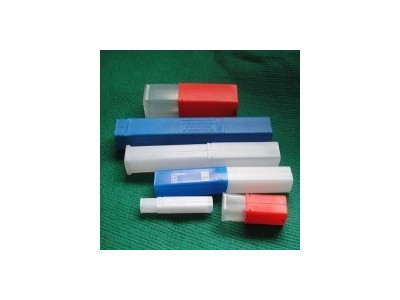

Suitable for medicine, toys, tool boxes, chemical bottles, daily chemicals, automobiles and other fields of hollow plastic products | |||
