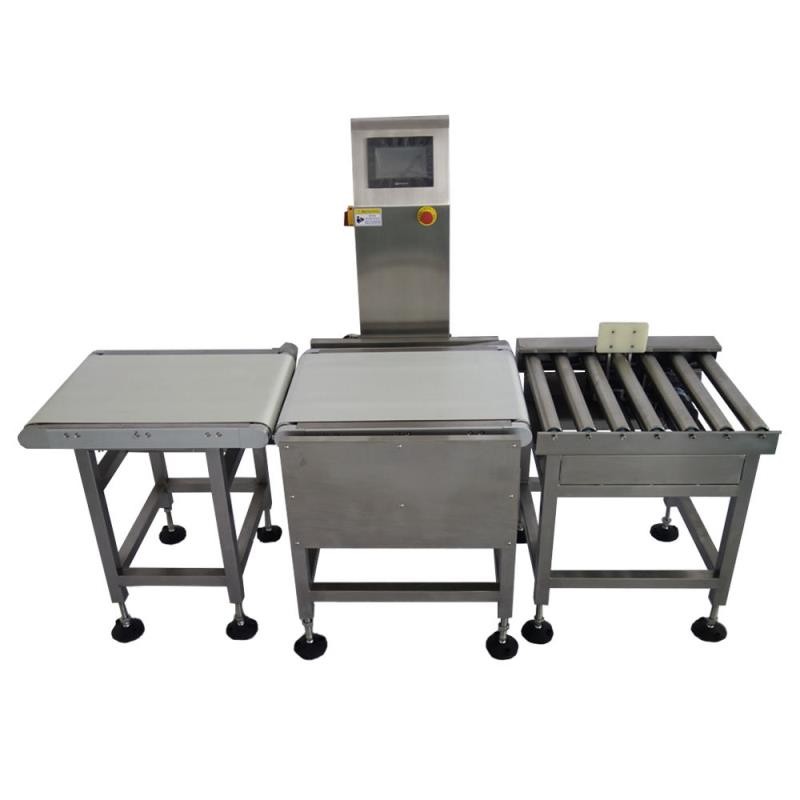

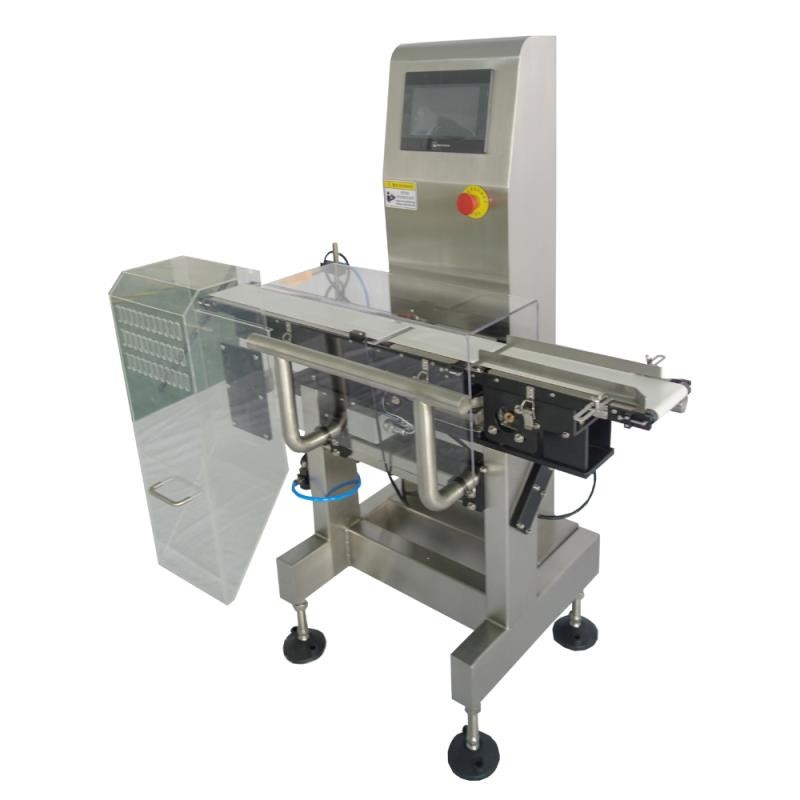

Aligning Machine with weighing device
Sorting scale model：SG-150H
I. Features:
1. Large-size color LCD touch screen interface, simple operation and intuitive display.
2. Support multiple languages: Chinese, English, Spanish, Italian, Japanese, Korean, etc. (designated by the customer), Chinese and English by default.
3. It can store 100 kinds of product detection data for user's convenience.
4.USB data storage interface, which can transfer report data to PC for analysis and printing.
5. Parameter setting password protection, only management personnel operation.
6. Automatic zero point tracking system ensures reliable detection data.
7. Built-in temperature and noise compensation system ensures system stability.
8. online printing function (to be customized).
9. Data external communication interface, which can be connected to other equipment in the production line (eg: labeling machine and code jet machine)(to be customized).
10. Various removal devices: lever type, air blowing type, roller push rod type, belt push rod type, falling type, plate type, belt contraction type (to be customized).
11. Simple mechanical structure, convenient for disassembly, cleaning and maintenance.Special shock-proof and shock-absorbing materials are adopted to ensure long-term stability and service life
二: Basic parameters
Type | SG-150H |
Weighing way | Weight sensor |
Excluding device | Air injection or flap culling |
Mode of operation | 7-inch touch screen (belt direction: face the screen from left to right) |
Alarm way | Buzzers and alarm lights |
Maximum sorting speed | 0-90m/min |
The power supply | AC110V/220V 50-60HZ |
Power: | Abou 100W |
Table size: | 200mmX150mm (scale height: 750 50mm adjustable) |
Weight: | about 60KG |
Scope of sorting | Sorting accuracy | Minimum scale | Sorting speed |
3-500g | ±0.1-0.3g（depending on the product） | 0.1g | Maximum 210 packets/min |
Products limited | Length | Width | Height |
SG-150H | 100mm | 150mm | 3-150mm |
Configuration list
The name | brand |
The sensor | German HBM |
The inverter | Taida |
Touch screen | Taiwan willem 7 inches |
The motor | Zhongda |
Conveyor belt | Harborst, Switzerland |
The machine material | Stainless steel SU304 |
