Brand:WELLINE MACHINERY
Min quantity:1件
Quantity:999件
Deliver:In 10 days

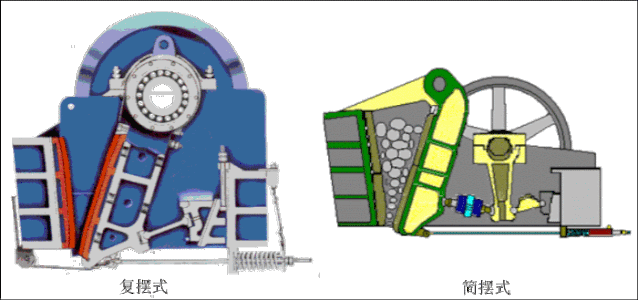

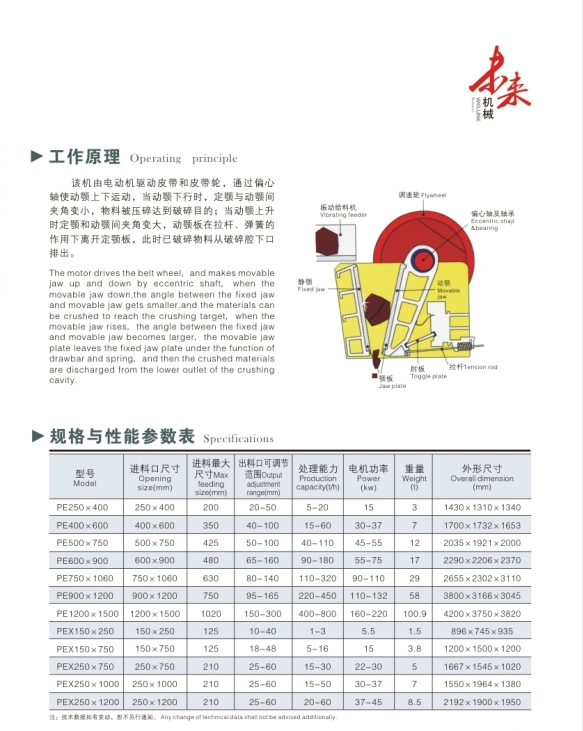

The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down,the angle between the fixed jaw and movable jaw gets smaller,and the materials can be crushed to reach the crushing target, when the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger, the movable jaw
plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
Application: The crushing of ores and bulk materials with compressive strength not higher than 320 Mpa in mining, building materials, highways, railways, water conservancy and chemical industries.
Crushing Material: Granite, dolomite, pebble, quartzite, calcite and so on.
Capacity: 1-2200 TPH
Feed Stone Size: 125-1000mm
Output Stone Size: 10mm-300mm
