Brand:HNSK
Capacity:10kg
Material:wheat
Power:3 kW
Min quantity:1台
Quantity:10台
Deliver:In 15 days

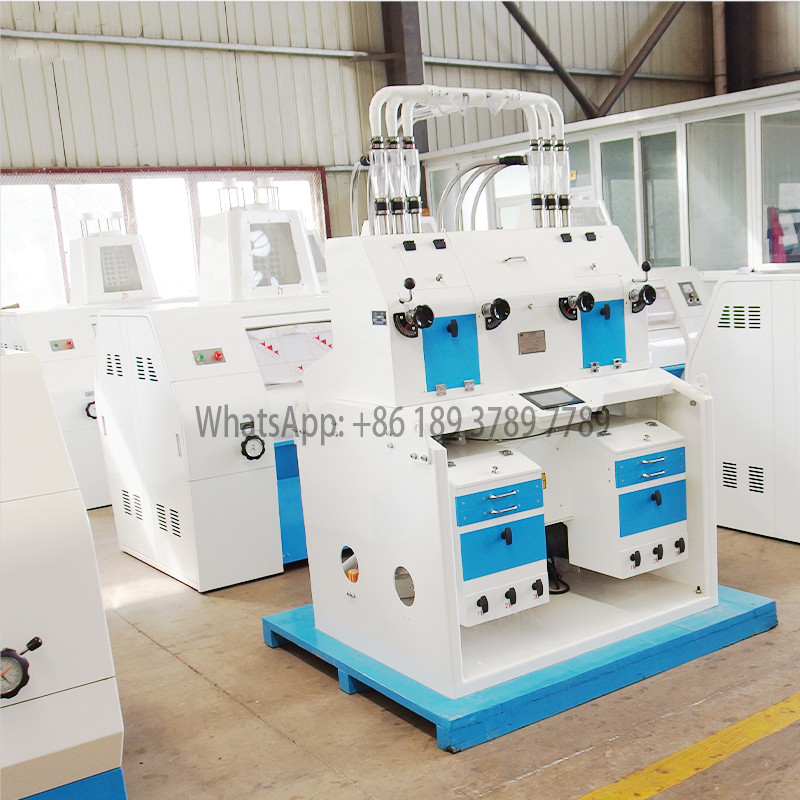

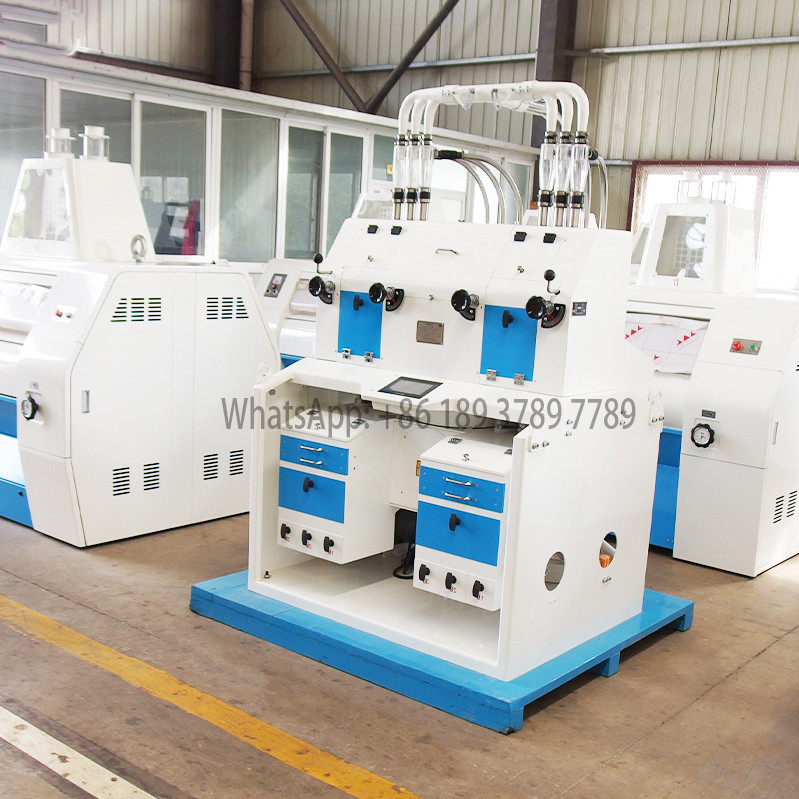

LSM20 Experimental Laboratory Mill Wheat Flour Mill Plant for Testing Wheat Quality
The flour extraction rate of wheat is one of the important quality indicators of wheat. Flour mills all over the world are concerned about the flour extraction rate of wheat. Our LSM20 experimental mill is a fully automatic flour rapid grinding testing equipment for experiments. It can better reflect the milling quality of wheat. By flour milling test, it can evaluate the flour extraction rate and make a general flour milling evaluation to provide guidance basis for large-scale commercial flour milling plant. Widely used in wheat breeding department, wheat quality research department and large scale commercial flour mill.
Our LSM20 experimental mill is mainly composed of feed hopper, centrifugal dust collector, air lock, feeding system, grinding system, screening system, transmission system, discharge port and collecting hopper.
lThe leading "three skins and three cores" process provides a guiding basis for large-scale commercial milling;
lFeed grinding and screening integrated structure, easy to operate;
lAdjustable screw feeding mechanism to ensure uniform feeding;
lThe sieve rotating, less powder accumulation in the sieve;
lThe collection bucket and the sieve body have a tight structure, and there is no "floating powder" phenomenon;
lScreen surface and brake dragon chain automatic cleaning;
limported bearing configuration;
Model | Max Capacity (kg) | Mill Roller (mm) | Fast Roller Speed (r/min) | Fluted Roller Speed Rate | Smooth Roller Speed Rate | Power (kW) |
LSM20 | 10 | Φ155×200 | 500 | 2.5:1 | 1.5:1 | 1.5+1.5+0.55 |
Sieve Speed(r/min) | Rotation Diameter(mm) | Air Volume(m³/h) | Air Pressure(Pa) | Weight(kg) | Dimensions(mm) | |
298 | 23 | 669 | 2710 | 650kg | 1330×1100×1870 |
