Brand:SUZHOU PHARMA
Product name:Air Cooled Direct Expansion AC
Type:Customizable
Application:Factory, hospital, laboratory
Min quantity:1件
Quantity:500件
Deliver:In 30 days
Intelligent Control Console
•Auto control each section of the unit to make sure the temperature, humidity and cleaness
•High quality and international brand electrical elements to ensure the unit operate more stable and energy-saving
•Screen touch panel, with setting, display and memory function
Energy Saving Refrigerating System
•Advanced design, low running noise, energy saving, safety and long service life
•Multi-circuits design, running reliably and energy-saving
Famous Brand Blower and Motor
•Fan selection based on the air flow and air static requirement is done by fan selection software
•Direct driven/ belt driven, forward curve/ backward curve centrifugal fans, and fan is available for option
Vibration Eliminator
•To reduce the transmission of vibration and noise, fan and motor are installed on an independent complete base frame
•The complete base frame is isolated by deflection type spring isolators
High Efficiency Cooling and Heating Coil
•All coils calculation and selection is done by selection software to match the required conditions
•Large coil face area ensures maximum heat transfer rate
Energy Saving Electric Heater
•Stable electric heating capacity
•Energy saving and safety
•Anti-corrosion
| PH-Series-Roof Top HVAC | 10 | 15 | 18 | 20 | 25 | 30 | 35 | |||
Specification | Cooling capacity 1* | kW | 10.5 | 15.0 | 18.5 | 21.0 | 26.3 | 29.8 | 35.0 | |
Heating capacity 2* | kW | 11.5 | 15.9 | 19.5 | 22.1 | 27.6 | 32.6 | 37.1 | ||
Supply air 3* | m3/h | 1800 | 2400 | 2900 | 3500 | 4500 | 5000 | 5800 | ||
Static pressure 3* | Pa | 100 | 150 | 150 | 180 | 200 | 250 | 250 | ||
Noise 4* | dB(A) | 60 | 60 | 62 | 62 | 65 | 65 | 68 | ||
Power | 3N-380V-60Hz | |||||||||
Total capacity | 3.9 | 5.74 | 7.0 | 8.27 | 9.96 | 11.0 | 14.15 | |||
Color | White | |||||||||
cooling system | Compressor | Type | Efficient scroll closed | |||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |||
Supply air fan | Type | Low noise centrifugal type | ||||||||
Capacity | kW | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | ||
Evaporator | Type | Inner grooved copper tube and aluminum fin | ||||||||
Fin type 5* | Slotted fin hydrophilic aluminum fin | |||||||||

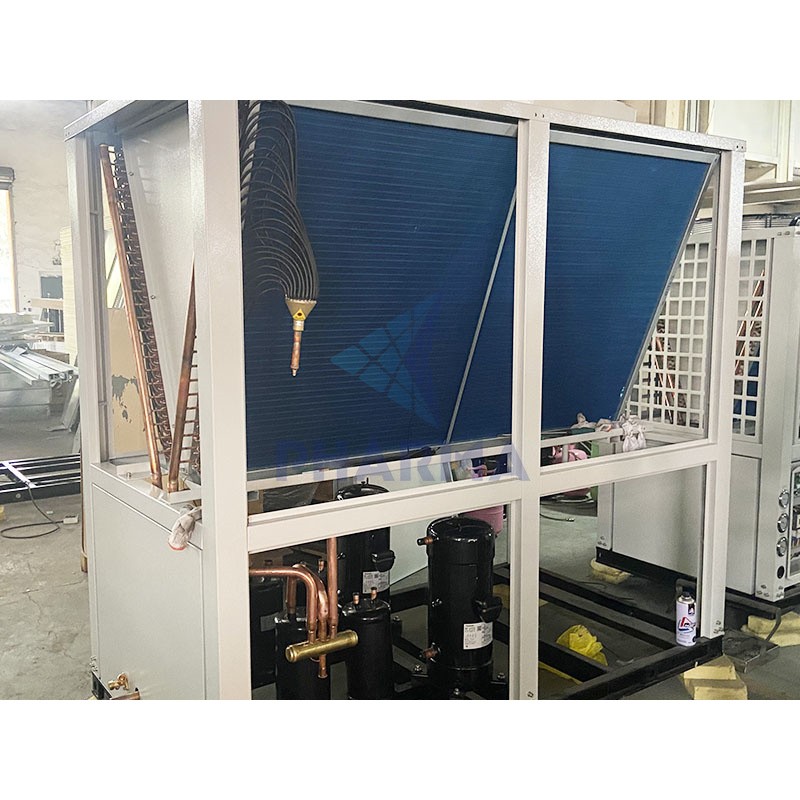

Condenser | Type | Inner grooved copper tube and aluminum fin | ||||||||
Fin type 5* | Rippled hydrophilic aluminum fin | |||||||||
Condenser fan | Type | Low noise axial type | ||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |||
Refrigerant | Refrigerant | R22/R407C | ||||||||
Refrigerant control | External balance type thermal expansion valve | |||||||||
Air filter | Initially effect plate filter | |||||||||
Dimensions | L | mm | 1400 | 1400 | 1600 | 1600 | 1850 | 1850 | 2200 | |
W | mm | 1050 | 1050 | 1200 | 1200 | 1400 | 1400 | 1800 | ||
H | mm | 1050 | 1050 | 1050 | 1050 | 1200 | 1200 | 1520 | ||
Weight | kg | 200 | 230 | 260 | 300 | 550 | 600 | 850 | ||
