Brand:OASIS
Min quantity:1件
Quantity:10件
Deliver:In 30 days

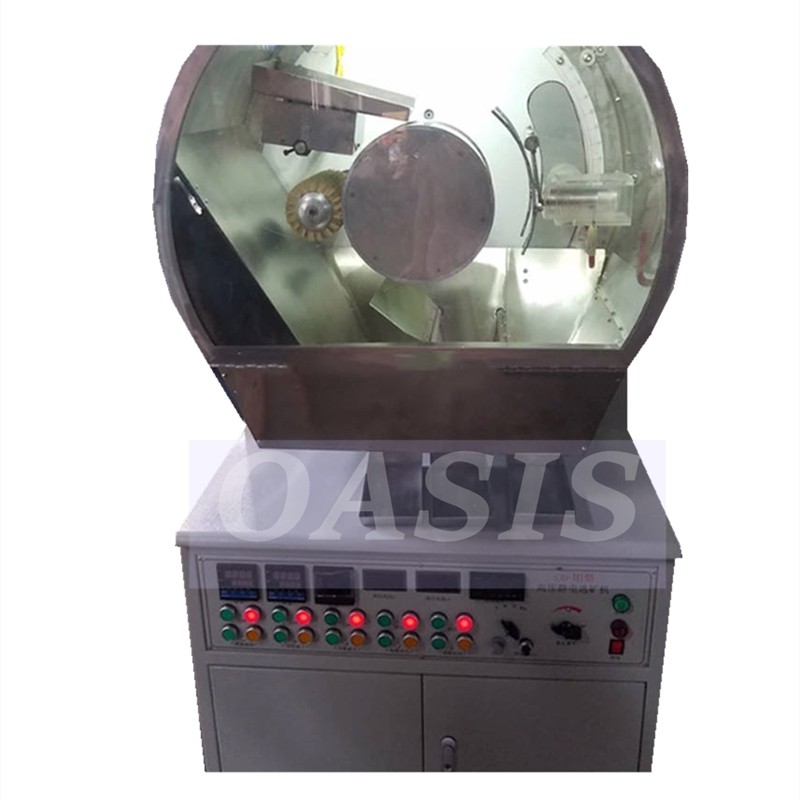

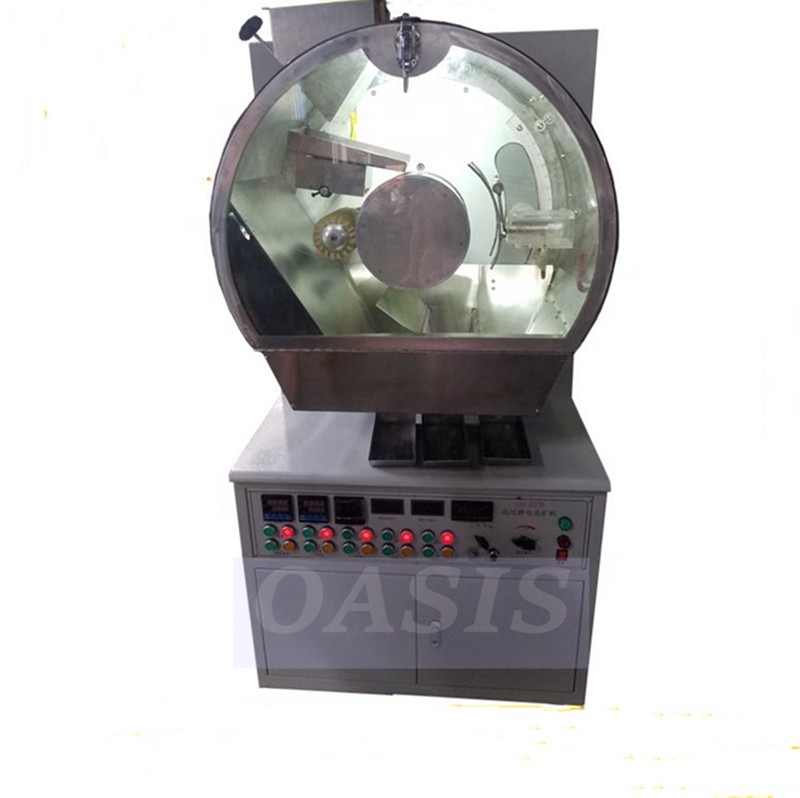

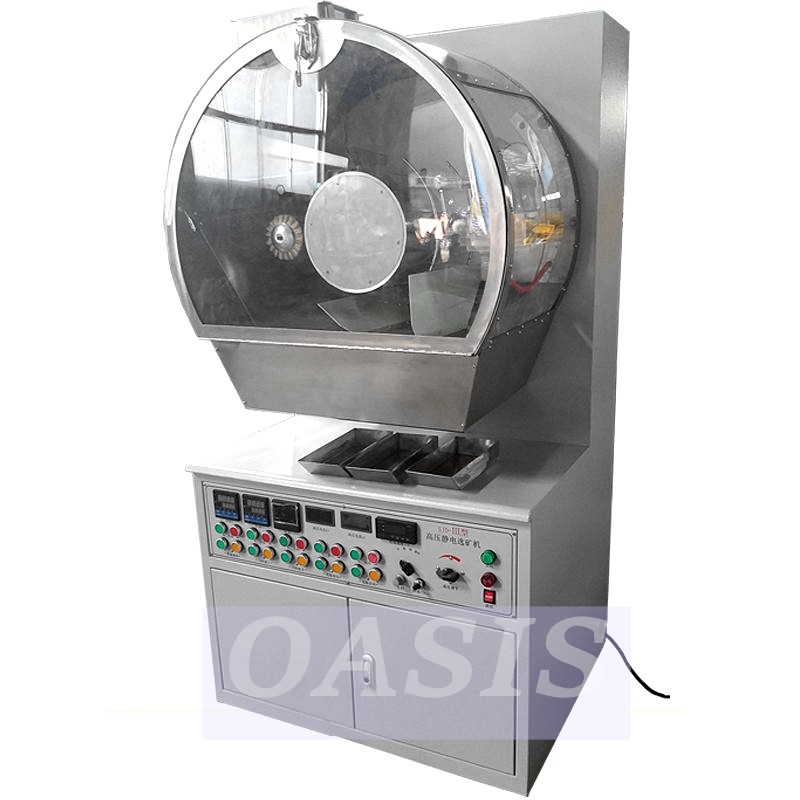

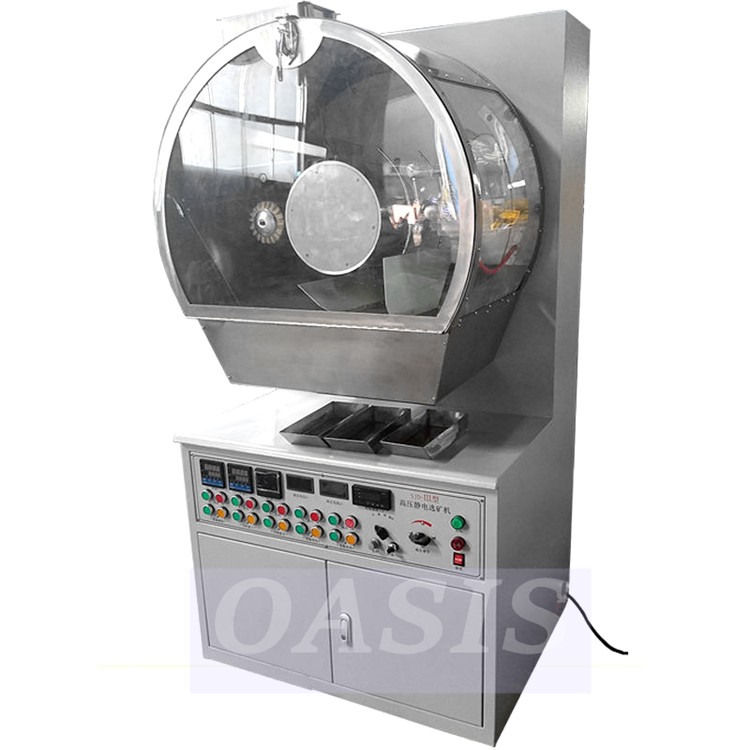

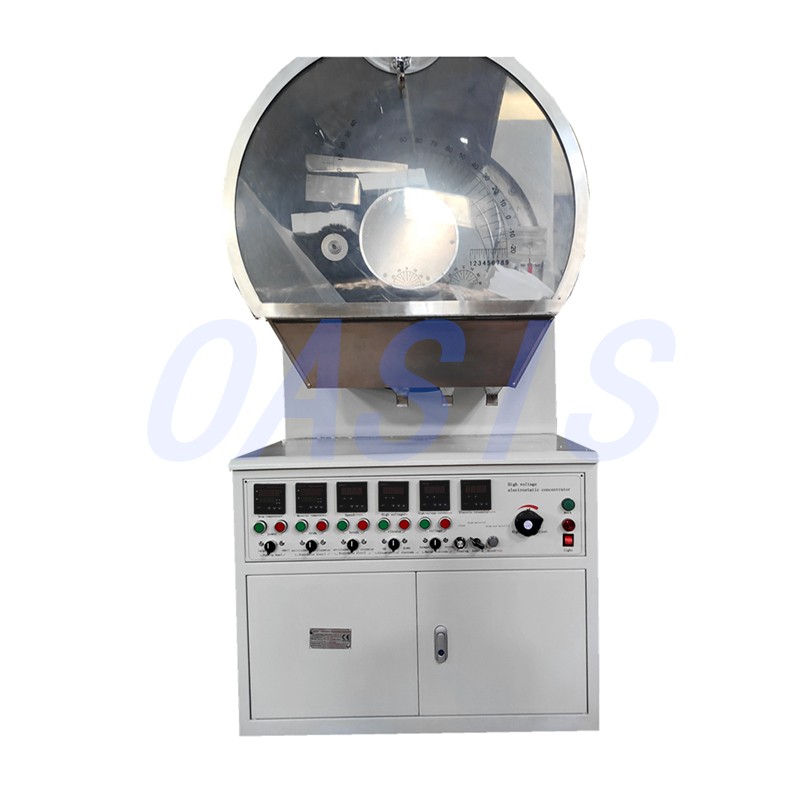

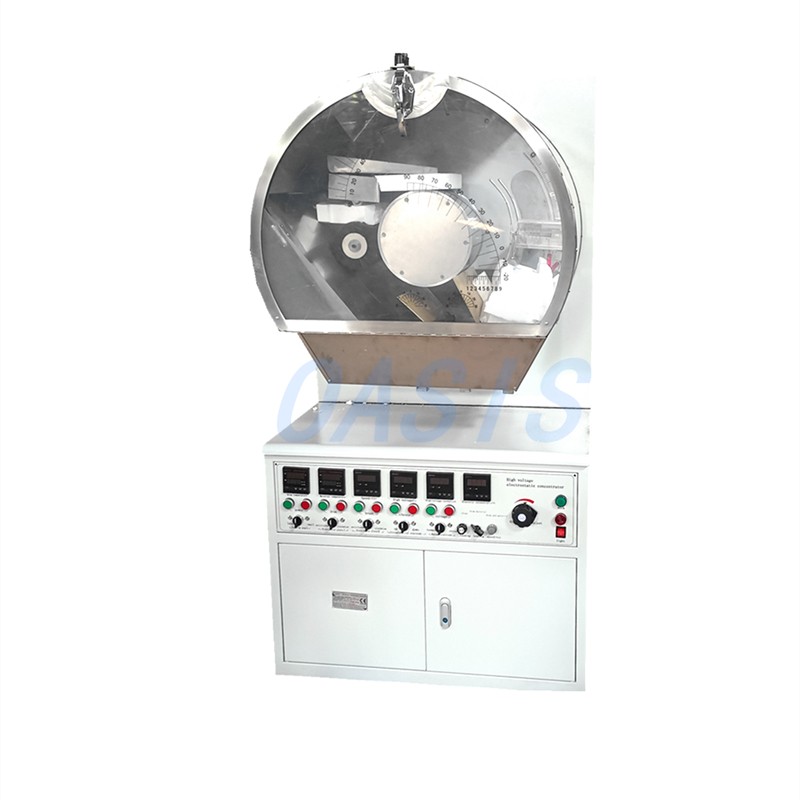

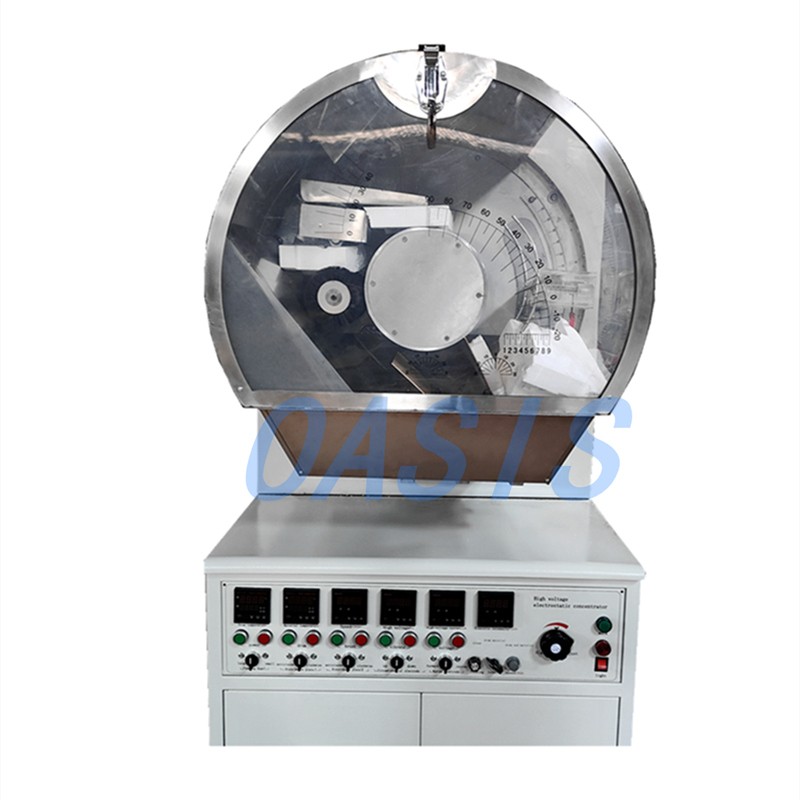

Main Features of Lab Electrostatic Separator:
1.Good working environment,high separation efficiency,high recovery 99%. 2.Low noise and long service life;Easy maintenance and low maintenance. 3.Temperature of feeding chute and drum can control automatically.
4.The electric field is a compound electric-field combination of corona and static electric field. Drum roller speed,electrode distance,voltage,angle of feeding chute,amplitude can all adjust when operate. 5.Beautiful appearance, silo and hopper are all made of stainless steel, no rust, no sticking, suitable for sorting a variety of materials. 6.The single-phase power supply is adopted, which reduces the requirements for power supply, has good safety and is convenient to use. 7.imported programmable controller, frequency converter, etc., make the electrical performance of the whole machine excellent. 8.Using digital display instrument, various measurement data display is eye-catching.
 Specification of Oasis Equipment | |||
| High voltage Electrostatic Separator/高压静电选矿机LZ250X200 | |||
| Drum tube | Φ250X200 | mm | |
| Drum rotational speed | 50-300 | r/min | |
| Brush speed | 2 times of drum rotational speed | ||
| Drum tube heating | Temperature | 50-60 | ℃ |
| Power | 900 | W | |
| Silo heating | Temperature | 100-300 | ℃ |
| Power | 900 | W | |
| Feeding chute vibrator | adjustable | ||
| Feeder size | 0.04-1 | mm | |
| Capacity | 15-30 | Kg/h | |
| High voltage power supply power | 800 | W | |
| Maximum voltage | 60 | Kv | |
| Dimension size | 920X1120X1850 | mm | |
| Weight | 400 | Kg | |
| | |||
