Brand:BIAOHUI
Deliver:In 3 days

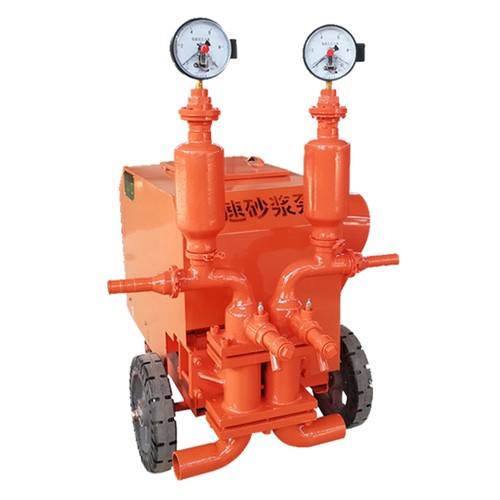

HUB6.0 double-liquid grouting pump
Summary: Features: HUB6 double-liquid mortar pump is a double-cylinder double-acting reciprocating grouting pump, which can achieve double-liquid grouting, single-liquid grouting, and also can achieve double-hole grouting at the same time. This machine uses pressure to make the easily solidified slurry into a mixture, and grout into the cracks or cavities of rocks and concrete soil at the same time, to achieve instant plugging and consolidation of soil.
Main technical parameters: maximum conveying capacity 6m ³/ h
Maximum working pressure 6Mpa
Horizontal conveying distance of mortar: 200m
Vertical conveying distance of mortar: 60m
Equipped with power of 5.5kw
Operating Weight 400kg
SUB8.0B-type double-liquid grouting pump
Summary: This machine is a new type of construction machinery developed on the basis of absorbing advanced technologies at home and abroad. The SUB8.0 double-fluid grouting pump can inject two different liquids at the same time, either single-cylinder or double-cylinder.
Main technical parameters: maximum conveying capacity 8m ³/ h
Maximum working pressure 8Mpa
Horizontal conveying distance of mortar: 300m
Vertical conveying distance of mortar: 80m
Mortar ratio: 1:2.5
Equipped with power of 11kw
Operating Weight 850kg
