Brand:BIAOHUI
Deliver:In 3 days

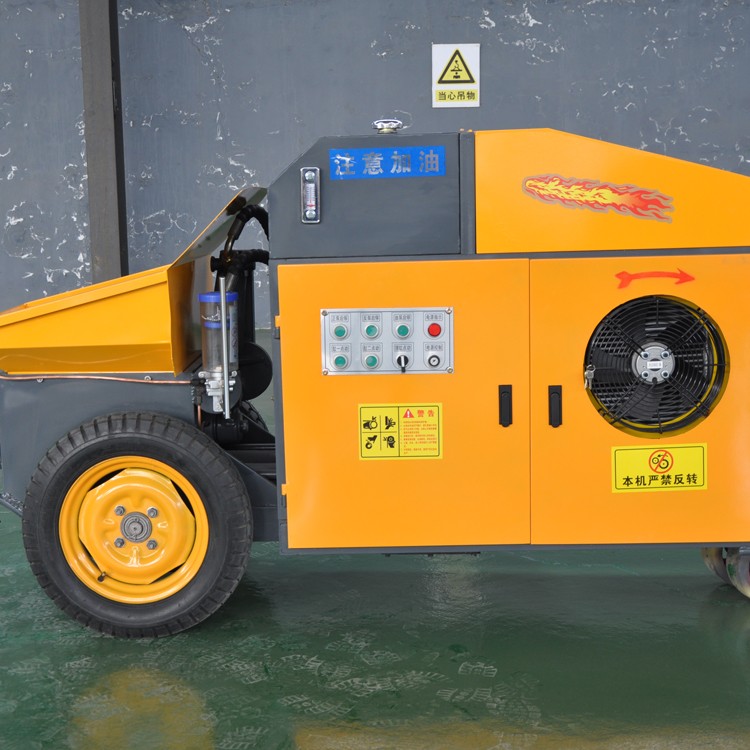

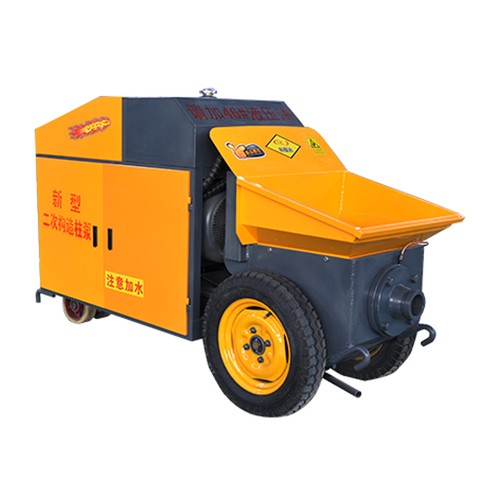

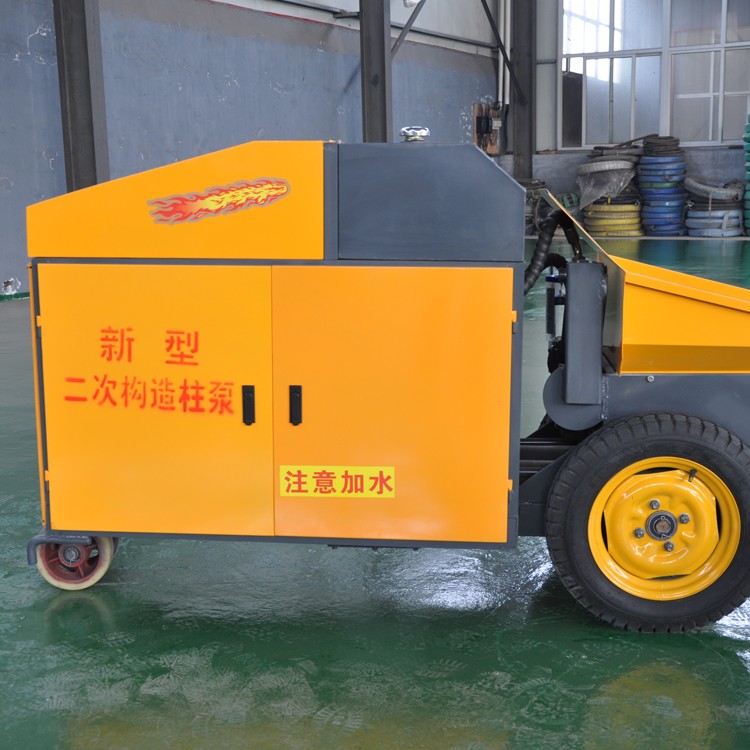

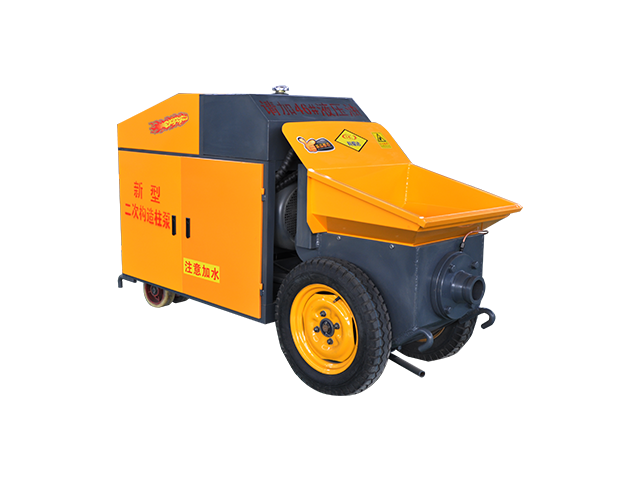

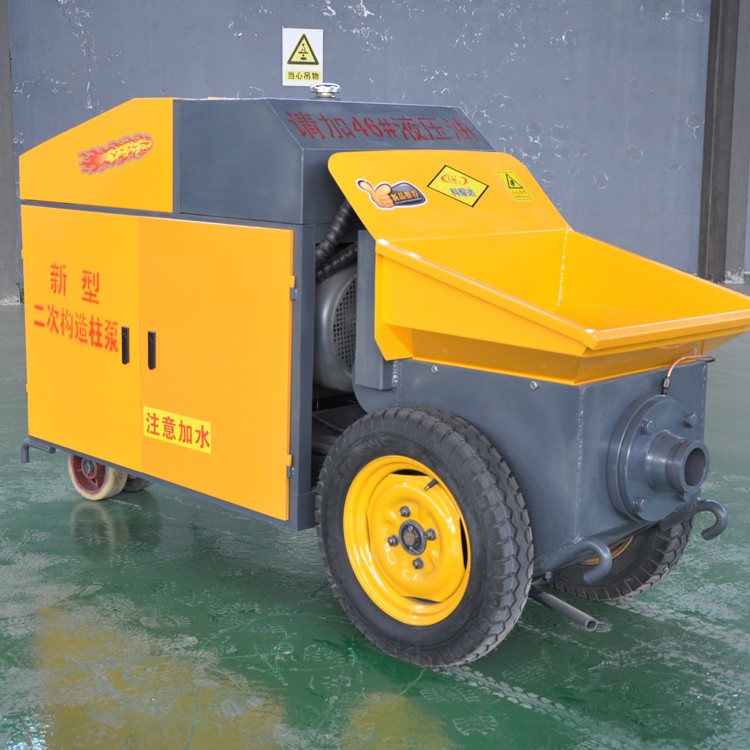

Secondary structure column pump
Summary: the maximum theoretical conveying capacity of main technical parameters is 6m ³/ H Working form S pipe valve feeding height 0.7m bone particle size 0.5-1cm hydraulic system form electric control form maximum working pressure 7Mp hydraulic oil cooling air cooling vertical conveying distance 30m horizontal conveying distance 80m motor power 15kw overall weight 450kg overall dimension 1800mm × 600mm × 1070mm
Main technical parameters | |
Maximum theoretical conveying capacity | 6m³/h |
Working form | Spipe valve |
Feeding height | 0.7m |
Bone particle size | 0.5-1cm |
Hydraulic system type | Electric control form |
Maximum working pressure | 7Mp |
Hydraulic oil cooling | forced air cooling |
Vertical conveying distance | 30m |
Horizontal conveying distance | 80m |
Motor power | 15kw |
Operating Weight | 450kg |
Overall dimension | 1800mm×600mm×1070mm |

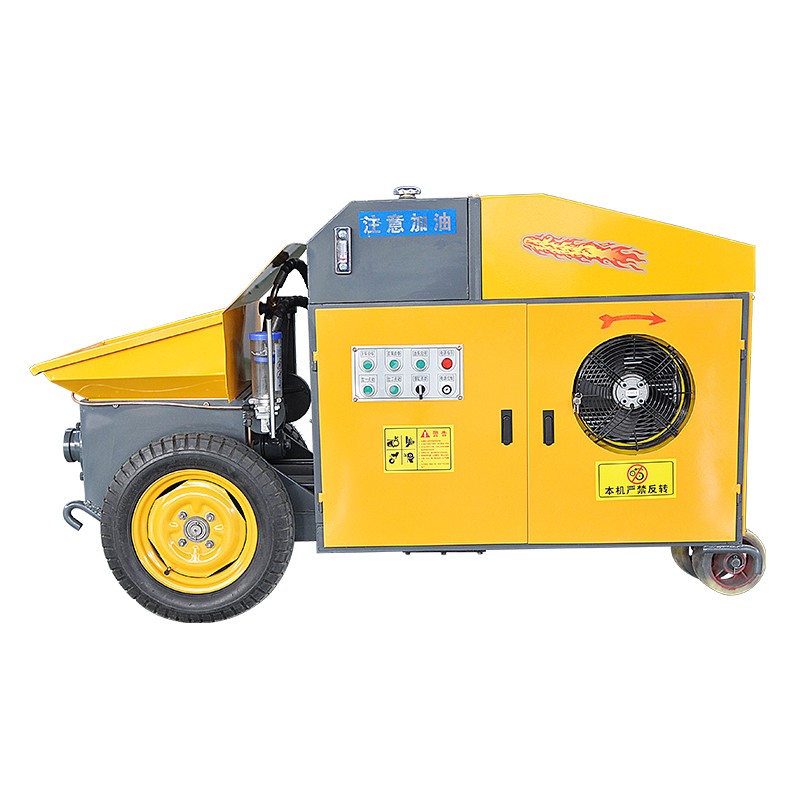

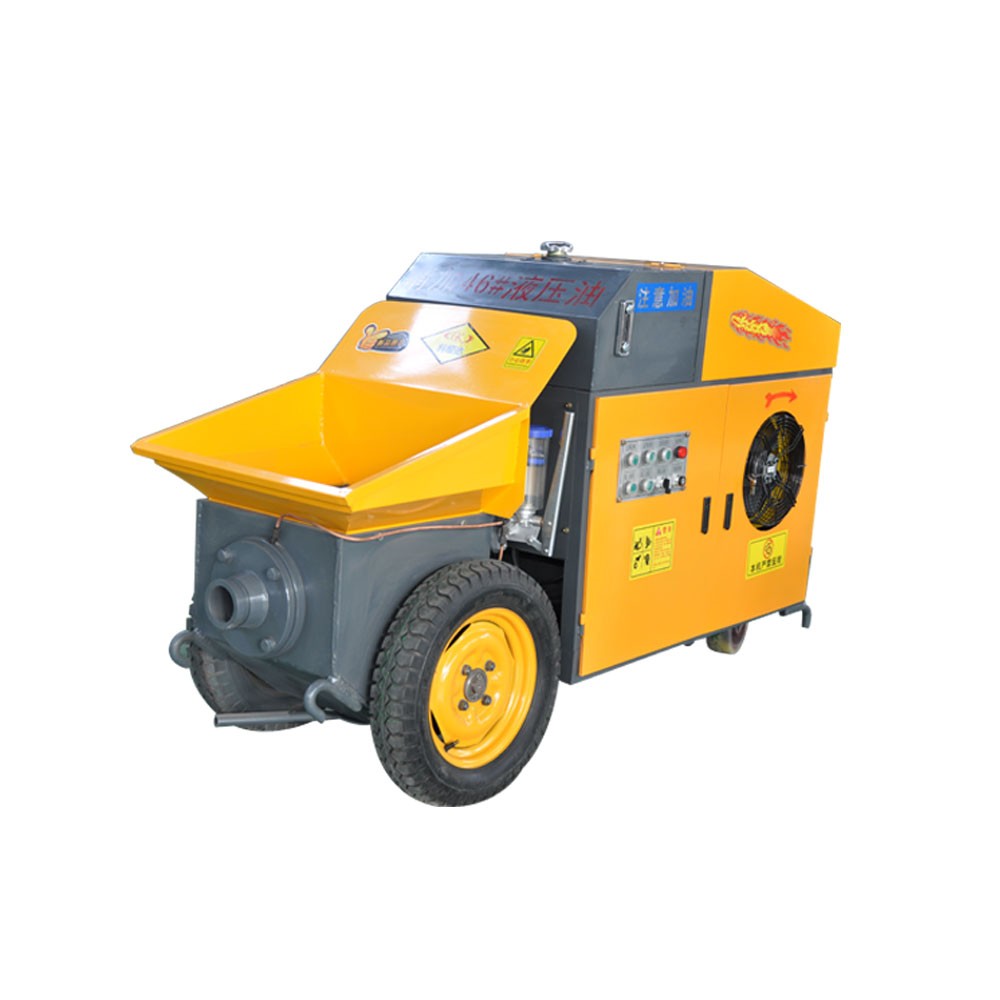

Horizontal secondary structure column pump
Summary: The theoretical workload is 6m ³/ H Working form S pipe valve feeding height 0.7m bone particle size 1-2cm hydraulic system form electric control form working pressure 7mpa hydraulic oil cooling
Main technical parameters | |
Maximum theoretical conveying capacity | 6m³/h |
Working form | Spipe valve |
Feeding height | 0.7m |
Bone particle size | 1-2cm |
Hydraulic system type | Electric control form |
Maximum working pressure | 7Mp |
Hydraulic oil cooling | forced air cooling |
Vertical conveying distance | 30m |
Horizontal conveying distance | 80m |
Motor power | 15kw |
Operating Weight | 450kg |
Overall dimension | 1800mm×600mm×1070mm |
