Brand:BIAOHUI
Deliver:In 3 days

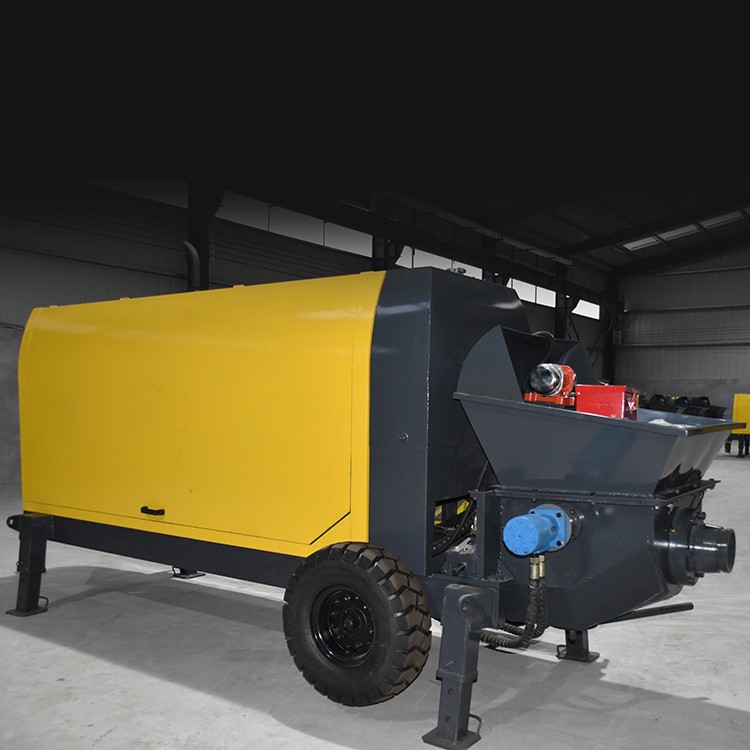

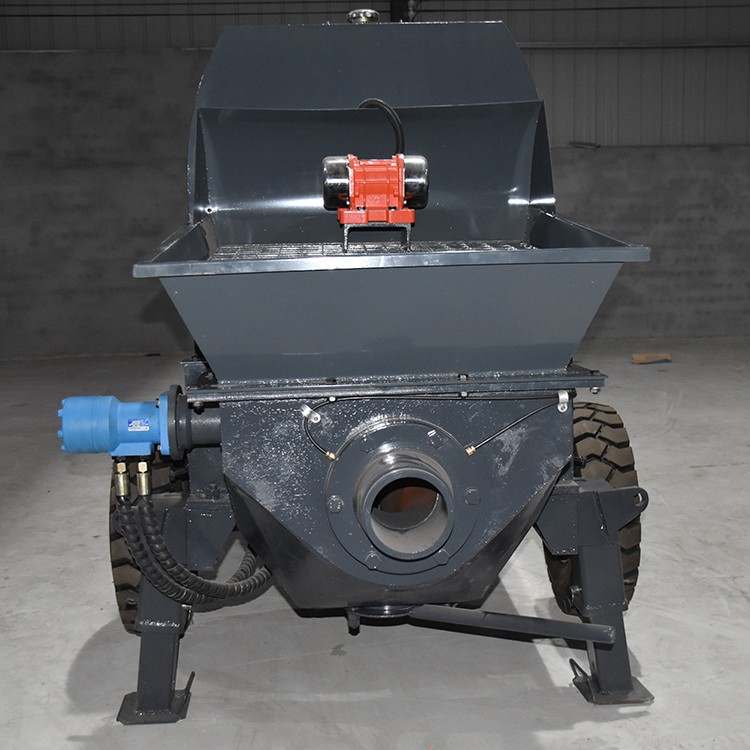

BS-40D diesel concrete pump
Summary: technical parameters slurry output 25m ³- 30m ³/ H Theoretical delivery pressure 15mpa Distribution valve form S Pipe valve outlet diameter Ф 125mm feeding height 800mm vertical conveying distance 120-160m horizontal conveying distance 400m rated voltage 24v diesel engine model Weichai 4105 main power 56KW
| technical parameter | |
| Pulp output | 25m³-30m³/h |
| Theoretical delivery pressure | 15mpa |
| Distribution valve type | Spipe valve |
| Outlet diameter | Ф125mm |
| Feeding height | 800mm |
| Vertical conveying distance | 120-160m |
| Horizontal conveying distance | 400m |
| Rated voltage | 24v |

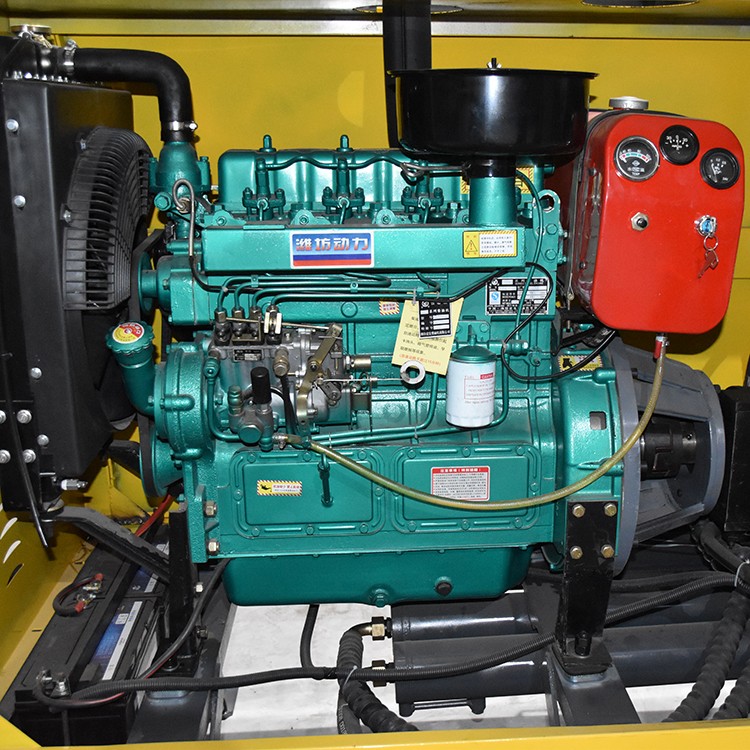

| Diesel engine model | 潍柴4105 |
| Initiative | 56KW |
| Hydraulic oil circuit type | Open loop |
| Maximum oil pressure of the system | 31.5Mpa |
| Hydraulic tank volume | 100L |
| Maximum allowable aggregate size | 20cm |
| Inner diameter of conveying pipe | Ф100/Ф80 |
| weight | 1900kg |
| Towing speed | ≤8km/h |
| Overall dimension | 3800×1300×1500mm |

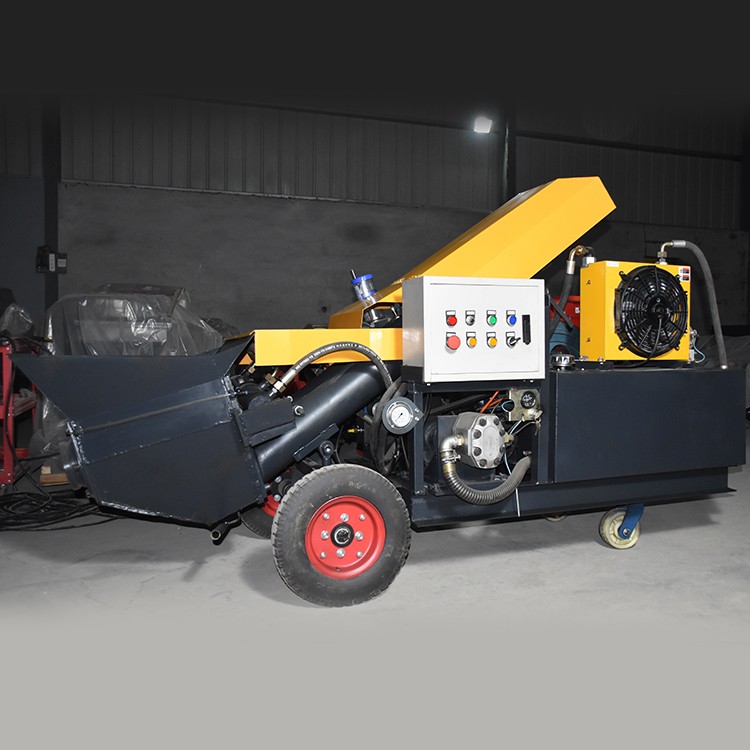

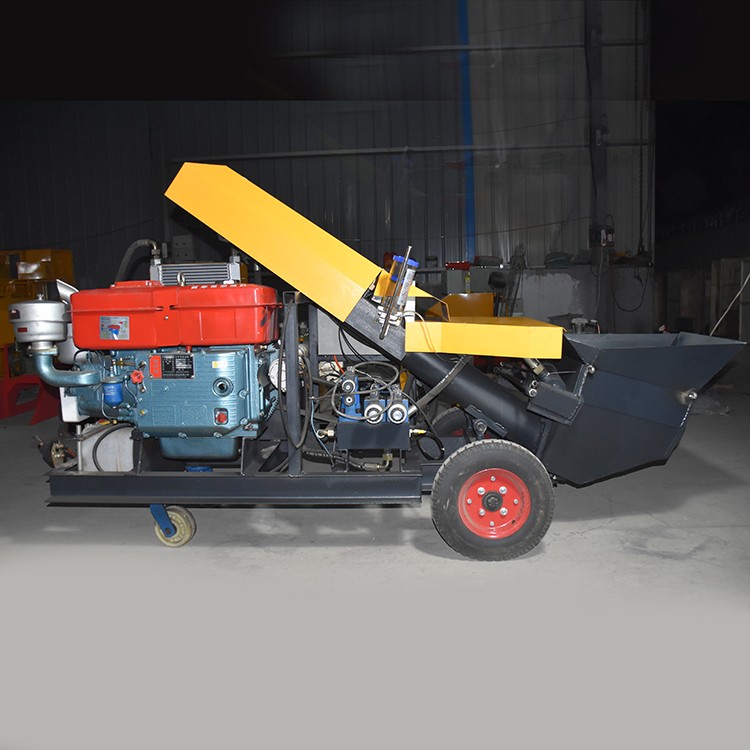

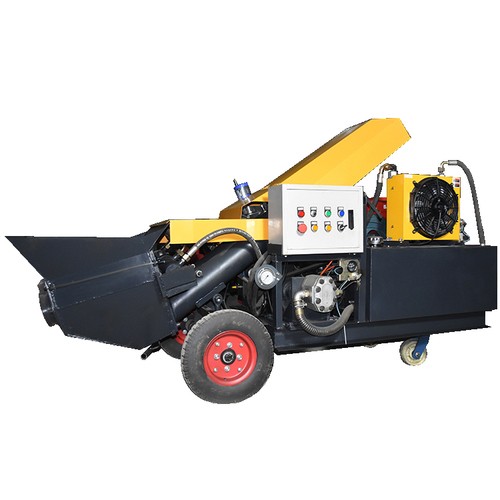

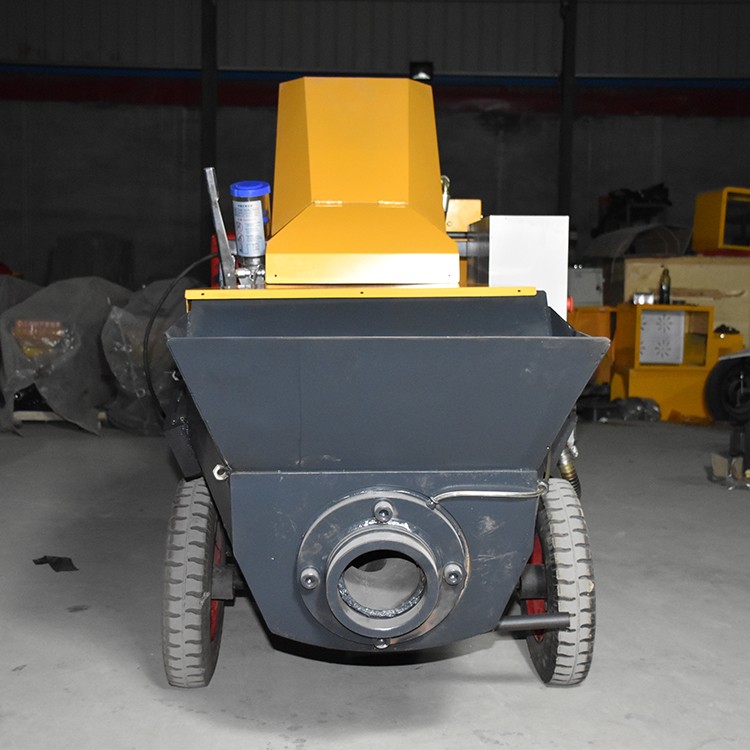

Diesel inclined large particle delivery pump
Summary: main technical parameters: slurry output 4-6 m ³/ H Vertical conveying height 15-20m horizontal conveying distance 60m conveying pipe diameter 100mm aggregate diameter 0.5-3cm diesel engine horsepower 25hp working pressure 8Mpa overall weight 500kg product size 2400x900x1270mm
Main technical parameters | |
Pulp output | 4-6m³/h |
Vertical conveying height | 15-20m |
Horizontal conveying distance | 60m |
Diameter of conveying pipe | 100mm |
Aggregate diameter | 0.5-3cm |
Diesel engine horsepower | 25马力 |
working pressure | 8Mpa |
Operating Weight | 500kg |
Product size | 2400x900x1270mm |
