Brand:BIAOHUI
Deliver:In 3 days
High temperature resistant steam hose

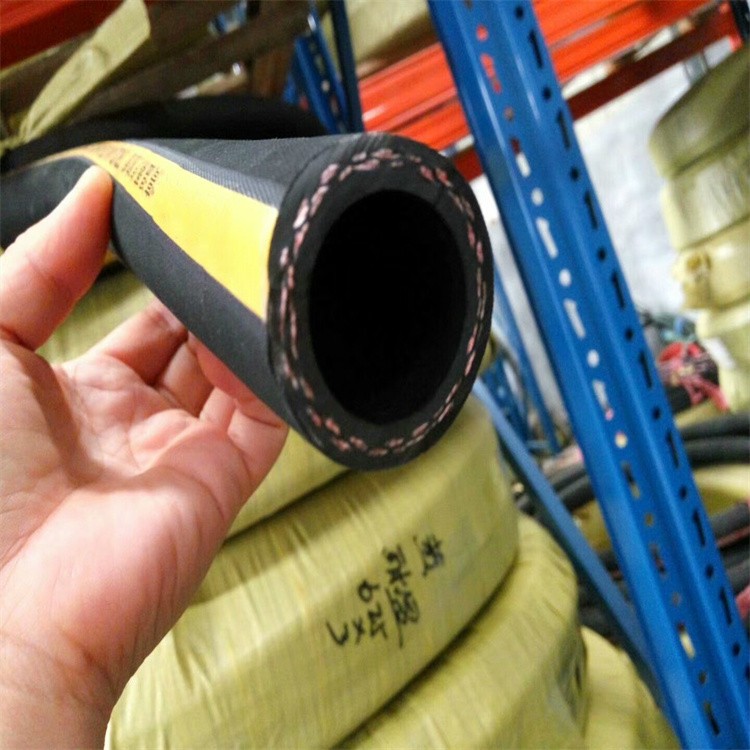

Steam hose with cloth
Structure: The inner and outer rubber layers of the cloth jacket steam hose are made of synthetic rubber with excellent heat resistance, and the middle is pure cotton canvas reinforced layer. The pipe body is soft, light, flexible, and high heat resistance.
Purpose: suitable for conveying saturated steam or superheated water not higher than 180 ℃.
Features: The rubber layer has good heat resistance, and the bursting pressure of the hose is not less than 10 times of the working pressure.
Armored steam hose
Purpose: suitable for conveying saturated steam or superheated water not higher than 180 ℃.
characteristic:
The outer surface of the hose is wrapped with galvanized metal spiral wire, which can effectively increase the strength of the pipe body and improve the pressure bearing capacity.
It is suitable for occasions with complex working conditions and high requirements for safe operation.
Note: The specification of the steam hose with cloth clip: it can be produced from a small diameter of 6 mm to a large diameter of 152 mm, with a fixed length of 20 meters and 40 meters

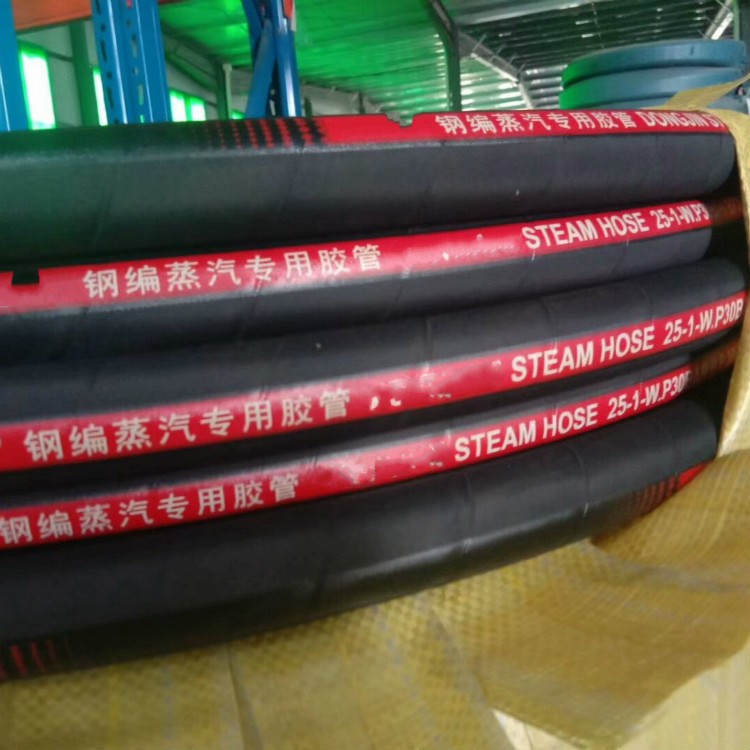

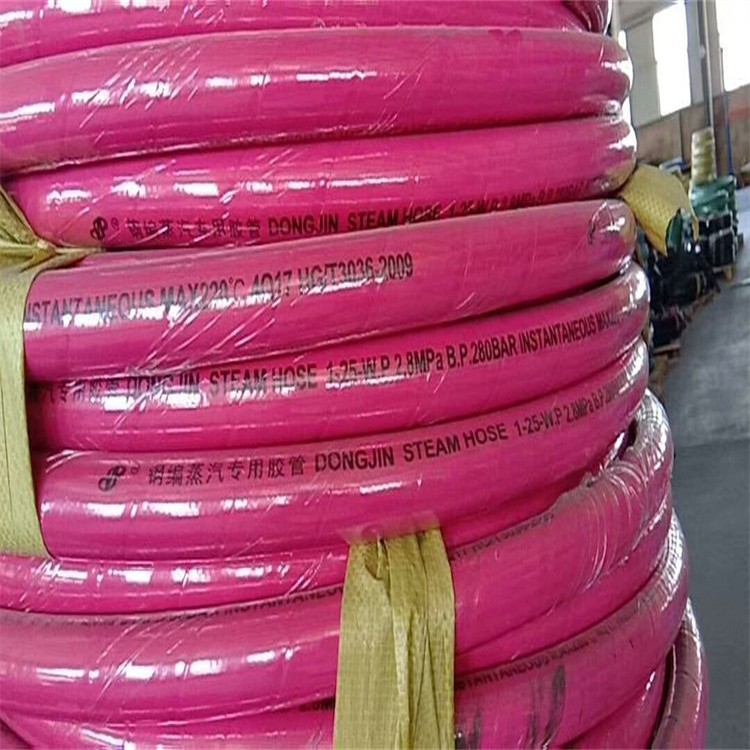

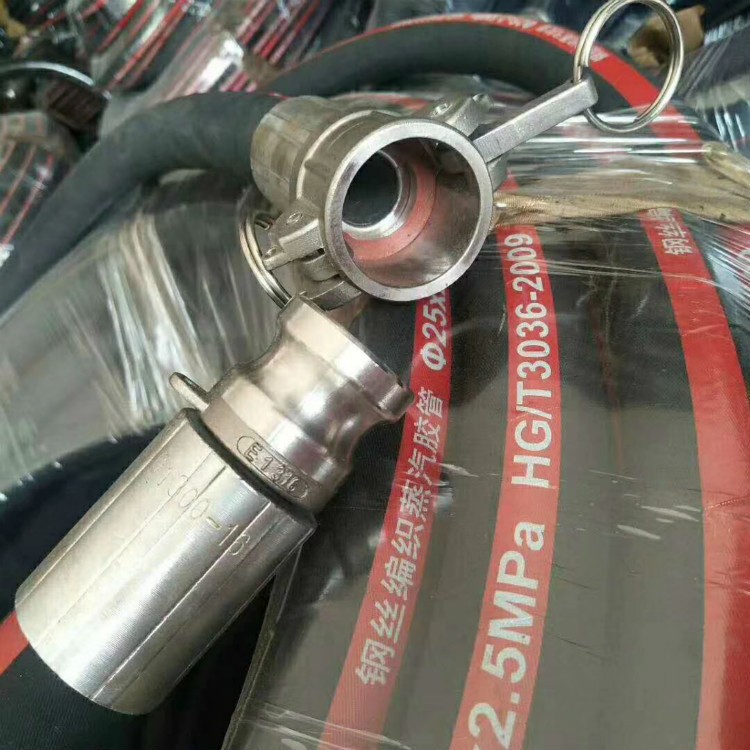

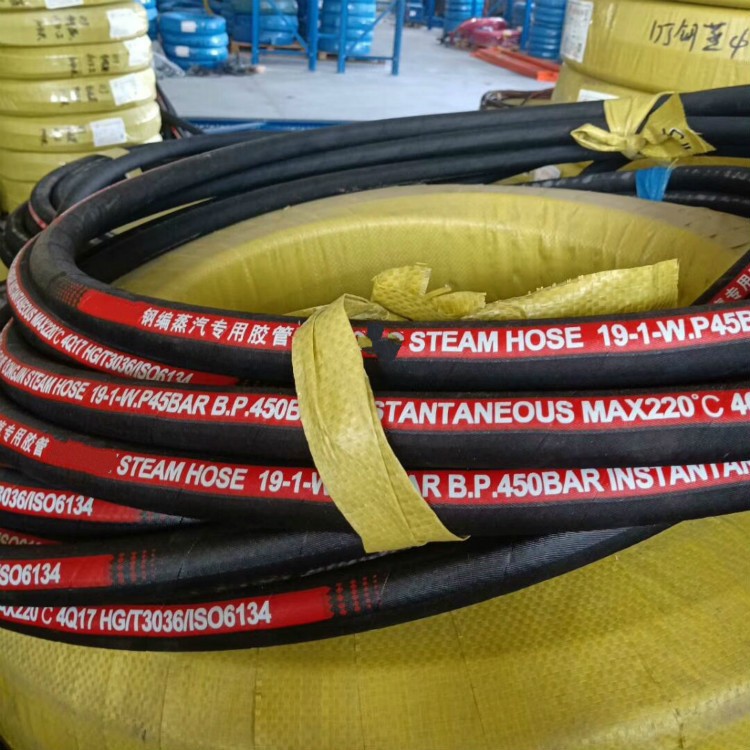

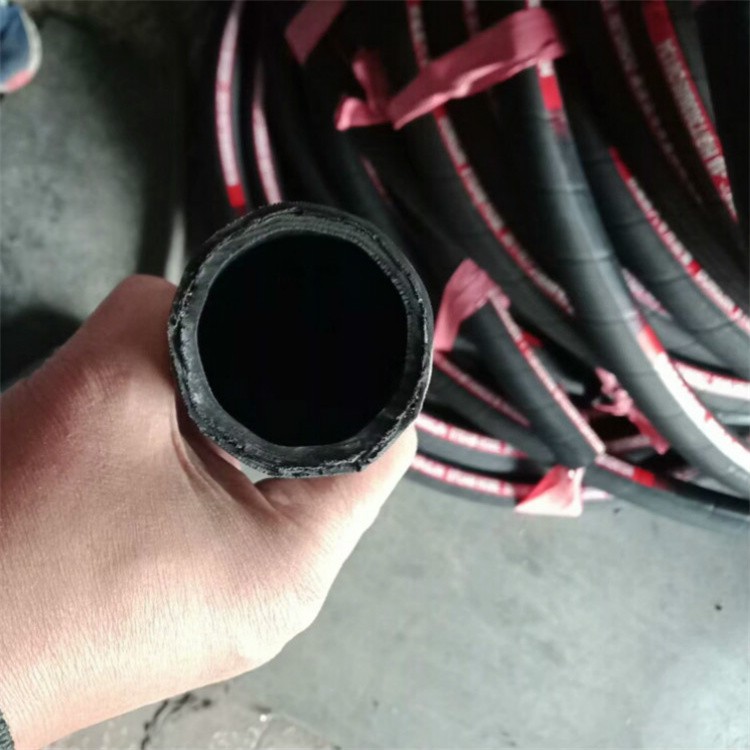

Steel wire braided steam hose
Product category: Class I - outer rubber is not oil resistant Class II - outer rubber is oil resistant
Product model:
Type 1 - the maximum working steam pressure is 0.3Mpa (3bar), and the corresponding steam temperature is 144 ℃;
Type 2 - the maximum working steam pressure is 0.6Mpa (3bar), and the corresponding steam temperature is 165 ℃;
Type 3 - the maximum working steam pressure is 1.0Mpa (3bar), and the corresponding steam temperature is 184 ℃;
Type 4 - the maximum working steam pressure is 1.6 Mpa (3 bar), and the corresponding steam temperature is 204 ℃;
Type 5 - the maximum working steam pressure is 1.6 Mpa (3 bar), the corresponding steam temperature is 204 ℃, and it can be used continuously.
Structure type: the rubber hose is composed of inner rubber layer, middle rubber layer, one or more layers of high-strength steel wire braiding or winding layer and outer rubber layer which are resistant to pressure steam aging.
Main product use: It is used for conveying high temperature, high pressure steam or superheated water to realize high temperature transmission or heat transfer.
Working temperature: 140 ℃ - 204 ℃
Working pressure: 0.3Mpa (3bar) - 1.6Mpa (16bar), safety pressure=working pressure × 10。
ID（mm） | W.P（Mpa） | B.P（Mpa） | Hose length | ||||||
Nominal size | tolerance | size（m） | tolerance（mm） | ||||||
13 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
16 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
19 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
25 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
32 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
38 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
51 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
64 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
76 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
