8 Inch Sand Dredge Pump
Company Introduction:
Sand pump is also renamed as dredge pump are highly used for dredging and reclamation, sand pump manufactured by China Do Pump includes inch sand dredge pump, submersible dredge pump both of electric submersible dredge pump and hydraulic sand pump, slurry pump, dredging equipment. Inch dredge pump can be installed as on board dredge pump, sand booster pump, ladder pump or submersible dredge pump, Contact China Dredge Pump for detail.
Overview
| Place Of Origin | Shijiazhuang, China | Brand | DO PUMP |
| Model Number | 8 Inch Sand Dredge Pump | Structure | Centrifugal Horizontal Sand Pump |
| Usage | Dredging, Reclamation, Mining, Booster Station | Power | Diesel Engine, Motor |
| Capacity | 200-950 Cubic Meters Per Hour | Head | 12-44 Meters |
| Speed | 500-980 RPM | NPSHr | 1.5-4.5 m |
| Inlet | 10 Inch | Discharge | 8 Inch |
| Material | High Chrome, Hard-Ni, Customized | Efficiency | 30-65% |
Standard Material: High Chrome Alloy
Material Chemical Weight %
| Description | Material Code | C | Mn | Si | Ni | Cr | Mo | Cu | P | V | S | Description | Hardness |
| High Chrome Alloy | A05 | 2.92 | 0.98 | 0.54 | 0.8 | 27 | ≤0.8 | ... | 0.062 | ... | 0.051 | 27% Cr | 58-62 HRC |

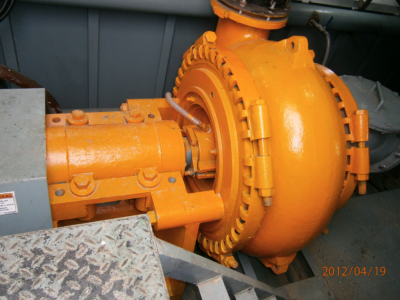

Sand Pump Structure
Sand Gravel Pump Performance Curve
