Brand:BIAOHUI
Deliver:In 3 days

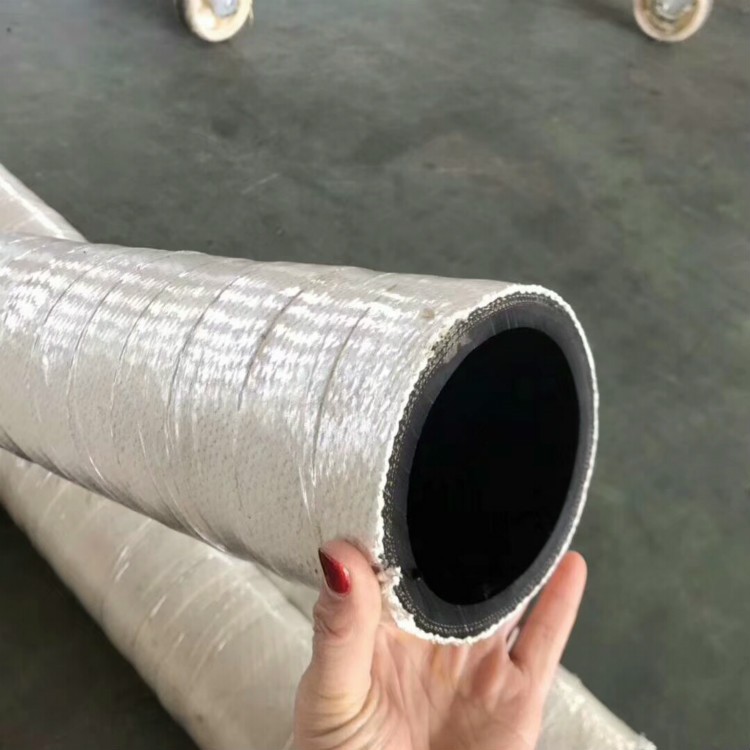

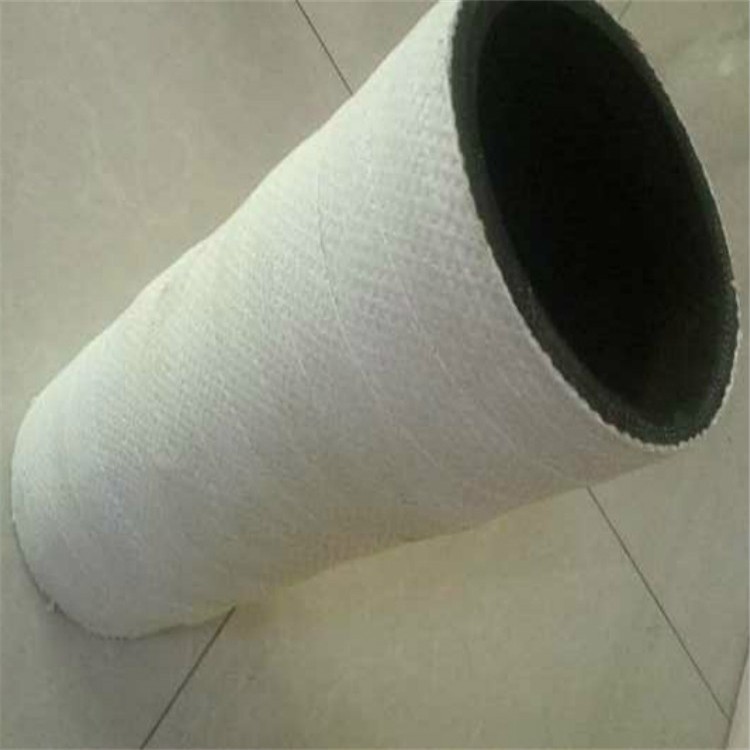

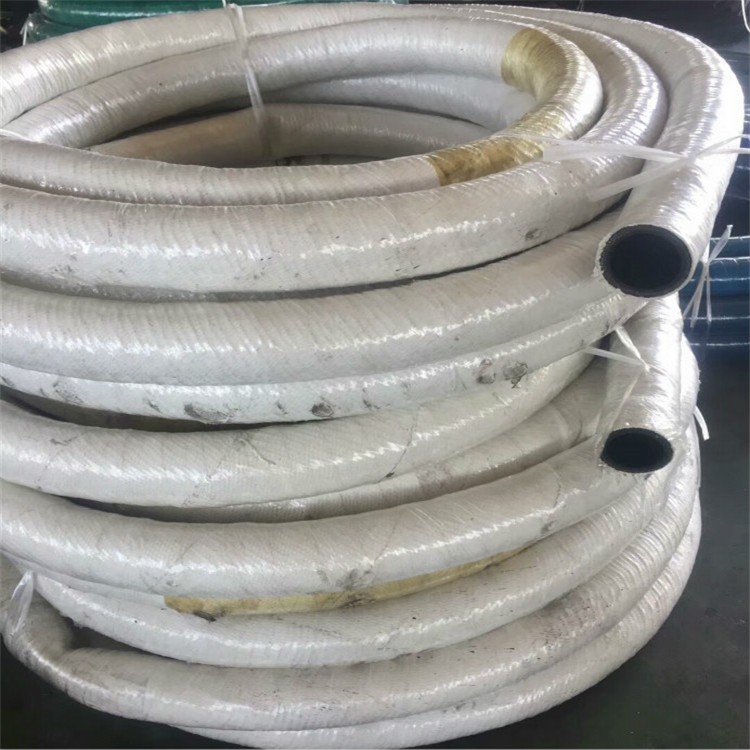

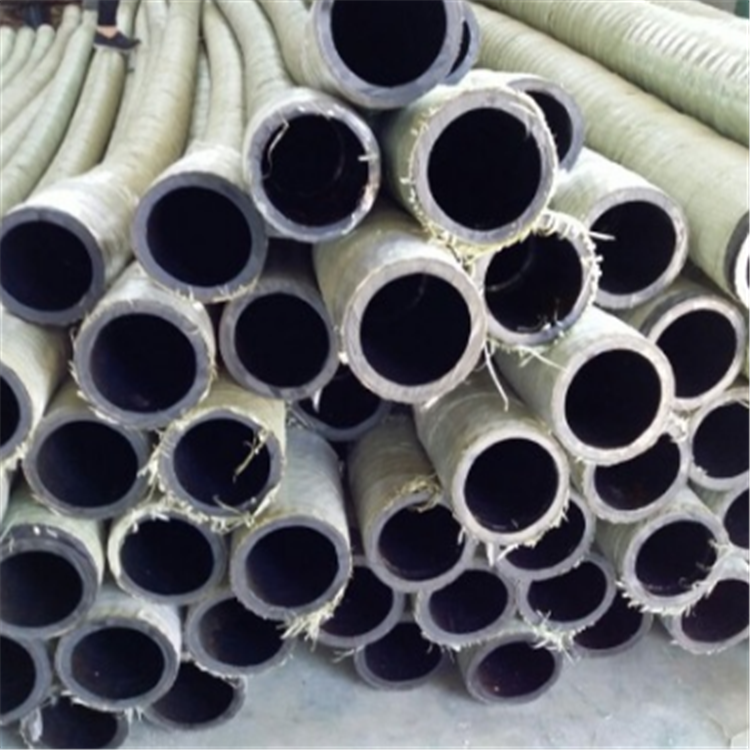

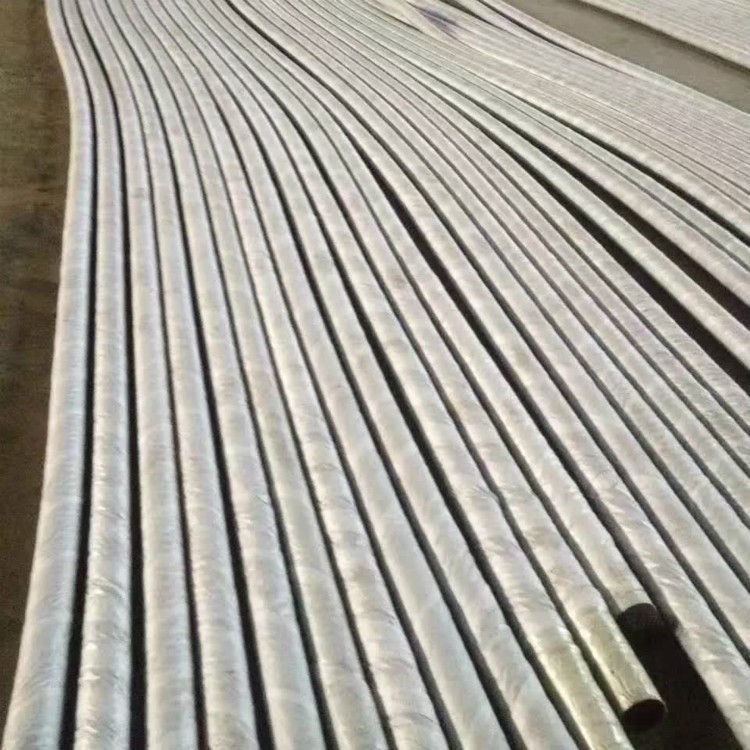

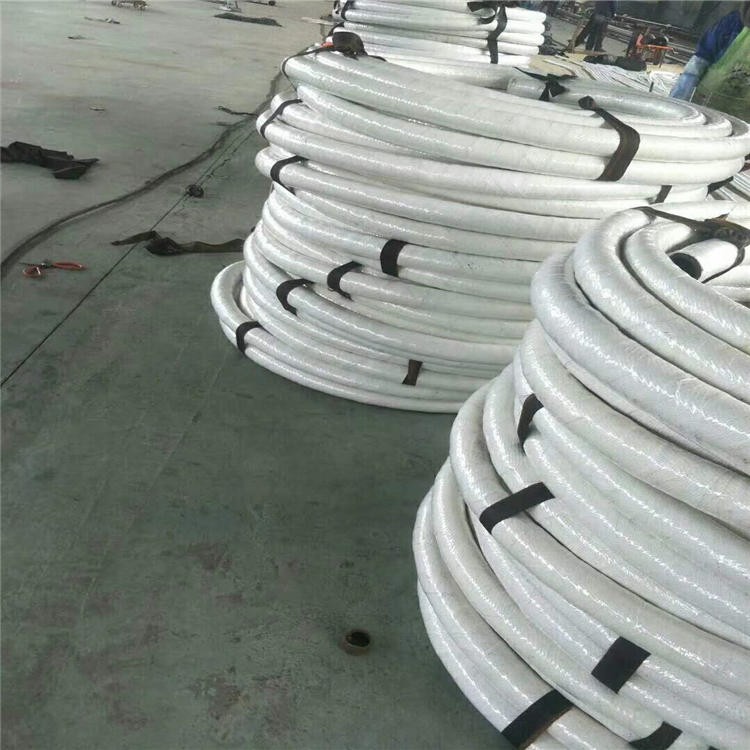

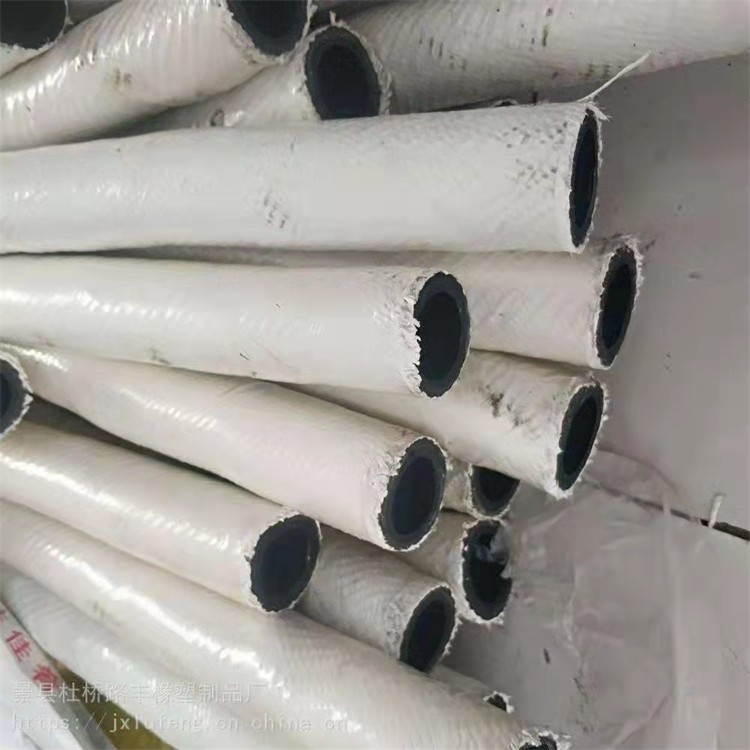

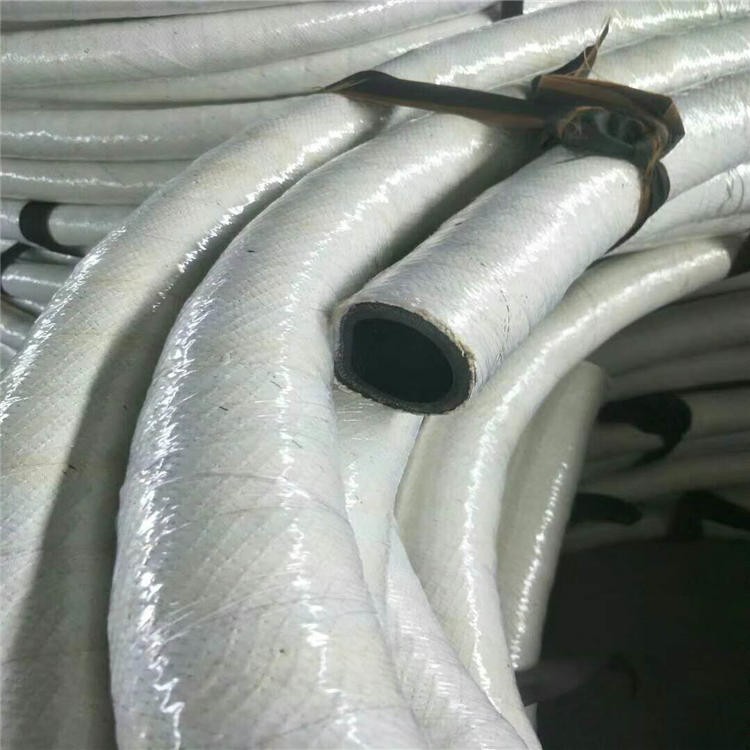

Non-Conductive Furnace Door Hose is an industrial cooling/water hose for furnace in foundry, glasswork, steel mill and other worksites. While these require the hose to bear extreme high temperature. The durable, heat resistant aramid cover withstands steel splashes and external heat radiation to 572°F (300°C). It is non conductive with a min resistance of one megaohm per inch at 1000 volts DC.
Furnace Door Hose Construction:
Tube: EPDM, white, smooth and non-conductive.
Reinforce: 2 ply of synthetic fabric.
Cover: Glass fibre ply impregnated with heat and flame resistant synthetic rubber.
Application:
The furnace hose is to convey cooling water to furnace doors in steel mills, glass plants and relevant places.
Temperature:
-40℃(-40°F) to +130℃(+266°F), Cover to +302℃(+575°F)
Characteristic:
● Superior heat resistance cover resists heat up to +575°F.
● Resists heat ,open flamee and splashes of white hot metal to +575°F( +302℃).
● EPDM tube is non- conductive.
内径（mm） | 工作压力 | 对应爆破压力 | 胶管长度 | ||||||
公称尺寸 | 公差 | MPA | MPA | 尺寸m | 公差mm | ||||
13 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
16 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
19 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
25 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
32 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
38 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
51 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
64 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
76 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
