Brand:HBSX
Voltage:220V/380V/440V/as requirements
Core Components:PLC,Pump,molds
Warranty of core components:18 months
Min quantity:1set
Quantity:1set
Deliver:In 20 days

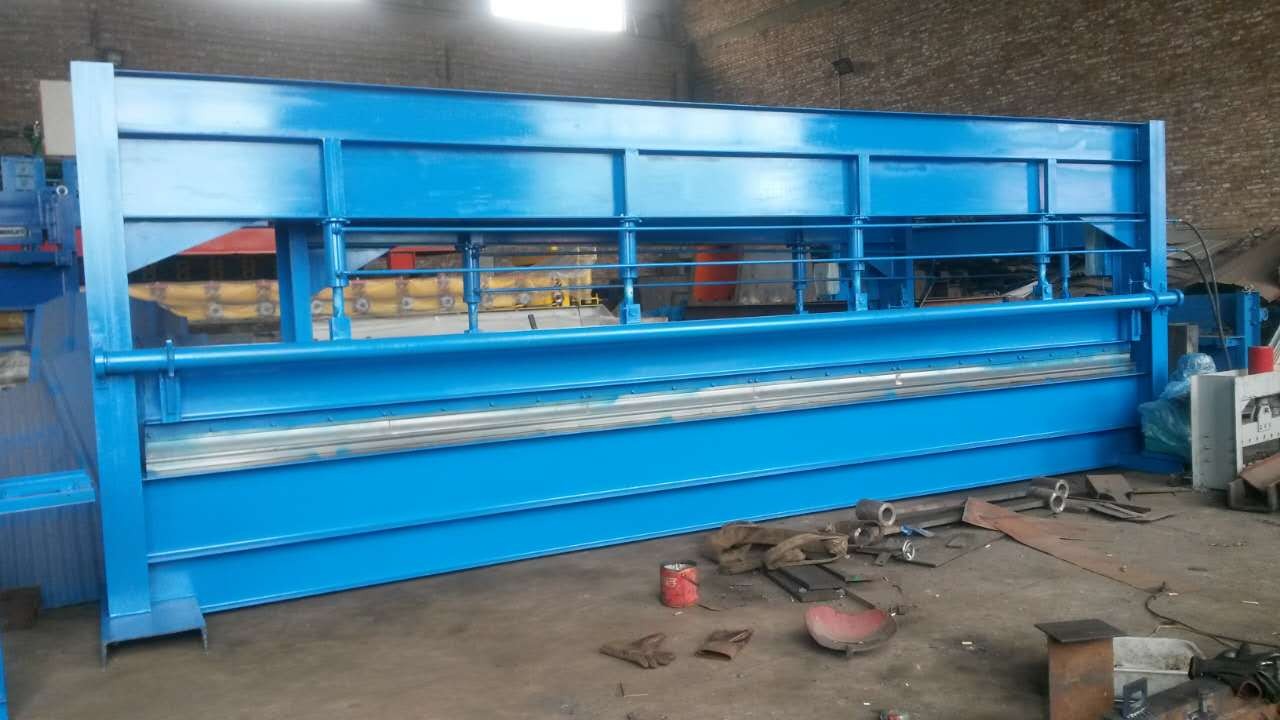

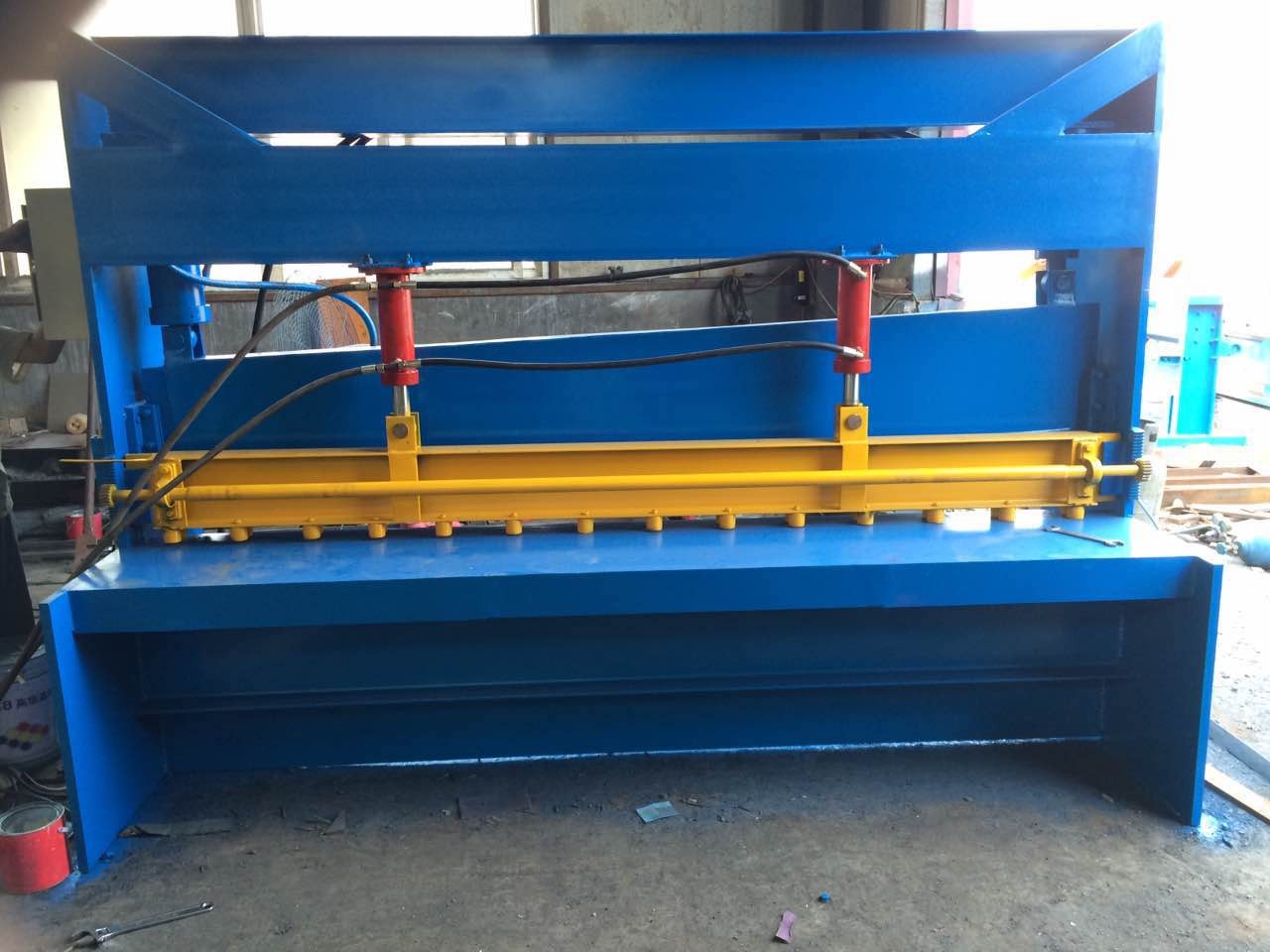

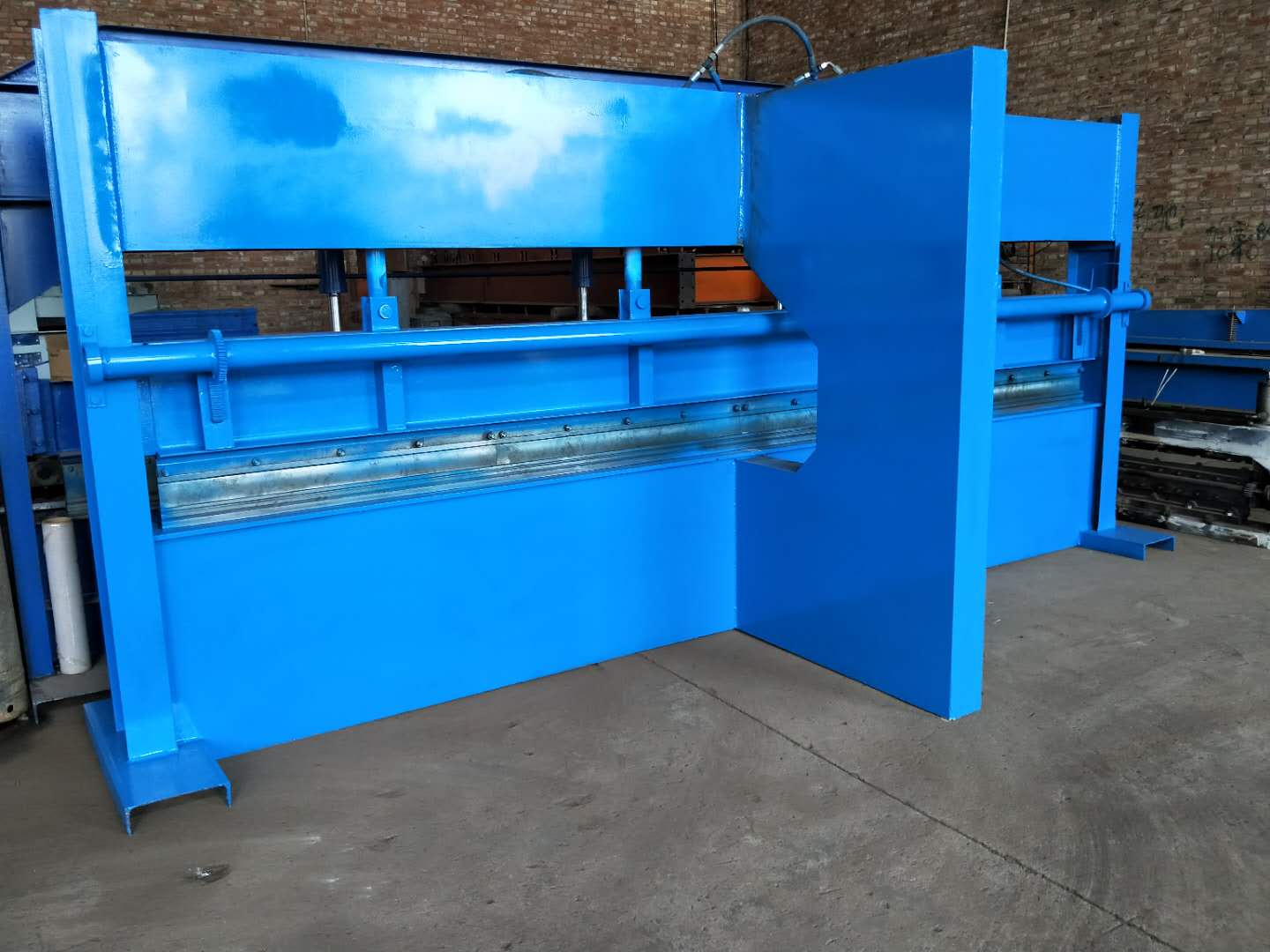

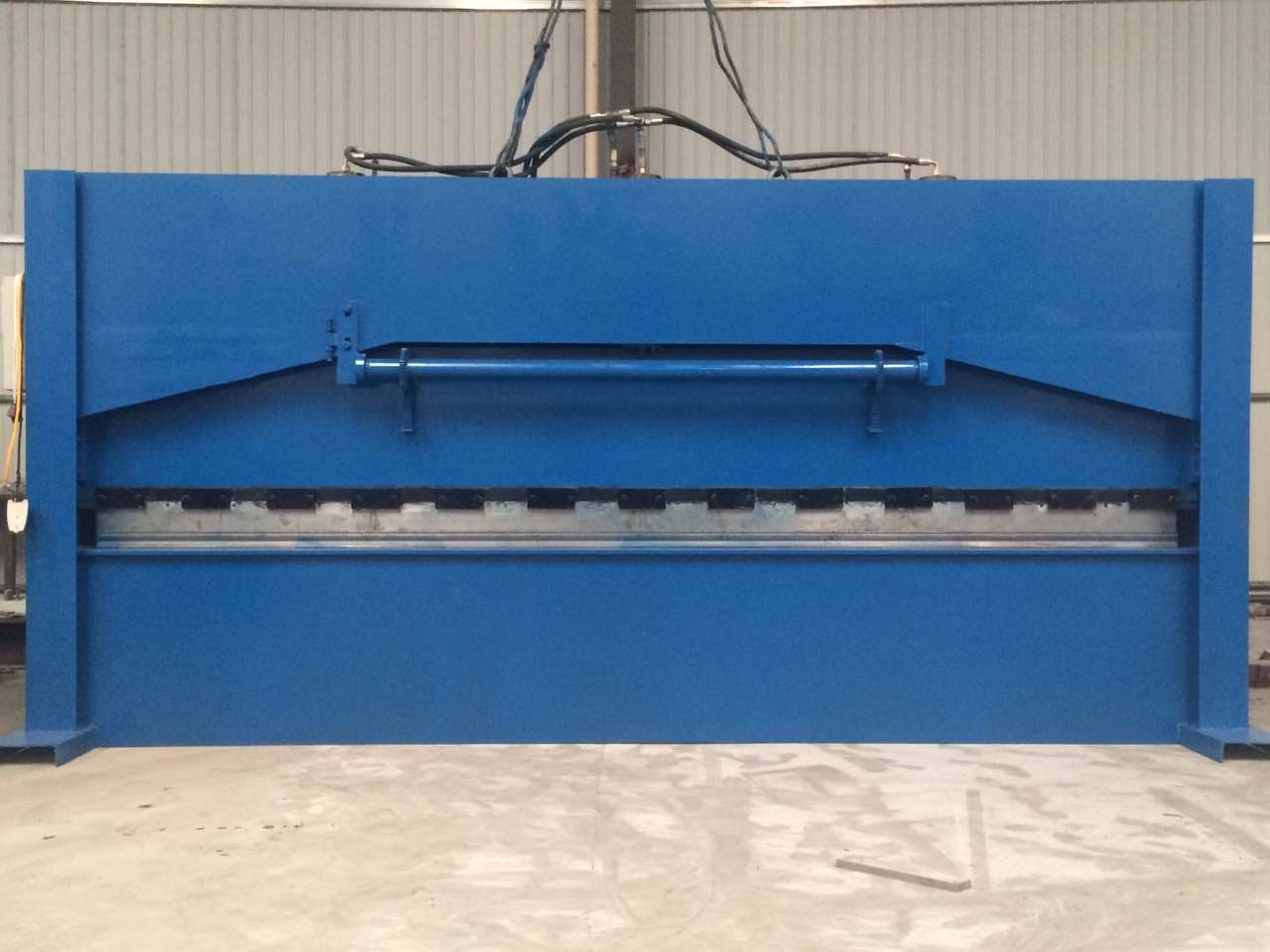

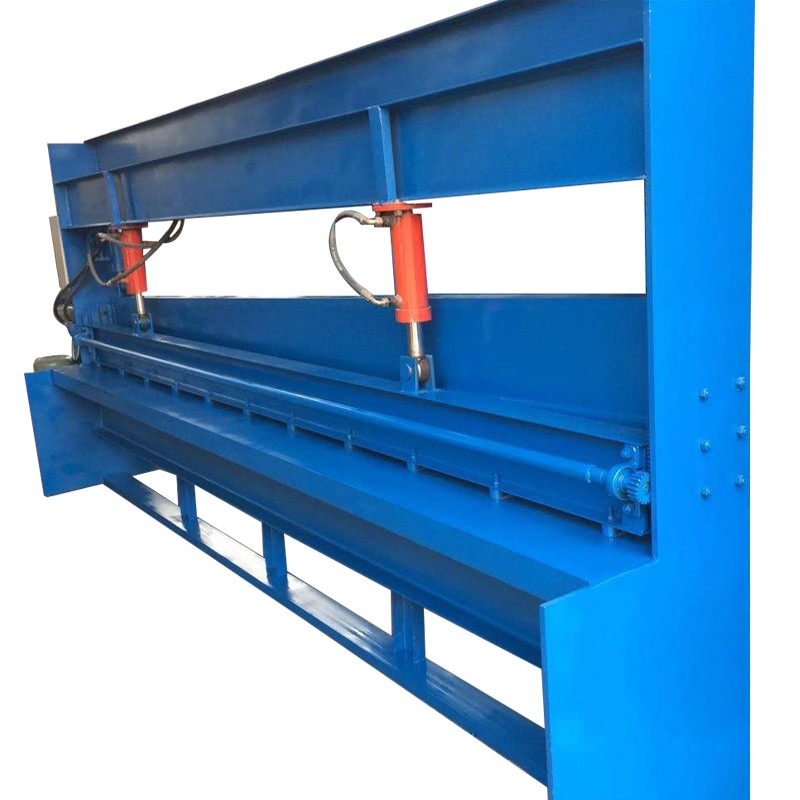

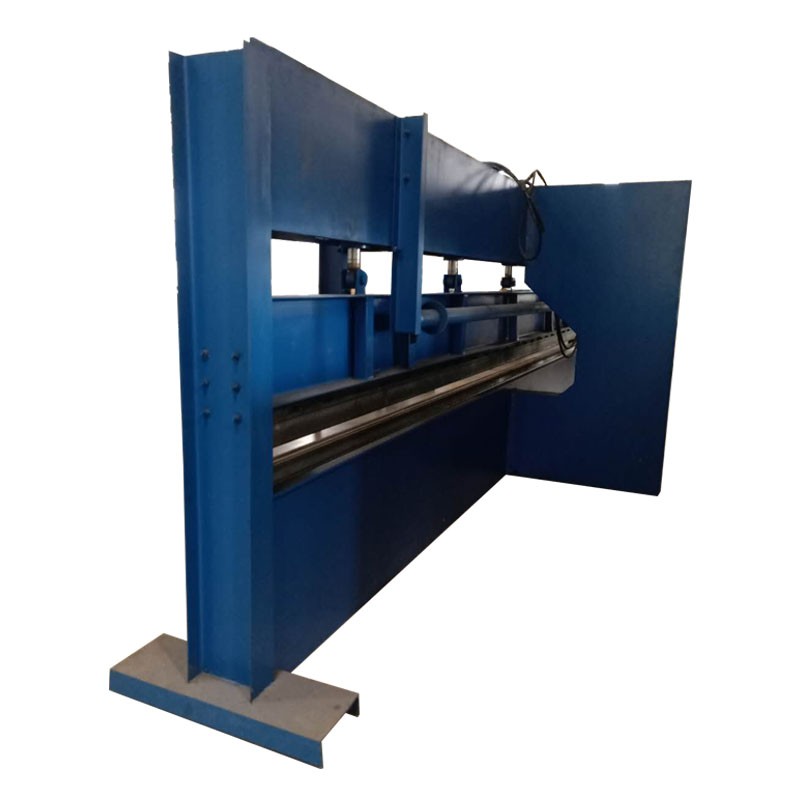

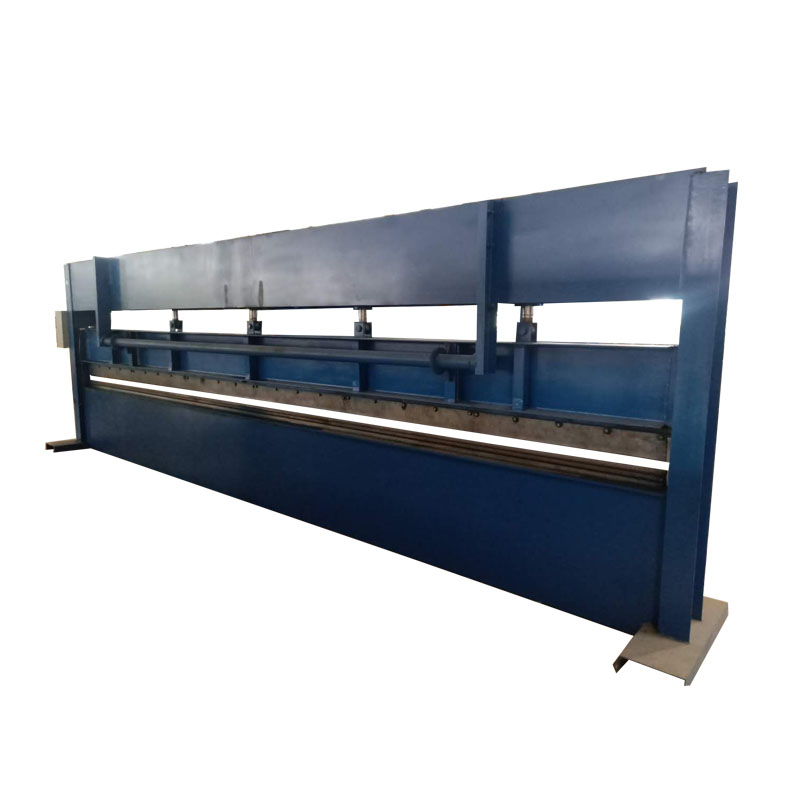

6m Hydraulic steel sheet metal plate profile bending machine zinc stud C channel making manual press machine is for bending the metal plate to the profile you want.This manual bending machine with easy operation and low price features.
Here some common finished bending profiles for your reference：such as C channel,V channel,or roof ridge cap and so on.
every mold have 8 drgee,so can do so many different shapes.
Main introduction of metal profile bending machine:
Welded structure and frame: forging press gives high accuracy.
- High accuracy, high efficiency, simple and convenient operation, good performance.
1. Hydraulic system:
- Adopt integrated hydraulic control system, more reliable
- Consist of motor, oil pump and valve groups
- Be installed at the top of the oil box, which can assure that the cylinder is always full of oil when the slide is moving down at high speed
2. Protective fence and the safety methods:
Power supply switch that is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up.
3. Advance technology and procedures:
- This metal machining tool is a kind of steel bending by press brake. Electronic control of back gauges.
Name | metal profile bending machine |
| Bending length | 2/2.5/4/6m(length customized) |
| Folding thickness | 0.3-0.8/1/1.5/25/3/4/5mm(customized) |
| Fuel tank trip | 200mm or customized |
| The fuel tank of acts | 90mm or customized |
| Surge of the pumping station | 1MP-40MP or customized |
| Pumping station electrical power | 4/5.5/7.5KW |
| Installation dimension about(L*W*H) | 6.5*2.5*2.2M |
Our Company Main Roll Forming machines
1. Different types of roof profile drawing forming machine ;
2. Curve roof roll forming machine; 3. Ridge cap roll forming machine;
4. Floor deck roll forming machine; 5. Rain gutter roll forming machine;
6. Downpipe roll forming machine; 7. Highway guardrail roll forming machine;
8. Roller shutter door forming machine; 9. Door frame roll forming machine;
10. CZU purlin roll forming machine; 11. Light keel roll forming machine;
12. Slitting machine (lines); 13. Shearing/bending machine;
14. Decoiler(Hydraulic decoiler, electric decoiler and manual decoiler) and so on。
Dear Friends we are majoring in the roll forming machines for more years,just send us the profiles we will offer you one Exact and Cost machine,If want to know more,pls contact with us asap.
