Brand:Rino
Model:HSF-1600
Width:1600mm
Speed:80m/min
Min quantity:1件
Deliver:In 45 days

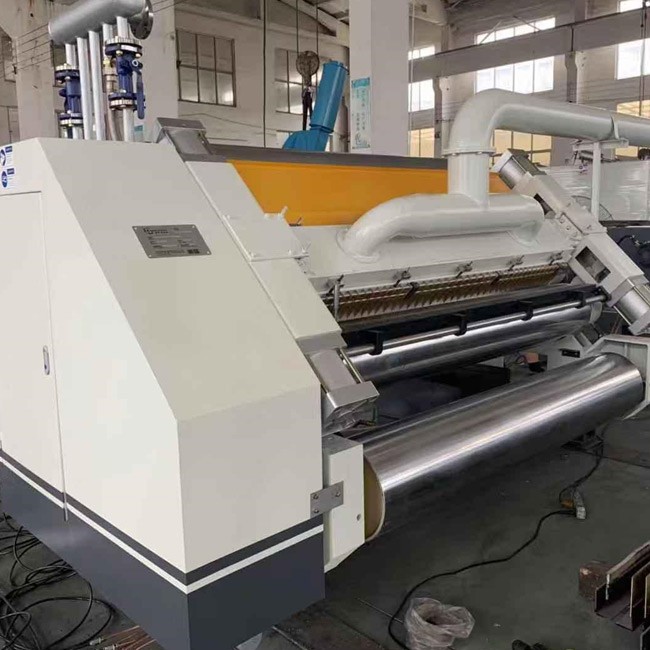

Gimbal transmission fingerless single facer
*Design speed: 100m/min.
*Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
*corrugating roller: Dia.280mm with a drum.
*Press roller: Dia.320mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
*Gluing roller: surface is embossed with netting design and chrome plated.
*Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
*With preheating and preconditioning rollers.
