Heavy-Duty Drilling Stabilizer

Price:＄0.00/件
Brand:Jagger
Size:6~28"
Deliver:In 3 days

Inquiry

Supply Ability

• Supply Ability

• 500 Piece/Pieces per Year

Packaging & delivery

• Packaging Details

wooden case or standard export package for Heavy-Duty Drilling Stabilizers - API Certified & oilField equipment

• Port

Chinese Main Ports

• Lead time:

• Quantity(pieces)	1 - 10	>10
  Lead time (days)	30	To be negotiated

Heavy-Duty Drilling Stabilizers - API Certified & oilField equipment



Product Description

 The details of Drilling Stabilizer as follows,

1. Material: AISI 4145H Mod Alloy steel, Non magnetic steel, etc.

2. Types: Drill String type and Near bit type.

3. Use: It is mainly used to stabilize the drilling tools in the process of drilling hole.

4. Standard: API Spec 7-1 or SY/T5051-91Standard.

5. Inspection&Test: When producing, traceability are maintained from the receipt of raw material to completion of final products, and serial numbers are die-stamped on each workpiece body. During each manufacturing process, inspection and test are performed.



Technical Parameters



Bit Size	Working OD	End OD of body(mm)	ID	Length	Thread code on both ends
(in)	(mm)		(mm)	(mm)	Drill string type		Near bit type
					Top	Down	Top	Down
6	152.2	121	51	1200	NC38			3 1/2 REG
6 1/4	158.7
6 1/2	165.1
7 1/2	190.5	159	57	1600	NC46			4 1/2 REG
7 7/8	200
8 3/8	212.7	159	71	1600	NC46
		165		1800	NC50
8 1/2	215.2	159
		165
8 3/4	222.2	178
9 1/2	241.3	178		1600	NC50	NC50	NC50
9 5/8	244.5	197		1800				6 5/8 REG
9 7/8	250.8
12 1/4	311.2	203	76	1800	NC56	NC56	NC56	6 5/8 REG
		209			6 5/8 REG	6 5/8 REG	6 5/8 REG
16	406	229		2000	NC61	NC61	NC61	NC61
17 1/2	444.5	241.3		2200	7 5/8 REG	7 5/8 REG	7 5/8 REG	7 5/8 REG
24	609.6
26	660.4
28	711.2
Note: Stabilizer can be made according to customer’s special requirement.

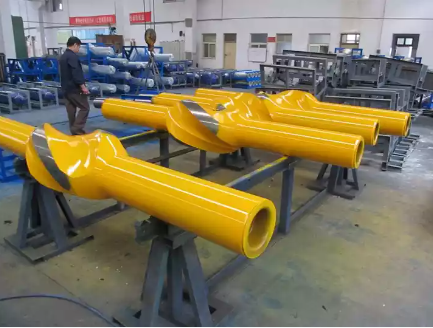

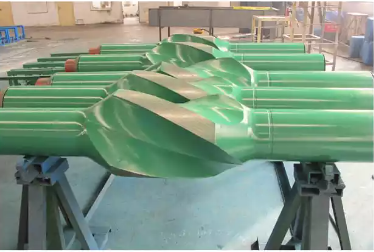

Product Overviews
