Product name: suction and discharge hose Description:

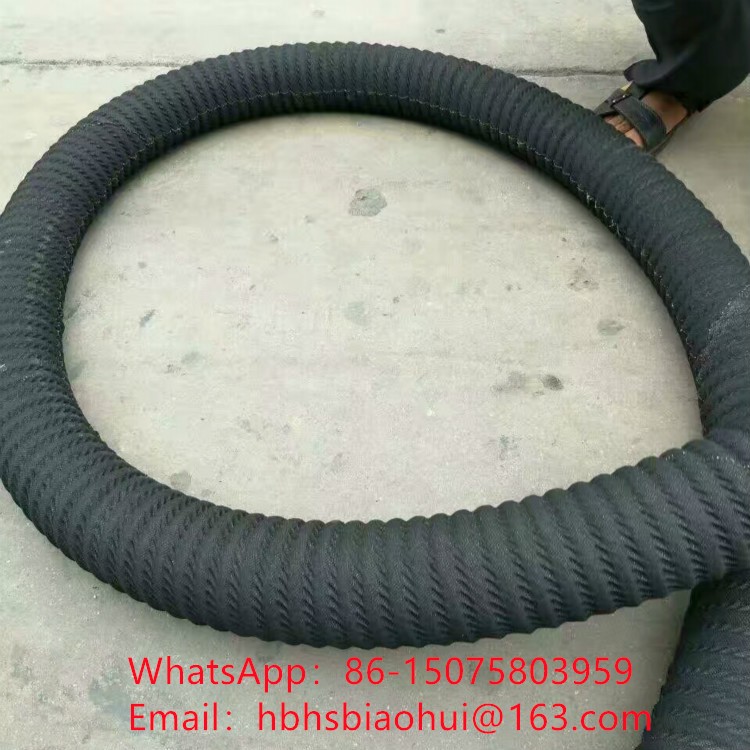

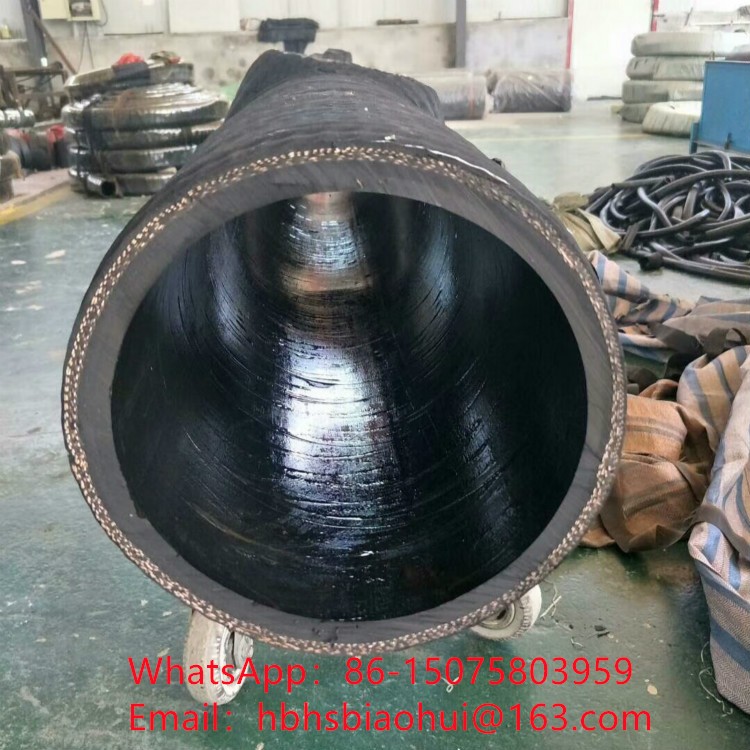

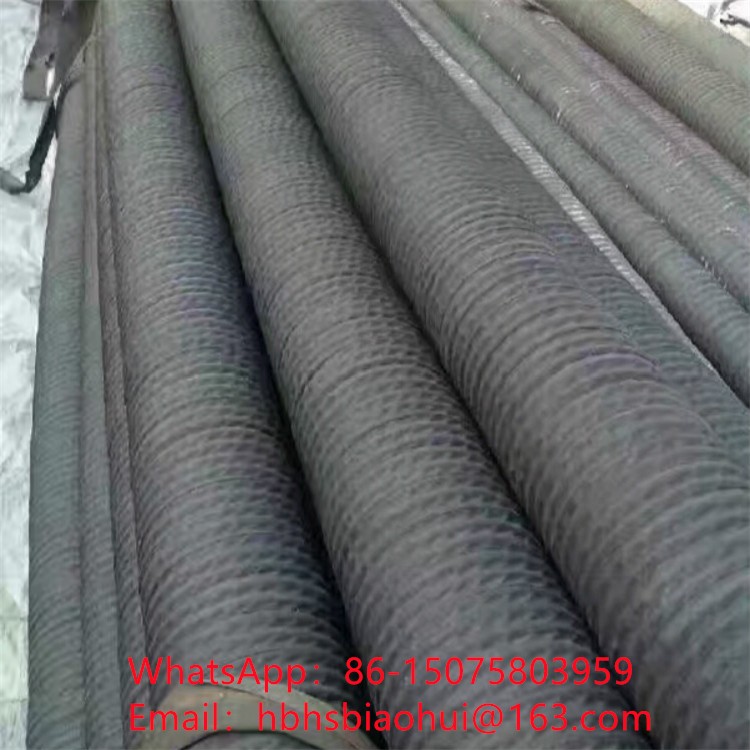

1% and characteristics: The pipe wall is composed of five parts: inner glue layer, fabric layer, spiral metal steel wire layer, middle glue layer and outer glue layer. The pipe body is solid, with good flexibility. The surface of the pipe body is made of cloth grain and is corrugated and spiral

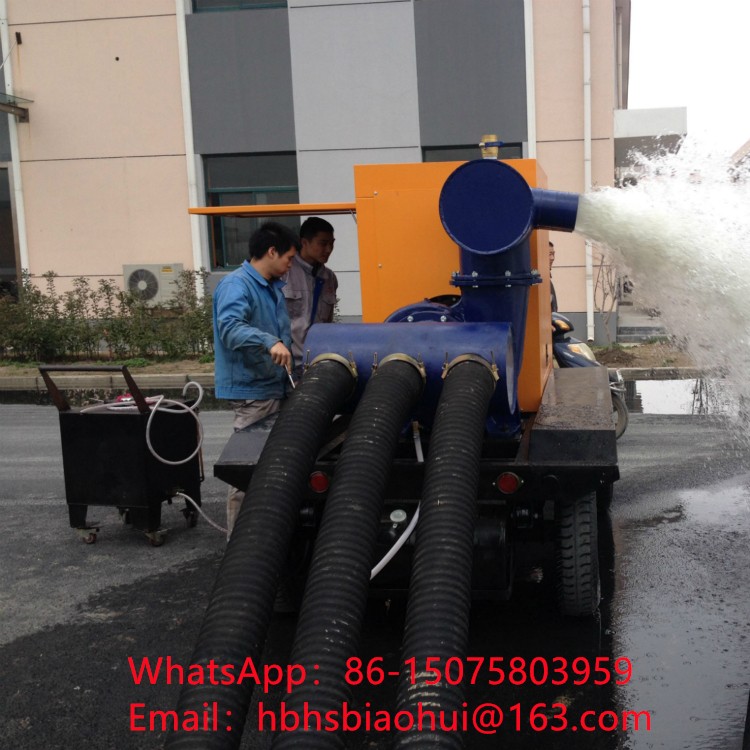

2 Classification and application: according to the different media resistance properties of the adhesive layer, it can be divided into water suction hose, oil suction pipe, sand suction pipe, mud suction pipe, etc., which are widely used in agricultural water suction and drainage irrigation, industrial and mining, civil engineering, water conservancy projects, etc
| 径ID | 外径OD | 工作压力WP | 爆破压力BP | 真空压力 | 可生产长度 | |||||
| mm | inch | mm | inch | Mpa | bar | Mpa | bar | Kpa | bar | m |
| 152 | 6" | 182 | 7-1/4" | 1.2 | 12 | 2.4 | 24 | 80 | 0.8 | 20 |
| 203 | 8" | 233 | 9-1/5" | 1.2 | 12 | 2.4 | 24 | 80 | 0.8 | 20 |
| 254 | 10" | 284 | 11-1/5" | 1 | 10 | 2 | 20 | 80 | 0.8 | 10 |
| 304 | 12" | 340 | 13-2/5" | 1 | 10 | 2 | 20 | 80 | 0.8 | 6-10 |
| 350 | 14" | 390 | 15-2/5" | 1 | 10 | 2 | 20 | 80 | 0.8 | 6-10 |
| 450 | 18" | 486 | 19-1/5" | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 550 | 22" | 590 | 23-3/5" | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 600 | 24" | 640 | 25-3/5" | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 700 | 28" | 750 | 29-3/5" | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 800 | 32" | 850 | 33-1/2" | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6-10 |
| 1000 | 40" | 1050 | 41-1/2" | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6 |
| 1200 | 48" | 1250 | 49-1/5" | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6 |
| 1300 | 52" | 1350 | 53-1/5" | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6 |

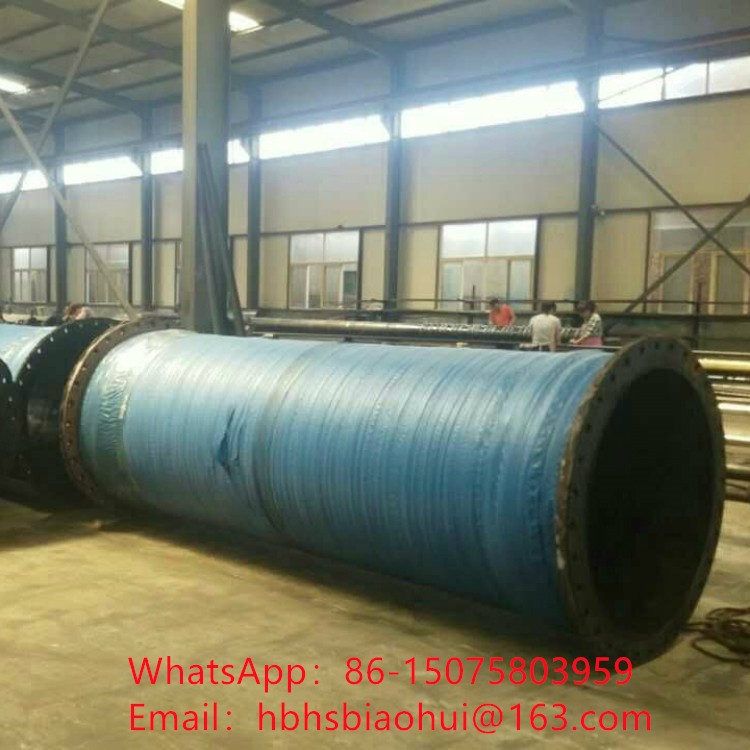

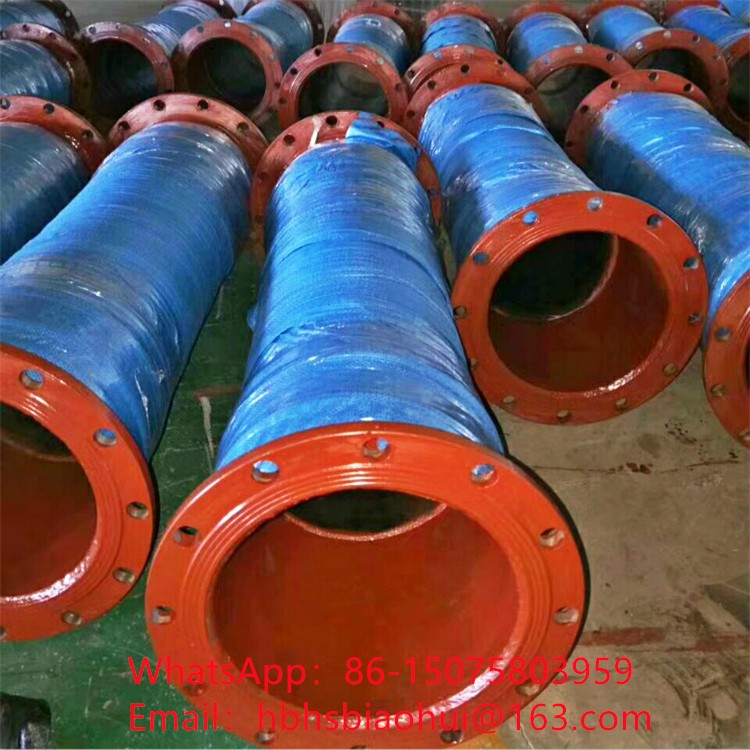

| 备注：法兰连接式大口径钢丝骨架胶管可根据用户及图纸要求，加工生产。 | ||||||||||
