360:7.5-11kw
Min quantity:1件
Quantity:100件
Deliver:In 3 days

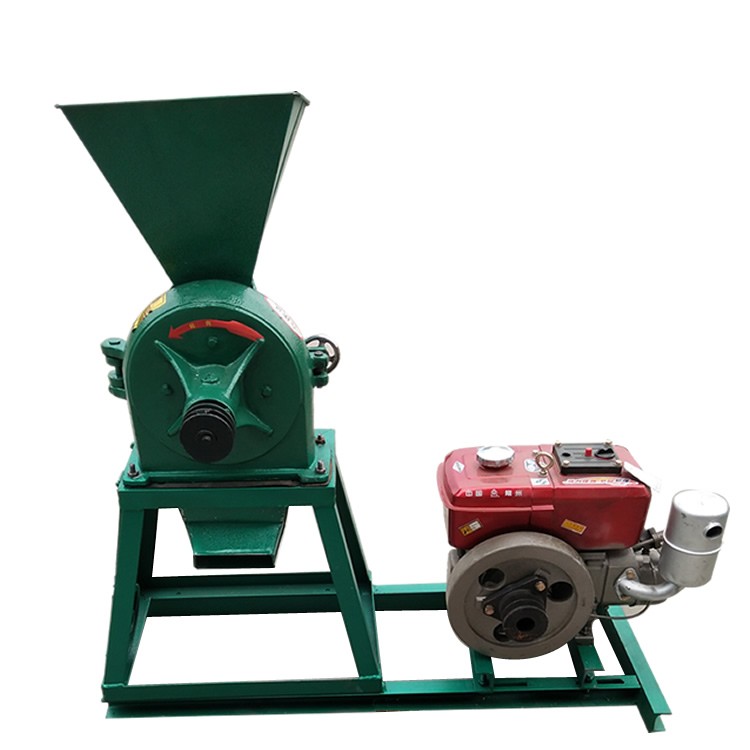

The machine has the advantages of simple structure, convenient installation, use and maintenance, wide application range and so on. Suitable for crushing corn, wheat, beans, grains, straws, vines, dried and fresh potatoes, leaf shells and other grain and feed, but also can crush gypsum, lead powder, slippery powder, rare earth, chemical, clay, coal and other hardness minerals, but also can crush a variety of traditional Chinese medicine.
The crusher is composed of crushing main engine, cyclone separator, dust removal box and induced draft fan. This machine adopts movable tooth disc and fixed tooth ring screen ring material to be impacted, sheared and rubbed. At the same time, when the movable tooth disc rotates at a high speed, it produces a strong air flow, which quickly flows out of the screen with the heat of the crushing chamber and the material. The control particle size can be determined by changing the screen, and the first or second stage can be used to recover materials without dust. The whole machine is made of high quality cast iron. The main engine is cooled by water. There is no dust in the production process. The turbine crusher has the advantages of small volume, stable transmission, high tightness, good self-cooling function and convenient disassembly, maintenance and replacement of parts. It is convenient to maintain and replace parts.
产品型号Product model
model | 9FC-700 | 9FC-600 | 9FC-500 | 9FC-400 | 9FC-360 | 9FC-320 | 9FC-260 |
motor power(kw) | 37-45 | 30-37 | 18.5-22 | 15 | 11 | 7.5-11 | 2.2-3 |
weight(kg) | 980 | 520 | 460 | 200 | 168 | 138 | 48-68 |
Rotation speed(r/min) | 2180 | 3300 | 3300 | 4600 | 4200 | 4600 | 6600 |
Crushing bin diameter Ф(mm) | 800 | 600 | 500 | 400 | 360 | 320 | 230 |
Number of round teeth | 16 | 10 | 10 | ||||
T-shaped flat tooth number | 8 | 5 | 5 | 5 | 5 | 5 | 3 |
Number of T-shaped short flat teeth | 8 | 5 | 5 | 5 | 5 | 5 | 3 |
Corn screen Ф1.2(kg/h) | 5600 | 2500 | 1800 | 1200 | 950 | 800 | 240 |
Sorghum screen Ф0.6(kg/h) | 4800 | 2000 | 1500 | 1000 | 480 | 350 | 100 |
Rice husk screen Ф1.8(kg/h) | 2000 | 1400 | 1000 | 800 | 550 | 400 | 150 |
coybean screen Ф0.6(kg/h) | 3800 | 1000 | 800 | 500 | 320 | 260 | 80 |
rice screen Ф0.3(kg/h) | 1800 | 660 | 500 | 300 | 260 | 150 | 60 |
feed screen Ф2.5(kg/h) | 7000 | 5000 | 3000 | 2500 | 2000 | 1500 | 560 |
