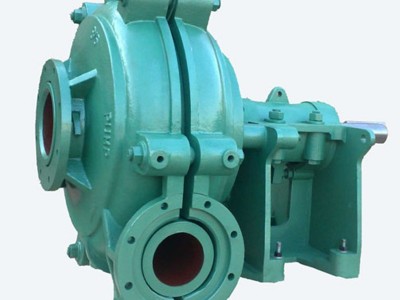

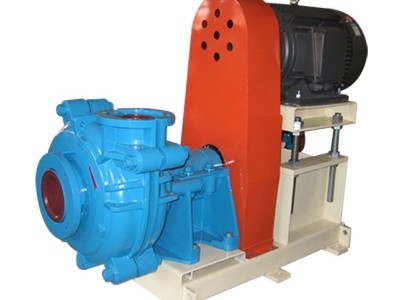

Warman 1.5/1 AH Slurry Pump

Price:＄600.00/piece
Brand:Do Pump
Deliver:In 3 days

Inquiry

verview

Quick Details

• Warranty:

• 1 year

• Customized support:

• OEM, ODM, OBM

• Brand Name:

• DO PUMP

• Model Number:

• DOH

• Place of Origin:

• Hebei, China

• Application:

• metal and Equipment Manufacturers, Mining industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions, Mining,Dredge,Coal,FGD,Chemical,etc.

• Horsepower:

• 20-1600 hp

• Power Source:

• Electric

• Pressure:

• 1-8 bar

• Structure:

• Single-stage Pump

• Outlet Size:

• 1-18 inch

• Voltage:

• 380/400/415V, etc.

• Power:

• 15-1200 kw, Electric mining slurry pump

• Name:

• 10/8 coal sand washing slurry pump mining sludge pump

• Feature:

• compatible with famous slurry pump

• Material of Wetted Parts:

• High chrome alloy or Natural rubber

• Transfering Material:

• Ore,Sand,Coal,Slag,Ash slurry,etc.

• Shaft Seal:

• Packing seal, Expeller seal, Mechanical seal

• Lubrication:

• Grease or Oil

• Discharge Direction:

• Any eight positions by 45 degrees

• Drive Type:

• V-belt,,Elastic coupling, Gear reducer,Fluid coupling

Supply Ability

• Supply Ability

• 200 Set/Sets per Month

Packaging & Delivery

• Packaging Details

Plywood box or according to customers' request for slurry pump

• Port

Tianjin

Product Description

Warman 1.5/1B-AH Slurry Pump

Size range (outlet):------ 1'' to 18'' (25 mm to 450 mm)
Capacity:--------------------- up to 22,000 gpm ( 5,000 m3/hr )
Head: -------------------------- up to 240 ft (73 m )
Pressure: -------------------- up to 300 psi (2,020 kPa)

Features:

1). Cantilever, horizontal centrifugal slurry pump
2). Better wear-resistance and corrosive resistance
3). Wet Parts material : Cr27 high chrome alloy or natural rubber are available for fitting different PH slurries .
     Ceramic material is under developing and will be lanched asap .
4). In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.
5). Shaft Seal : expeller seal, mechanical seal and gland packing seal .
6). The discharge branch can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit

     installations and applications.

7). To convey heavy abrasion, high concentration dreg ,slurry pump's body is double-shell construction , in other words,

     being made of inside lining and outside shell.

8). We are specialized in pump parts OEM work as well
