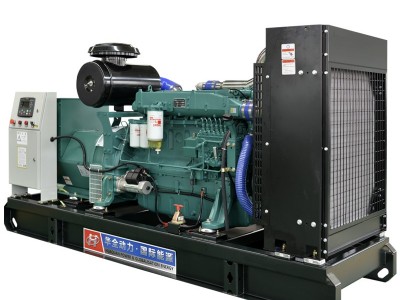

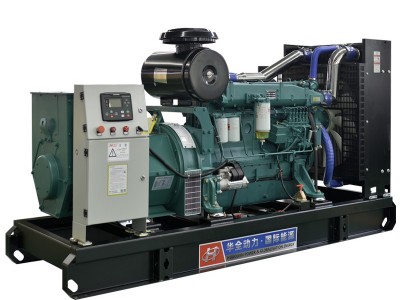

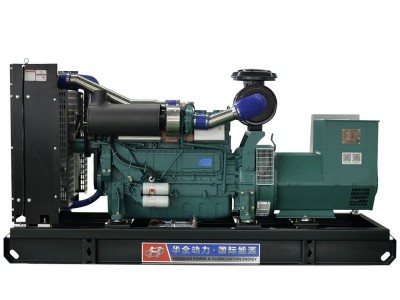

150kw diesel generator set

2、Huaquan generator sets use brand components, with high quality and real materials.

3、The selection of pure copper motors, no carbon brushes, and Weichai powertrain make this diesel generator set more fuel-efficient and durable.

4、Random information: original technical documents of diesel engines and generators, instructions for generator sets, test reports,etc.

5、According to the actual situation of customers, we recommend customized production of suitable generator sets for customers.

Generator set model：HQ150GF

Steady state voltage adjustment rate (%):≤± 1

Generator power:150kW/187.5kVA

Voltage fluctuation rate (%):≤ ± 0.5

Power factor:COSΦ = 0.8 (lagging)

Transient voltage adjustment rate (%):＋20 ～－15

Output voltage:400V/230V

Voltage stabilization time (s):≤1

Generator set current:270A

Steady state frequency adjustment rate (%):≤ ± 1

Rated frequency:50Hz

Frequency fluctuation rate (%):≤ ± 0.5

Rated speed:1500rpm

Transient frequency adjustment rate (%):+ 10 ~ -7

Fuel grade:(standard) 0 # light diesel (normal temperature)

Frequency stabilization time (S):≤3

Diesel generator size:2800*890*1550（L*W*H mm

Diesel generator fuel consumption (100% load):204g/kW·h

Diesel generator weight:1900kg

Diesel generator volume(LP7m):95dB（A）

Technical parameters of diesel engine

Diesel engines brand：Weichai diesel engine

Cooling method: Closed water-cooling

Diesel engines model: WP10D200E200

Oil supply method: direct injection

Engine cylinder number: 6 / L Type

Speed regulation method: Mechanical

Bore stroke: 126*130mm

Intake method: Natural inhalation

Compression ratio: 18：1

Overload capacity: 110%

Start method：DC 24V Electric start

Diesel engines Speed: 1500rpm

Technical parameters of generator

Generator brand：Huaquan Brushless Generator

Protection level：IP22

Generator Model：HQF-150

Wiring mode：Three-phase four-wire, Y-connection

Generator power: 150kW/187.5kVA

Adjustment method: AVR (Automatic Voltage Regulator)

Rated voltage: 400V / 230V

Output frequency: 50Hz

Insulation class: H class

Output factor: COSΦ = 0.8 (lag)

Genset standard features

1)、Direct injection internal combustion engine(Diesel)；

2)、AC synchronous generator（Single Bearing）；

3)、Water Radiator design for 40-45℃ Ambient belt-driven fans and guards；

4)、Generation output air switch、Standard control panel；

5)、Steel common base with shock absorber；

6)、Dry-type air filter fuel filter，oil filter、starting motor、Self-charging alternator；

7)、starter battery and connecting cables；

8)、Industrial 9dB muffler and accessories；

9)、The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet；

Optional accessories（Extra charged）

1)、Engine oil、diesel、water jacket、Anti-condensation heater

2)、Battery floating charger

3)、Self-protection unit/self-starting control panel

4)、Tree-remote control panel

5)、ATS AUTO-loaded transferring screen

6)、Daily fuel tank、Integral fuel tank

7)、Waterproof type(Cabinet)

8)、Mobile trailer(Drip proof)

9)、Mobile trailer(Silent type)
