STPS self-suction pump / 1STPS self-suction pump / 2

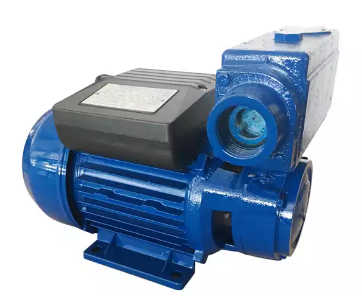

STPS self-suction pump

2023-03-27 14:12137
Price:$0.00/件
Brand:stream
Deliver:In 3 days
Inquiry

Applications and Installation

The STPS series are self-suction pumps, with peripheral impeller containing numerous radial blades in its edge, self-priming because of the particular design of the pump body which is with a small tank, water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generating high pressure. These pumps have a compact size and are very economical, finding the most different operating requirements such as: supply water from well, pool and so on, increase the water pressure in the pipe garden sprinkling or clean washing. Pumps should be installed in a covered area, protected against the weather.



Specification


item

value

Warranty

1 year

Customized support

OEM, ODM, OBM

Brand Name

Stream

Model Number

STPS series

Place of Origin

China

Application

water supply

Power Source

Electric

Pressure

Low Pressure

Structure

Single-stage Pump

Pump body

cast iron

Motor Housing

aluminum

Shaft

45# steel/stainless steel

Impeller

brass

Insulation class

B/F

Protection class

IP44/IP45

Mechanical seal

ceramic steatite/metalized carbon

Certificate

CE / ISO 9001 / SGS
