Brand:HBSX
Voltage:220V/380V/440V/as requirements
Core Components:PLC,Pump,Stations,rollers
Warranty of core components:18 months
Min quantity:1set
Quantity:1set
Deliver:In 20 days

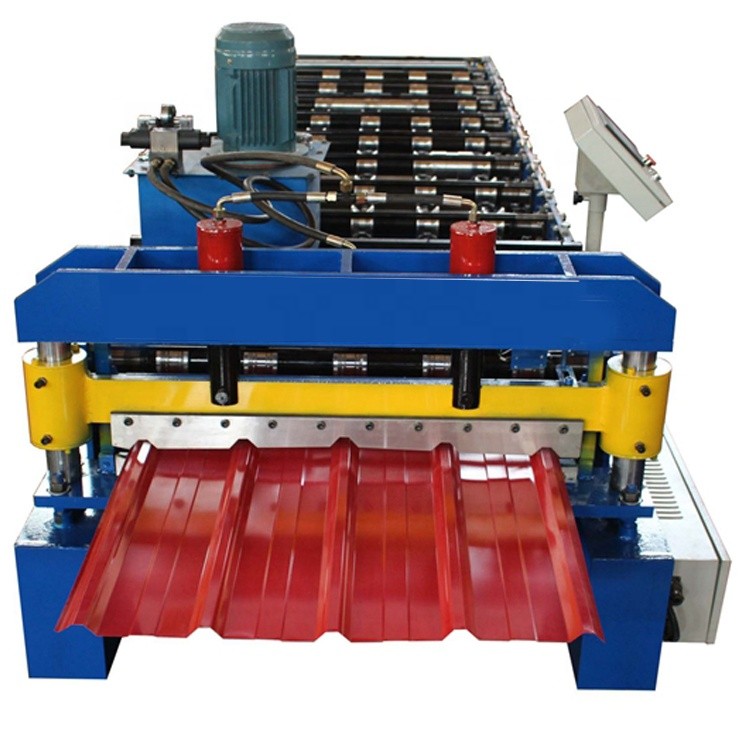

IBR 840 ibr metal sheet roof panel roll forming machine/roof press making machine
this profile is more popular profile.

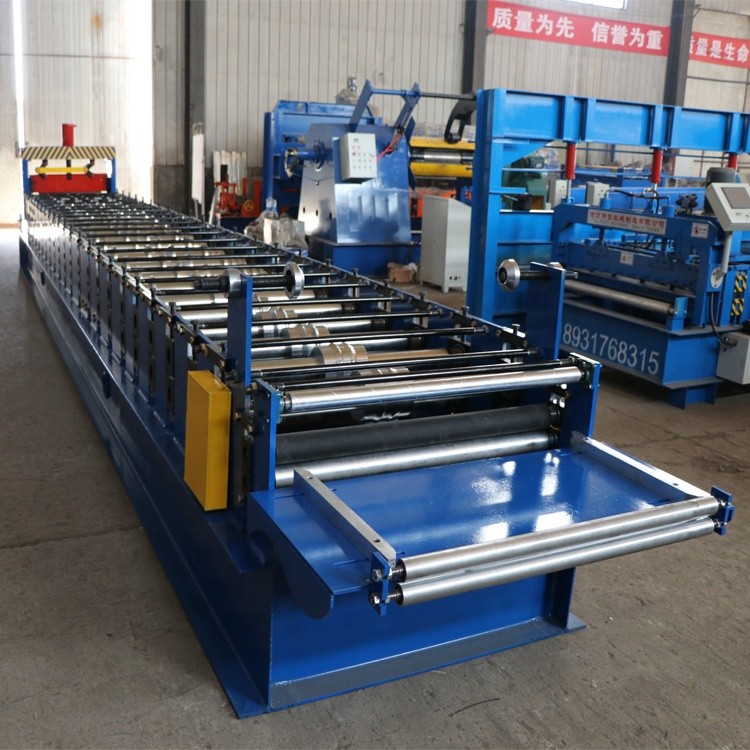

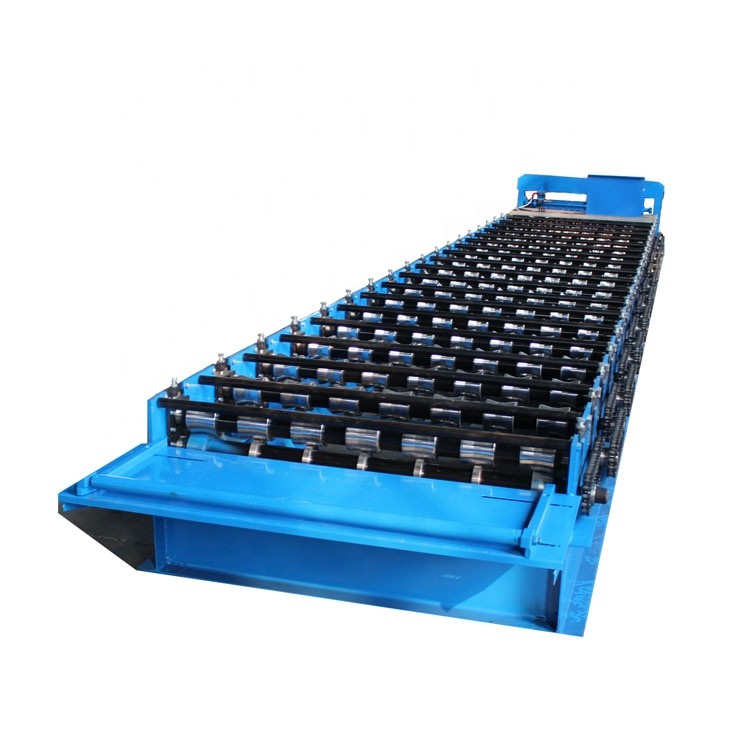

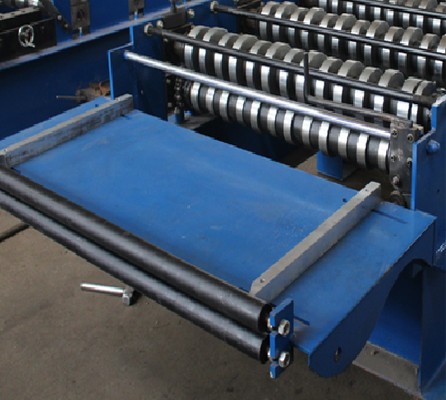

Roof tile making machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,pressing die,shearing device,hydraulic station,PLC control console and so on.Our company has dozens of profile models for this series roll forming machine,We can design different kinds of profile and fittings for machine,as per customers’ requirement.
1Suitable materialcolor steel sheet, galvanized steel sheet, aluminium sheet
2Material width your required
3Material thickness0.3-0.8 or as your required
4Working speed8-12m/min, can be 20-25m/min
5Main motor power 4kw with cycloidal with reducer
6Hydraulic pump power4kw
7Electrical control systemPLC control system with inverter
8Shaft diameter70/75mm

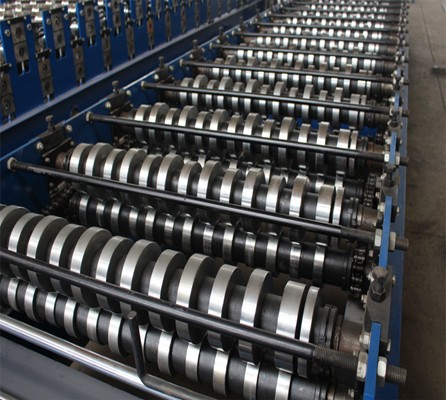

9Roller station8/9/10/11 rows, depend on your panel profile drawing
10Rollerhigh grade 45# steel, hard chrome plating
11Working time24 hours
12workers1-2 only
13Cutting head materialCr 12 mould steel with quenched treatment
14Voltage380V 3Phase 50Hz or as your required
15The machine size5800mm*1400mm*1350mm
Our Company Main Roll Forming machines

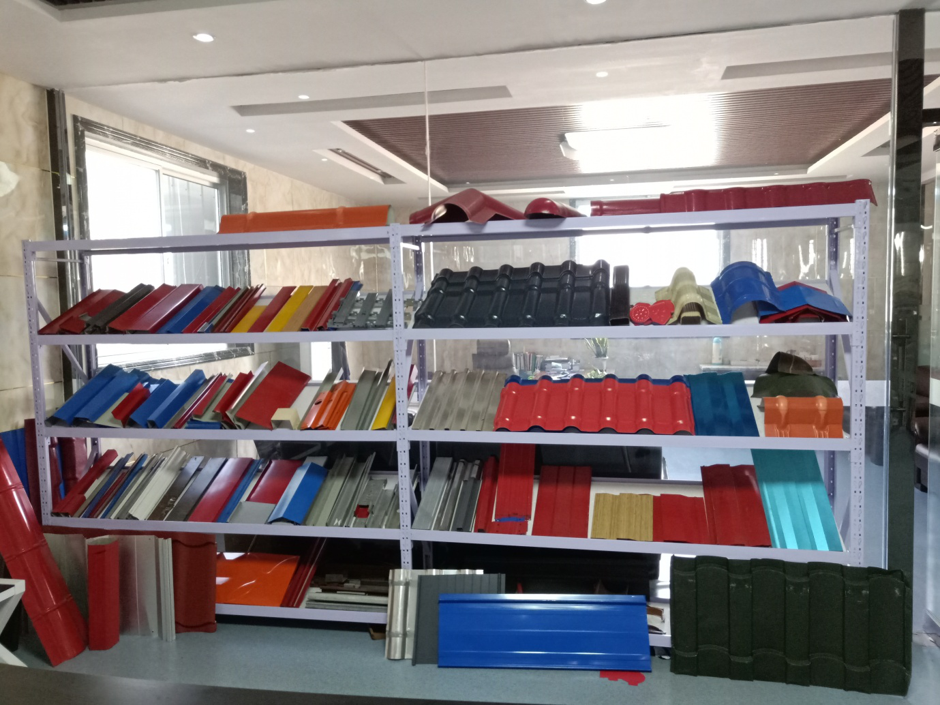

1. Different types of roof profile drawing forming machine ;
2. Curve roof roll forming machine; 3. Ridge cap roll forming machine;
4. Floor deck roll forming machine; 5. Rain gutter roll forming machine;
6. Downpipe roll forming machine; 7. Highway guardrail roll forming machine;
8. Roller shutter door forming machine; 9. Door frame roll forming machine;
10. CZU purlin roll forming machine; 11. Light keel roll forming machine;
12. Slitting machine (lines); 13. Shearing/bending machine;
14. Decoiler(Hydraulic decoiler, electric decoiler and manual decoiler) and so on
