Brand:jialong
the max cardboard size:2800x1500mm
weight:1500kgs
speed:60pcs/min
Deliver:In 3 days
carton box gluer semi auto folding gluing machine
H2: semi auto folding gluing machine china factory

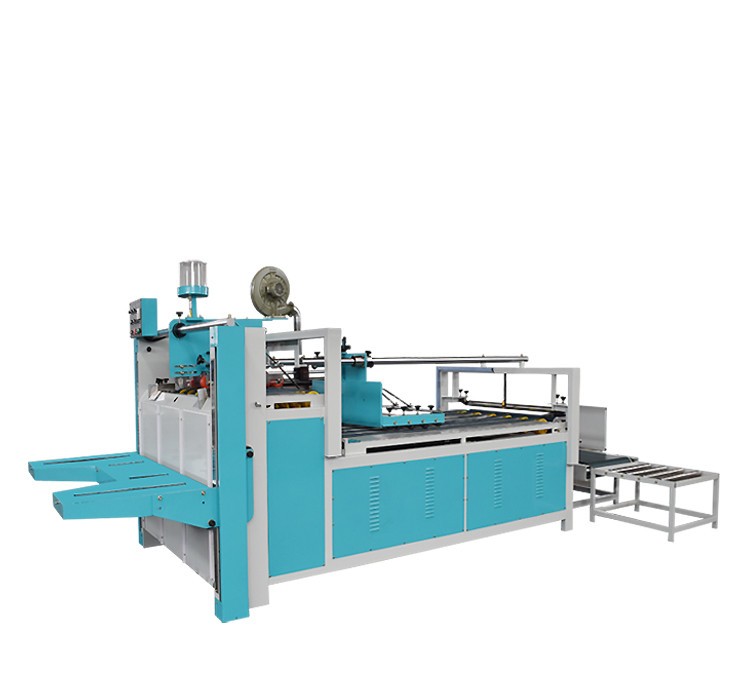

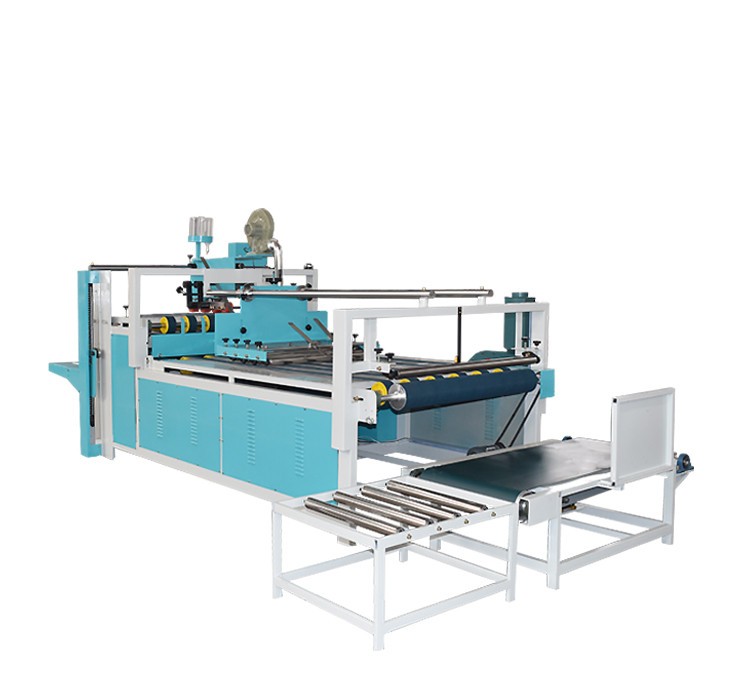

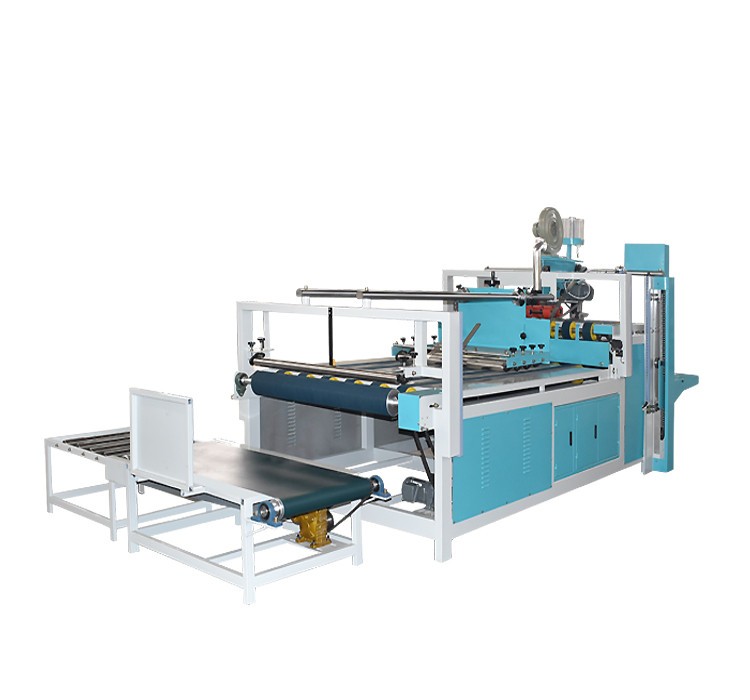

BZX2800 Type Semi-auto gluer compose of main form and two small conveyer.
Main form including:Form,up and down working table.Forepart feeding section,side carton delivery section,electric transportation section.middle press section.side carton delivery section,electric control system.This machine adopt name brand import electric spare parts,siemens electric,mron photoelectricity switch,Japan TOKY Taiwan MINGWEI electric power supply Gluer head adopt special alloy.
Technical parameters:
BZX2800 | |
Max.size(L+W)×2 | 2800mm |
Min.size(L+W)×2 | 340mm |
Max.size(W+H)×2 | 1515mm |
Min.size(W+H)×2 | 260mm |
High of feeder | 1000mm |
Power | 4kw |
Machine length | 5300mm |
Machine weight | 1500kg |
Machine speed | 60PCS/min |
Function ：
BZX2800 type semi-auto gluer compose of main form and two conveyer.
Main form including: Form, up and down working table. Forepart feeding section, forepart proofread section, middle transportation section, middle press section, side carton delivery section, electric control system.
1. automatic counting, the number of finished sheets do well (1-999) can set the number of points to the stack conveyor terminus to facilitate tying.
2．Fan air-dry function accelerate carton adhesive, reducing the production of defective products.
3．The finished product produced by the half finished product is arranged in order to operate with only two persons, which is convenient to operate, and the wage is reduced.
4．Middle tapping function, effectively avoid the phenomenon of cardboard boxes appear scissors fork.
5，The yield was about eight hours 12000 boxes.
