Brand:GWM-0910
Wire diameter:0.05—0.12
Max.final coil.O.D:φ30（80）
Min.final coil.I.D:φ5
Min quantity:1件
Quantity:100件
Deliver:In 3 days

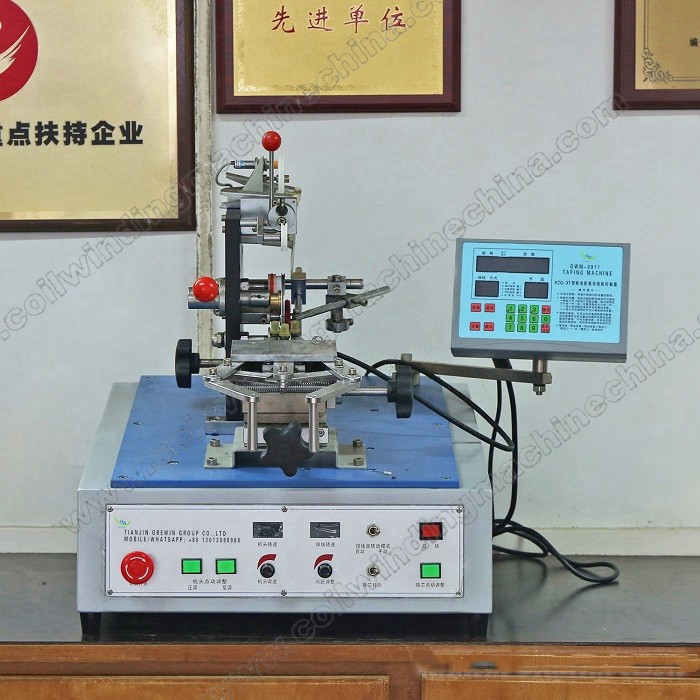

NAME：GWM-0910Slider Toroid Coil Winding Machine
GWM-0910 Slider Coil Winding Machines utilize slider heads and belt heads to accommodate a wide range of core sizesand wire diameters.
SPECIFICATION:
Wire diameter | 0.05—0.12 | Max.winding speed | 800rpm |
Max.final coil.O.D | φ30（80） | Wire spacing | Proportional linkage |
Min.final coil.I.D | φ5 | Supply voltage | AC 220V（50Hz） |
Max.finalcoil height | 15 | Mechanical dimensions | 550×500×580 |
Controller storage capacity Programs | 29 set | Weight | 83kg |
FEATURES:
The Slider Toroid Coil Winding Machine are fast machines for mass production of small inductive components.

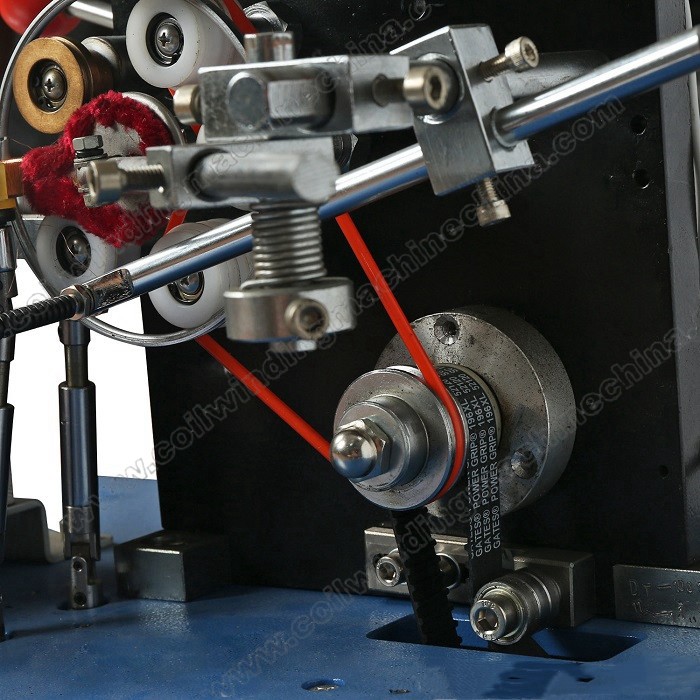

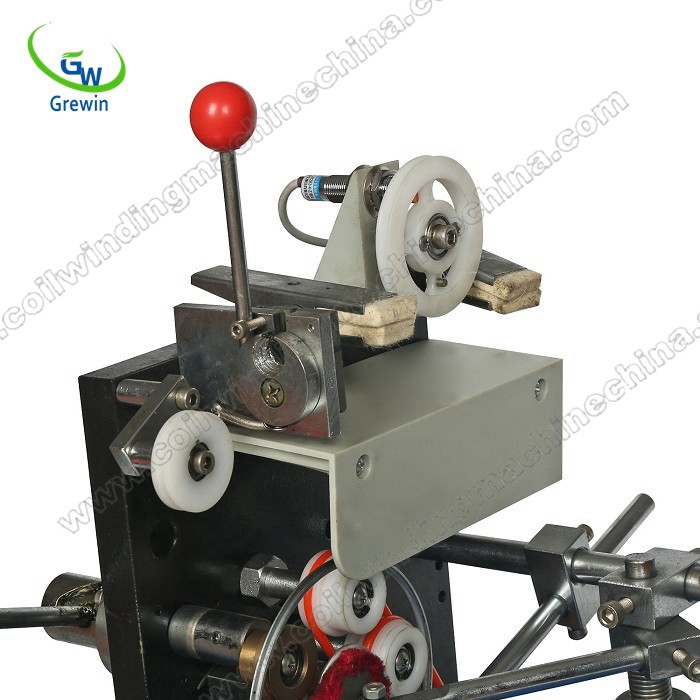

Slider Coil Winding Machines utilize slider heads and belt heads to accommodate a wide range of core sizesand wire diameters.
Main drive and core rotation are accomplished by powerful,long life AC motors and proportionally linkedvariable speed controllers.
Slider Toroid Coil Winding Machine has separate speed controls for loading and winding.

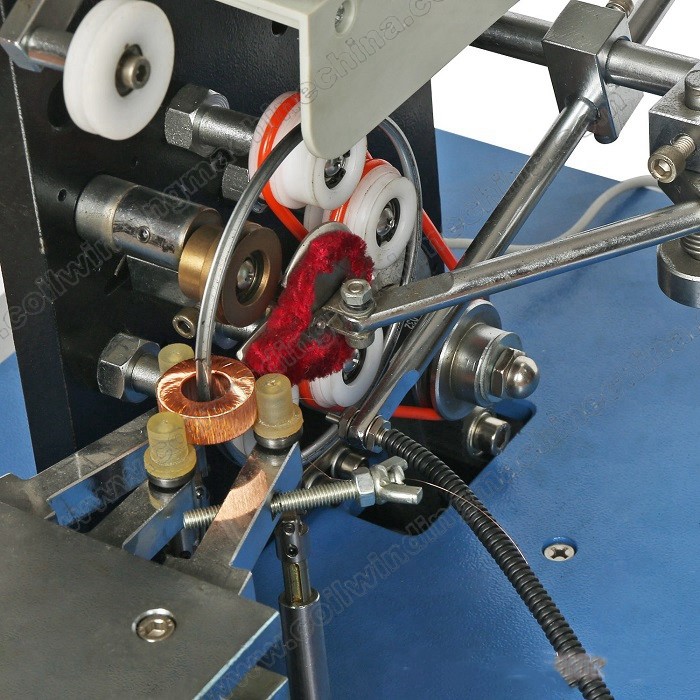

Programmable stepper motor driven core rotation in either direction with minimum backlash.
ADVANTAGES:
Complete range of articles, large range of wire diameter, Multipurpose
Good compatibility, parts are interchangeable
High stability, part quality guarantee
High production efficiency, no wire breaking at high speed winding
The Slider Toroid Coil Winding Machine is easy to operate, High learnability
Accessories general, easy to exchange
A short period of delivery：10 days after receipt of payment
Enquiries can be quoted one day service.
