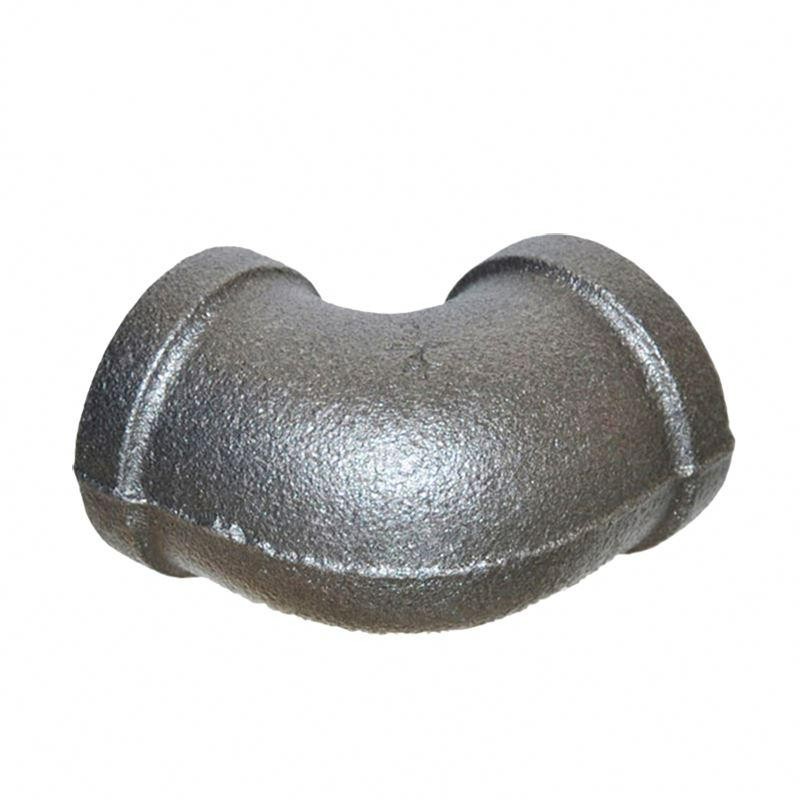

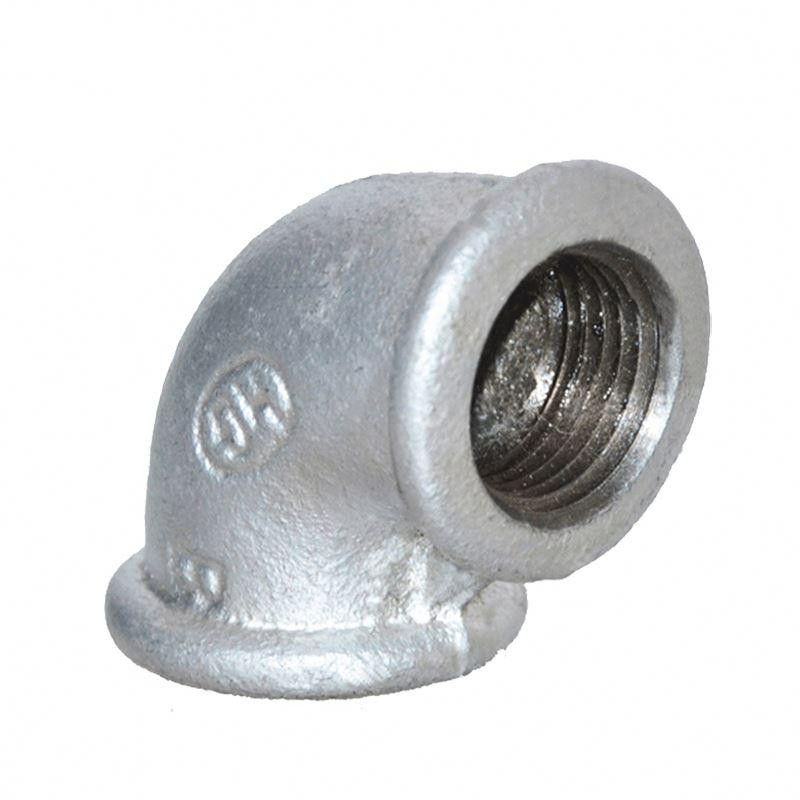

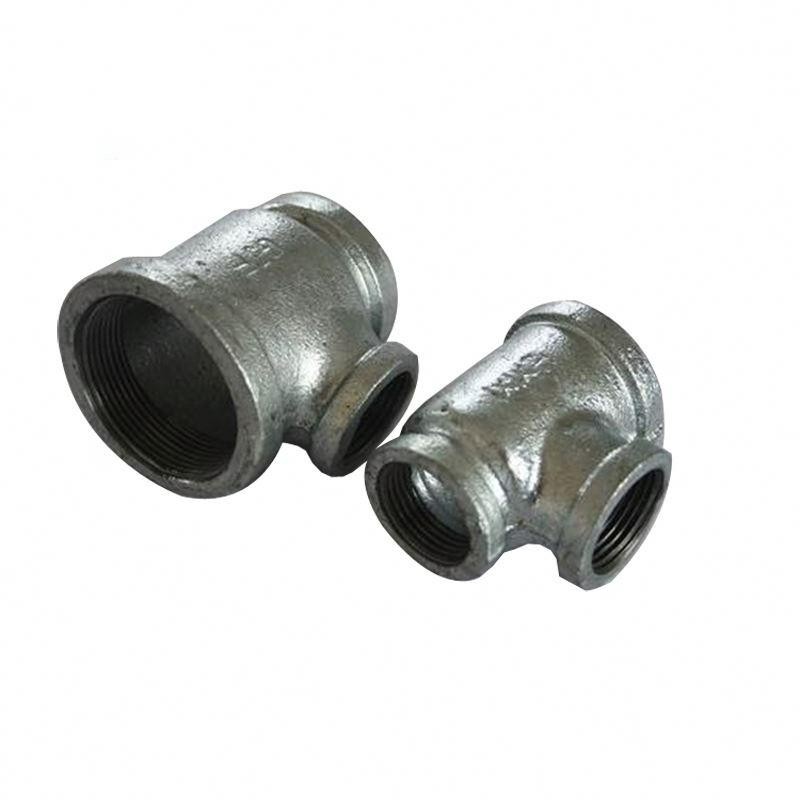

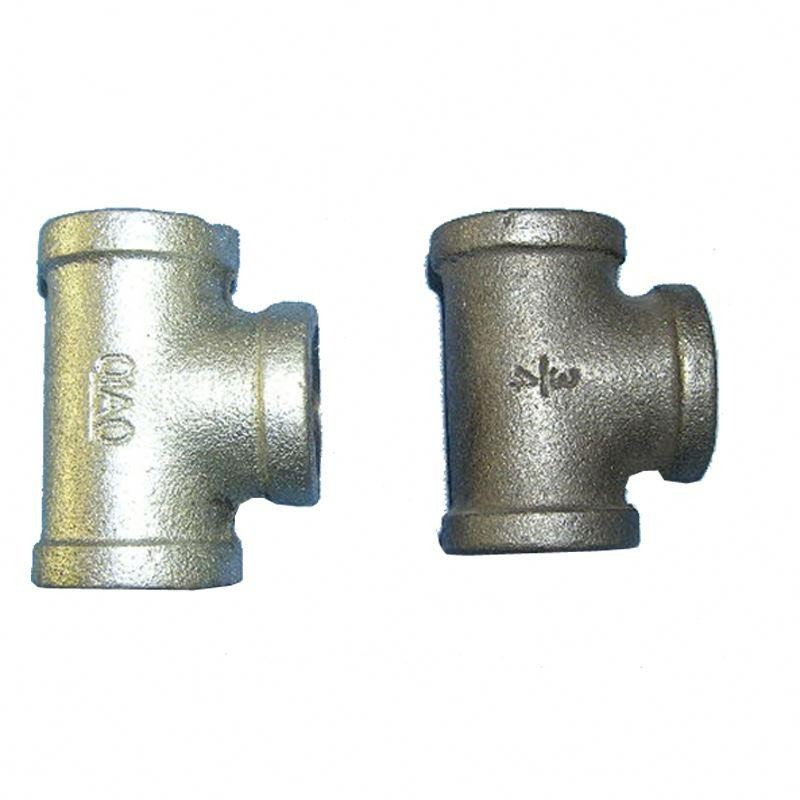

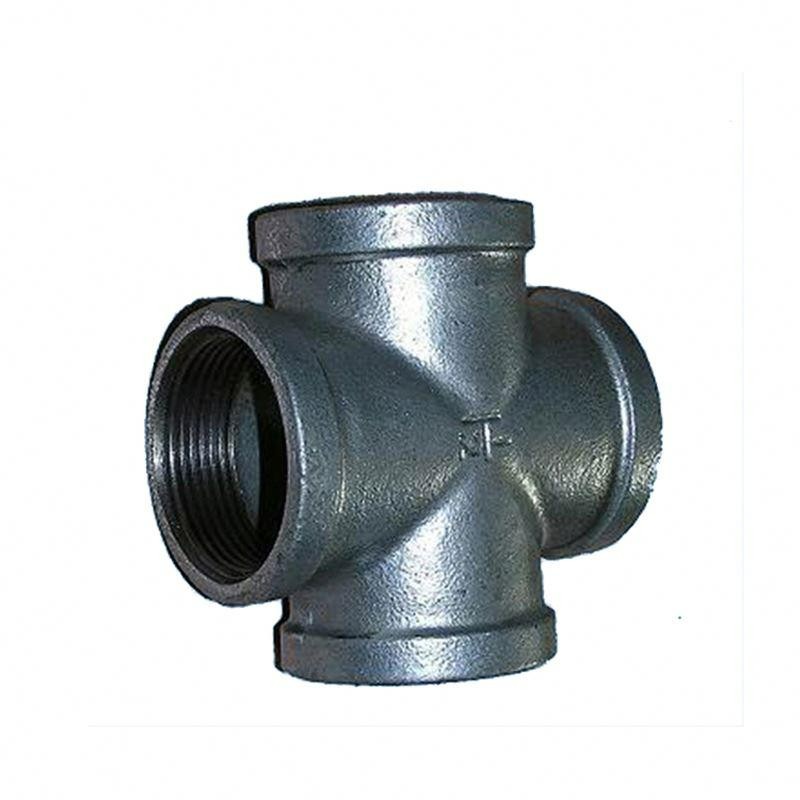

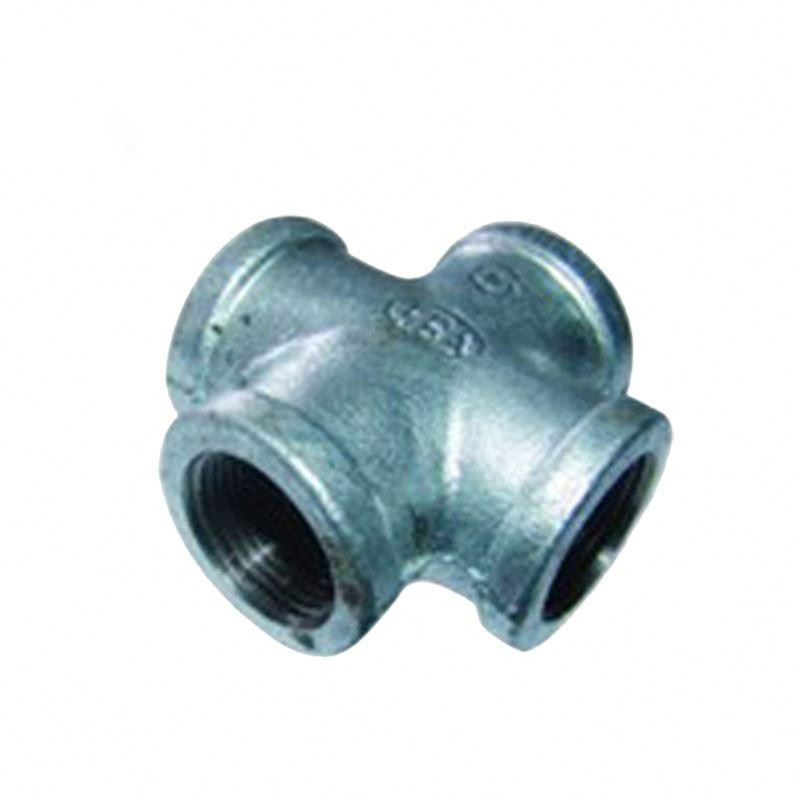

Malleable iron pipe fitting

2022-06-18 23:11108
Price:$0.00/件
Deliver:In 3 days
Inquiry

SPECIFICATION

Chemical property(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P%<0.1), (S% <0.2%)
Physical propertyTensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure2.5Mpa
Working pressure1.6Mpa
TypeBeaded with ribs or banded with ribs

Beaded without ribs or banded wihtout ribs

Round/square
SurfaceGalvanized/ no galvanized
ColorWhite/black
ModelElbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
ConnectionMale, Female
ShapeEqual, Reducing
CertificateBSI,ANAB,ISO9001,FM,UL
ApplicationSuitable for pipe connect of steam, air, gas, oil and so on

Buyer’s drawings or designs are available
PackageCartons without pallet

Cartons with pallet

Double woven bags

Or as buyer’s requirements
Delivery detailsAccording to the quantities and specifications of each order

Normal delivery time is from 10 to 30 days after receiving the deposit
