Brand:XINNUO
Model Number:double layer machine
Core Components:PLC, Pump
Power:5.5KW
Min quantity:1件
Deliver:In 40 days
Product attribute
Applicable Industries:Building Material Shops, Manufacturing Plant
Brand Name:Xinnuo
Place of Origin:Hebei,China
Raw material width:1220mm
Core Components:Motor, Pump, Pressure vessel ,Beaing,Gear,Gearbox,Engine
Power:5.5KW
Voltage:380V
Weight:8800 kg
Main motor power:7.5KW,3phase
Warranty of core components:1 Year
Dimension(L*W*H):7600*1500*1450 mm

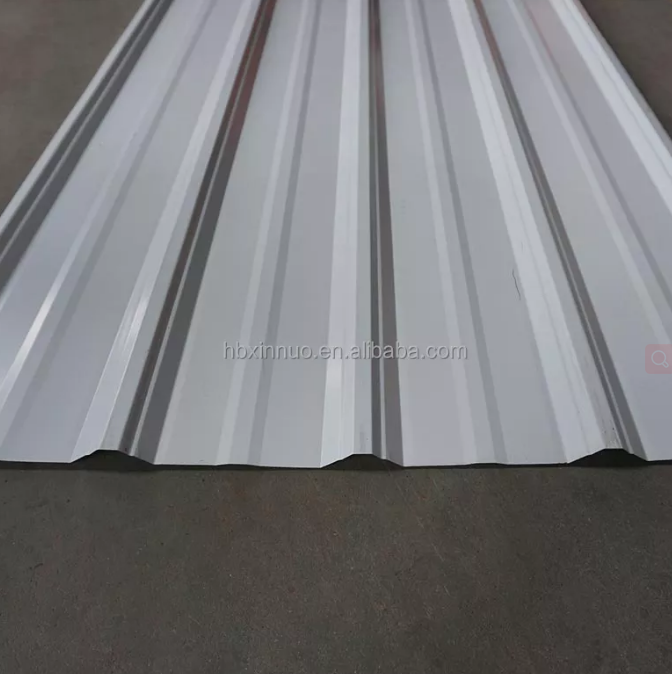

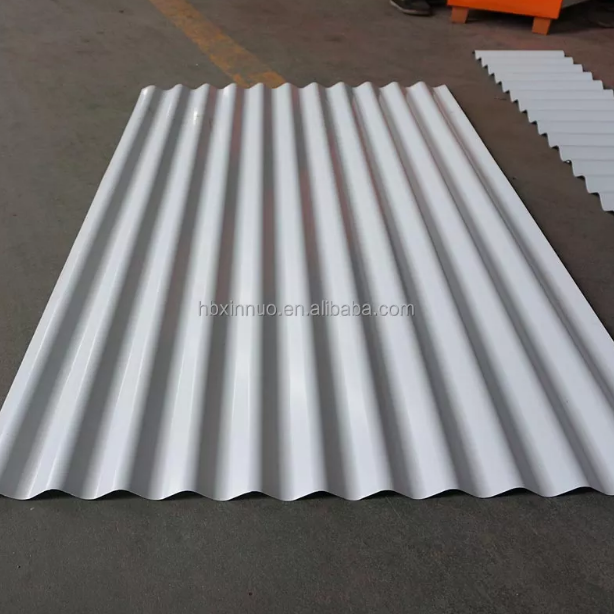

Application:Roof/Wall Tile
Production Capacity:12 m/min
Thicknees of the plate:0.3-0.8mm
Suitable to process:Color steel plate
Condition:New
Automatic Grade:Automatic
Key Selling Points:Long Service Life
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Ordinary Product
After Warranty Service:Video technical support
Supply Ability:150 Sets/Year
Cutter material:Cr12,quenched
Diameter of the roller:80mm
Marketing Type:New Product 2020
Chain Size:20mm
Roller station：11-18 rows or custom as customer's requirements
Shipping: Support Sea Freight
Port:Tianjin
Mode of payment: L/C D/P D/A T/T MoneyGram
Packaging Details:1. The main engine is wrapped with film and loaded into container.
2. The computer control box is packed in a wood box.
3. We can also pack according to customer's requirement.
