Brand:HengWin

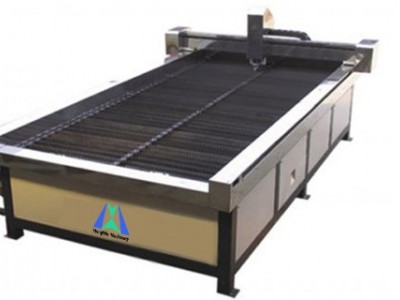

HWM-1325 Plasma cutting machine:1300*2500mm
Min quantity:1piece
Quantity:100piece
Deliver:In 15 days
Product introduction
◆The beam adopts light structure design, which has the characteristics of good rigidity, light weight and small motion inertia.
◆Gantry structure, Y axis adopts synchronous dual motor dual drive and X.Y.Z three axis adopts circular guide rail (optional linear guide rail), which has stable transmission and high running precision.
◆It can cut the metal panel and bottom plate of advertising three-dimensional luminous characters and channel characters, and the cutting accuracy can reach excellent indicators.
◆1325 plasma cutting machine is matched with other advertising equipment (blister machine, tooth cutting machine, engraving machine) to form an assembly line of advertising word processing technology, which completely solves the traditional manual processing method. Work efficiency is increased dozens of times.
◆The cutting opening is small and neat, and there is no slag drop phenomenon, which avoids the secondary trimming process.
◆The cutting speed is fast, the precision is high and the cost is low.
◆High configuration of numerical control system, automatic arc ignition, stable performance, and the success rate of arc ignition is over 99%.
◆Supports standard G code path files generated by software such as Wentai, ARTCAM, Type3, etc., and can also read DXF format files generated by software such as AUTOCAD through software conversion. The control system adopts U disk to exchange processing files, which is convenient and quick to operate.
◆Plasma power supply and cutting torch are produced by domestic famous brands and manufacturers who have obtained a number of national patented technologies.
technical parameter
Model: LH-1325
Processing size: 1300*2500mm
Power requirements: AC380v±5% 50Hz
Processing materials: iron plate, aluminum plate, galvanized plate, white steel plate, titanium plate
Cutting speed: 0-8000mm/min
Processing thickness: 0.5-15mm
Power: 8.5kw
Mechanical transmission: X, Y rack and pinion transmission
Plasma Current: 60A or 100A
File transfer method: USB interface
Working mode: non-contact arc ignition
Can be customized according to user needs
