Brand:Shisheng Machinery
Model:PXJ800*400
Inlet Size:400*185mm
Max. Feed Size:120mm
Min quantity:1set
Quantity:30set
Deliver:In 3 days

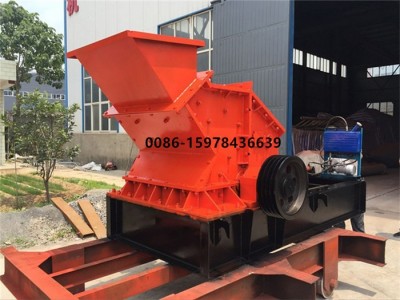

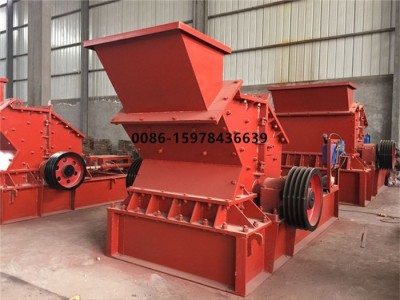

Stone Crusher Sand Making Machine
Stone Crusher Sand Making Machine Introduction:
Stone Crusher Sand Making Machine is the reference to the working priciple of various types of crusher, and according to the user's specific use of information feedback, combined with its advantages designed by the new efficient sand making machine, in the sand production line is essential equipment.

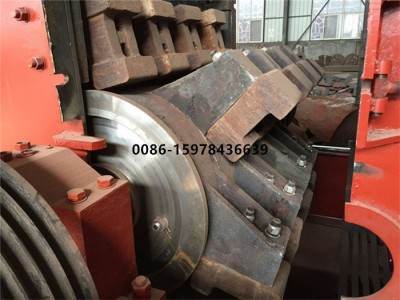

The rear of the high-performance crusher opens the maintenance watch door, which is more conductive to maintenance and observation of the operation of the quipment. And increased the grate bar adjustment device, easy to adjust the sand of the material size, crushing chamber hydraulic opening device, the design more humane.
Stone Crusher Sand Making Machine widely used in granite, basalt, limestone, river pebbles, cement clinker, quartz stone, iron ore, copper ore, lead-zinc mine, bauxite and other minerals crushing function.
Stone Crusher Sand Making Machine Technical Parameter:
| Model | Inlet Size (mm) | Max.Feed Size (mm) | Output Size (mm) | Adjust the Width of the Grate (mm) | Cement Clinker Capacity (t/h) | Limestone Capacity (t/h) |
| PXJ800*400 | 400*185 | 120 | ≤5 | 5-20 | 20-30 | 30-45 |
| PXJ800*600 | 500*250 | 180 | ≤5 | 5-20 | 35-40 | 40-55 |
| PXJ800*800 | 550*330 | 180 | ≤5 | 5-20 | 35-45 | 60-70 |
| PXJ1010*1010 | 1000*350 | 180 | ≤5 | 5-20 | 45-55 | 70-80 |
| PXJ1200*1100 | 1200*400 | 180 | ≤5 | 5-20 | 80-110 | 80-100 |
| PXJ1200*1200 | 1200*450 | 180 | ≤5 | 5-20 | 100-130 | 90-120 |
| PXJ1400*1400 | 1500*500 | 190 | ≤5 | 5-20 | 120-150 | 100-150 |
| PXJ1600*1600 | 1600*550 | 190 | ≤5 | 5-20 | 150-200 | 160-230 |
| PXJ1800*1800 | 1800*800 | 190 | ≤5 | 5-20 | 220-260 | 230-300 |
