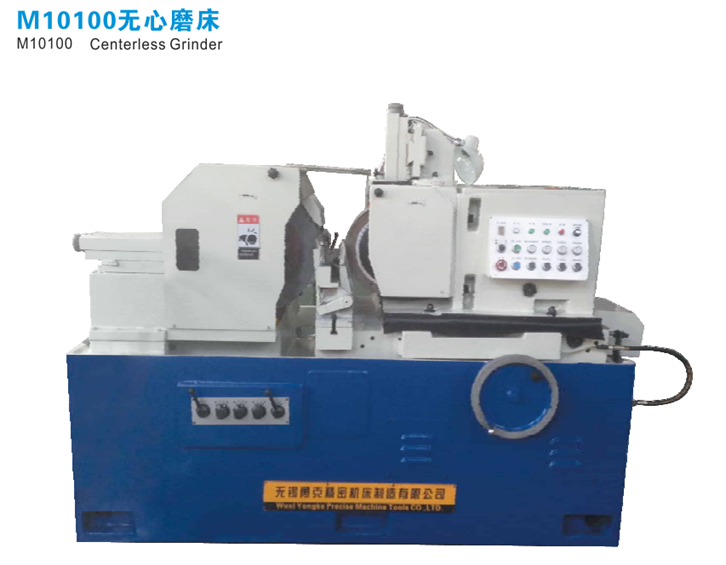

Machine tool structure features and performance of M10100 centerless grinder:
1. The layout of the machine tool adopts the single-sided movement method of the guide wheel frame;
2. The grinding wheel shaft is a cantilever structure and adopts a multi-piece dynamic pressure bearing;
3. The guide wheel shaft adopts an overhang structure, and the front and rear bearings of the main shaft adopt inner cone sliding bearings;
4. The feed of the guide wheel frame adopts V-type hydraulic unloading guide rail;
5. The speed regulation of the guide wheel adopts AC frequency conversion stepless speed regulation;
6. Equipped with automatic hydraulic cutting device.
