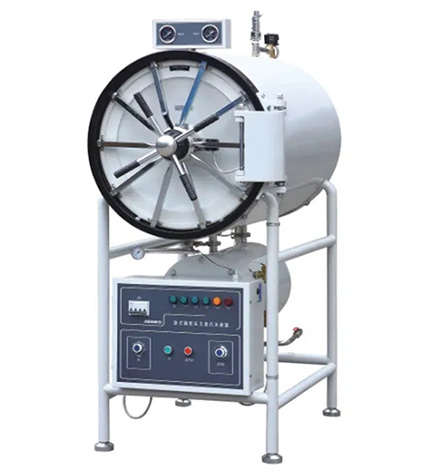

Laboratory 150 Liter Horizontal Cylindrical Pressure Steam Sterilizer
Hits: 353
Model NO.: WS-150YDA
Certification: CE, FDA, ISO13485
Price: N/A
Min quantity:
Quantity:
Deliver: In days
Expiry: Long-term
Update date 2022-06-02 16:12

Detail

Product introduction:

This horizontal pressure sterilizer adopts the gravity displacement method to remove the cold air in the inner chamber, so that the cold air content of the steam in the inner chamber is less, and the sterilization is more reliable. At the same time, during the sterilization process of the equipment, the control system automatically adjusts the steam intake and exhaust steam according to the temperature of the inner room. It is mainly used in hospital supply rooms, operating rooms, pharmaceutical factories and scientific research laboratories and other units to sterilize medical and experimental cloth items, surgical instruments and utensils.

Main features:

1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.
8.150L,200L,280L optional.

Main parameters:

Model

WS-

90YDA

WS-

150YDA

WS-

200YDA

WS-

280YDA

WS-

400YDA

WS-

500YDA

Chamber volume

90L

150L200L280L400L500L
working pressure

0.22MPa

Working temperature

134ºC

Adjustment of
temperature

105ºC-134ºC

Time of sterilization

0-60min

Time of drying

0-60min

Heat average

≤±1ºC

Power

9KW/380V

50Hz

9KW/380V

50Hz

9KW/380V

50Hz

12KW/380V

50Hz

18KW/380V

50Hz

18KW/380V

50Hz

Overall dimension

1100×600×

1300

1400×600×

1300

1400×670×

1650

1400×770×

1780

1430×880×

1830

1800×900×

1820

Transport dimension

1250×750×

1850

1550×750×

1850

1560×820×

1850

1680×920×

2100

1800×1050×

2100

1850×1050×

2100

G.W/N.W

270/200 KG

320/240KG

350/260KG

465/365KG

530/520KG

580/470KG


Product details:

Company information:

Zhengzhou Well-known Instrument & Equipment Co.,Ltd, is a famous manufacturer of Lab equipment located in the centralChina.The main products include rotary evaporator , glass reactor, autoclave machine , low temp cooling liquidcirculating pump and so on. So far, our products have been sold all over Asia, Europe and America, and covered most oflaboratories in China. We have become one of the most popular and trustworthy brands.

Though our foreign trade is not for long, we do have a history of more than 30 years of our domestic trade. To assure thegood quality & good service is our consistent aim.
We welcome new and old customers from all over the world to contact us for future business relationships and achievingmutual success!!

Packaging&shipping:

Packaging
-The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.

FAQ:

1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&qualityproblem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.

2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find theproblem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.

3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.

4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
