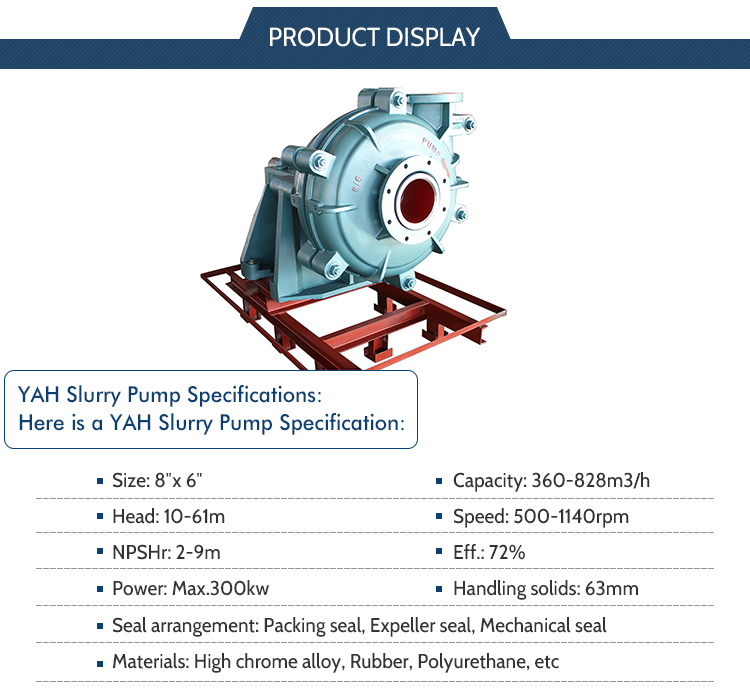

The YAH Slurry Pump is a kind of horizontal centrifugal slurry pump for heavy duties application. It is suitable a range of mill duties, from dirty water to the most difficult water flushed crusher services. It is mailly used for delivering low density slurry for metallurgical, mining, coal and building material departments.
Products Description
We can provide customization and machining of branded pump accessories with low prices.
>>>Please Contact Us For More Details<<<
We also provide accessories, please contact us！
TYPE | ALL0WABLE MATING MAX.P0WER(KW) | MATERIAL | CLEAR WATER PR0F0RMANCE |
LINER | IMPEL | CAPACITY | HEAD H（m) | SPEED n(r/min) | MAX. EFF η% | NPSH (m) |
(m³/h) | (L/S) |
4/3C-YAH | 30 | M | M | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4~6 |
4/3D-YAH | 60 |
4/3C-YAH | 30 | RU | M | 79.2--180 | 22-50 | 5-34.5 | 800-1 800 | 59 | 3~5 |
4/3D-YAH | 60 |
4/3C-YAH | 30 | M | RU | 97.2-194.4 | 27-54 | 9-53 | 1000-2200 | 55 |
|
4/3D-YAH | 60 |
4/3E-YHH | 120 | M | M | 12.6-252 | 35-70 | 12-97 | 600-1400 | 50 | 2~5 |
8/6E-YAH | 120 | M | M | 380~828 | 100-23 | 10-61 | 500-1140 | 72 | 2~9 |
8/6R-YAH |
300
|
8/6E-YAH | 120 | RU | RU | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5~10 |
B/6R-YAH | 300 |
8/6E-YAH | 120 | M | M | 360-828 | 100-230 | 7-70 | 400-1140 | 70 | 3~6 |
8/6R-YAH | 300 |
8/6E-YAH | 120 | M | M | 360-828 | 100-230 | 7-52 | 100-1000 | 70 | 2.5~6 |
8/6R-YAH | 300 | M | M | 360-828 | 100-230 | 7-52 | 400-1000 | 70 | 2.5~6 |
8/6E-YAH | 120 | M | M | 288-848 | 80-180 | 5-47 | 400-1100 | 80 | 3~6 |
8/6R-YAH | 300 |
8/6T-YHH | 1200 | M | M | 576-1152 | 160-320 | 32-95 | 450-725 | 65 | 6~10 |
10/BE-M | 120 | M | M | 540-1228 | 150-340 | 15-61 | 600-1100 | 70 | 4.5~8 |
10/BR-M | 300 |
10/BE-M | 120 | M | M | 504-1080 | 140-300 | 18-86 | 700-1100 | 62 | 4.5~7.5 |
10/8R-M | 300 |
10/8E-M | 120 | M | M | 666-1440 | 185-400 | 14-60 | 600-1100 | 73 | 4~10 |
10/BR-M | 300 |
10/8E-M | 120 | RU | RU | 640-1188 | 150-330 | 10-42 | 500-800 | 79 | 5~9 |
10/8R-M | 300 |
10/BST-YAH | 560 | M | M | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4~10 |
RU | RU | 540-1188 | 150-330 | 12-50 | 400-750 | 75 | 4~12 |
12/10ST-YAH | 560 | M | M | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 |
M | RU | 720-1620 | 200-450 | 7-45 | 300-650 | 80 | 2.5~7.5 |
14/12ST-YAH | 560 | M | M | 1260-2772 | 350-770 | 13-63 | 300-600 | 7 | 3~10 |
RU | RU | 1152-2520 | 320-700 | 13-44 | 300-500 | 79 | 3~8 |
YAH Slurry pumps are cantilevered, horizontal, centrifugal slurry pumps which do heavy duty. They are designed for transferring the highly abrasive or corrosive slurry
Product Paramenters

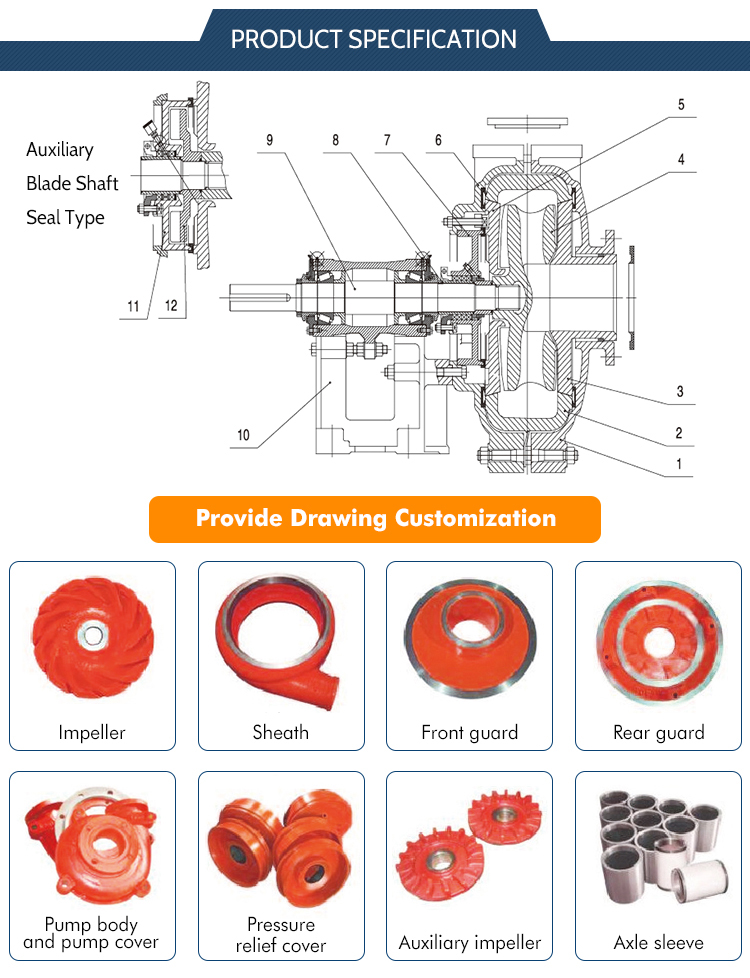

Number | Name | Material | Number | Name | Material |
1 | Pump cover | HT200/QT500-7 | 7 | Stuffing box | HT200/QT500-7 |
2 | Sheath | GLH/Rubber | 8 | Axle sleeve | 3Cr13 |
3 | Front guard | GLH/Rubber | 9 | Axis | 45 |
4 | Impeller | GLH/Rubber | 10 | Bracket body | HT200 |
5 | Rear guard | GLH/Rubber | 11 | Pressure relief cover | GLH/HT200 |
6 | Pump body | HT200/QT500-7 | 12 | Expeller | GLH/HT200 |
Necessary Parameter For Choose Model
Please copy the following format to explain your needs, I will provide you with a more suitable quotation：
Flow:__ m3/h (How many cubic meters of liquid are delivered per hour)
Head:__ _M (The height at which the pump can lift liquid)
Industrial voltage and frequency at the project site:_ V/___ _hz
SG.:____ (Slurry Specific Gravity )
