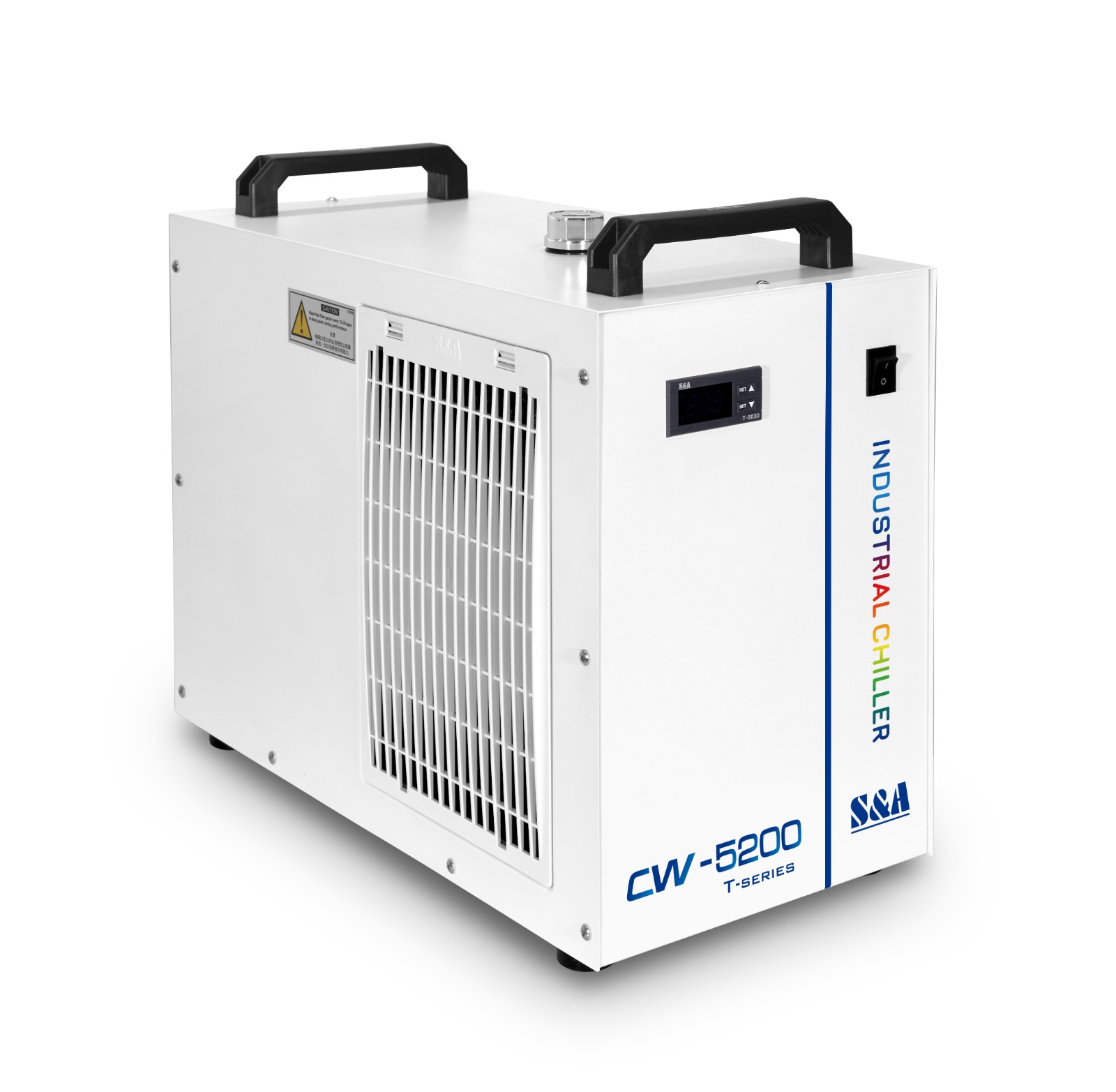

Compact water chiller CW-5200 is applicable to cool 130W CO2 laser cutting machine. It is produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A), a professional China-based chiller unit manufacturer with 21-year experience.
Industrial process water chiller CW-5200 features the cooling capacity of 1770W and the temperature stability of ±0.3℃ in addition to 6L tank capacity. What makes air cooled industrial chiller CW-5200 outperforms other chiller brands is that it has intelligent temperature controller which can display water temperature & room temperature and realize multiple alarm functions, such as compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm so that the chiller can be well protected.
Compact water chiller CW-5200 is equipped with water level gauge, so that users no longer have to worry about if they are adding too much water inside. The suitable water level is within the green indicator of the water level gauge.
Industrial process water chiller CW-5200 conforms to the standard of CE,RoHS, REACH and ISO, so users in different countries can rest assured when using air cooled industrial chiller CW-5200. Besides, S&A offers 2-year warranty on all the chillers it produces.
It is suggested to use purified water or clean distilled water as the circulating water to reduce the possible clogging inside the circulating waterway.
Compact water chiller CW-5200 video:
https://www.teyuchiller.com/water-chiller-cw-5200-for-dc-rf-co2-laser_cl3
Specification:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a/R-410a
Pump power: 0.05KW/0.09KW; Tank capacity:6L
Max. pump pressure:12M-25M; Max. pump flow: 10L/min- 16L/min
N.W: 25Kg; G.W: 28Kg;
about S&A Chiller Brand
S&A Chiller was founded in 2002 with 21 years of industrial water chiller manufacturing experience and now is recognized as a cooling technology pioneer and reliable partner in the laser industry. S&A Chiller delivers what it promises - providing high performance, highly reliable and energy efficient industrial water chillers with superior quality.
The reasons why you can rely on us are as follows:
- Reliable quality at a competitive price;
- ISO, CE, ROHS and REACH certificated;
- Cooling capacity ranging from 0.6kW-40kW;
- Available for fiber laser, CO2 laser, UV laser, diode laser, ultrafast laser, etc;
- 2-year warranty with professional after-sales service;
- Factory area of 25,000m2 with 400+ employees;
- Annual sales quantity of 100,000 units, exported to 50+ countries.
