Pharmaceutical Aseptic Glass vial Washing Sterilization Auger Powder Filling Capping Labeling Machine
Main Application

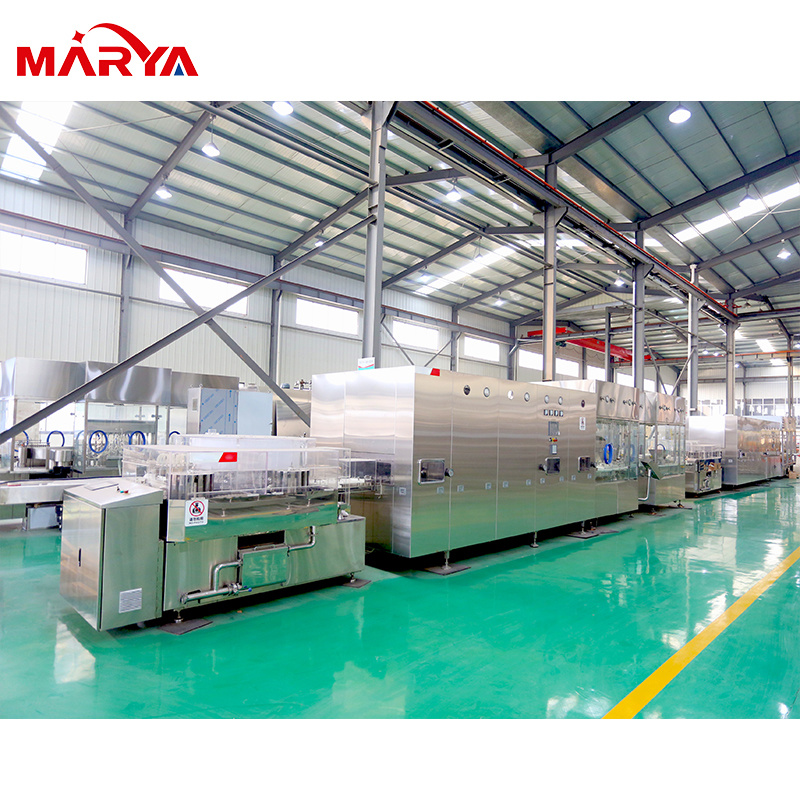

The Pharmaceutical Automatic GMP Vial Washing Sterilizing Filling Capping Machineproduction line is composed of ultrasonic bottle washing machine, dryer sterilizer and ampoule filling and sealing machine. It can complete spraying water, ultrasonic cleaning, air & water flushing of inner and outer wall of ampoule bottle, preheating, drying and sterilization, heat source removing, cooling,(nitrogen pre-filling), filling, (nitrogen post-filling), ampoule sealing and other complex functions, realizing automatic production of the whole process.Each machine can be used separatelyor in linkage line. The whole lineis mainly used for ampoule injections filling in pharmaceutical factories and the general type can also be used for antibiotic vial injection filling or powder filling.

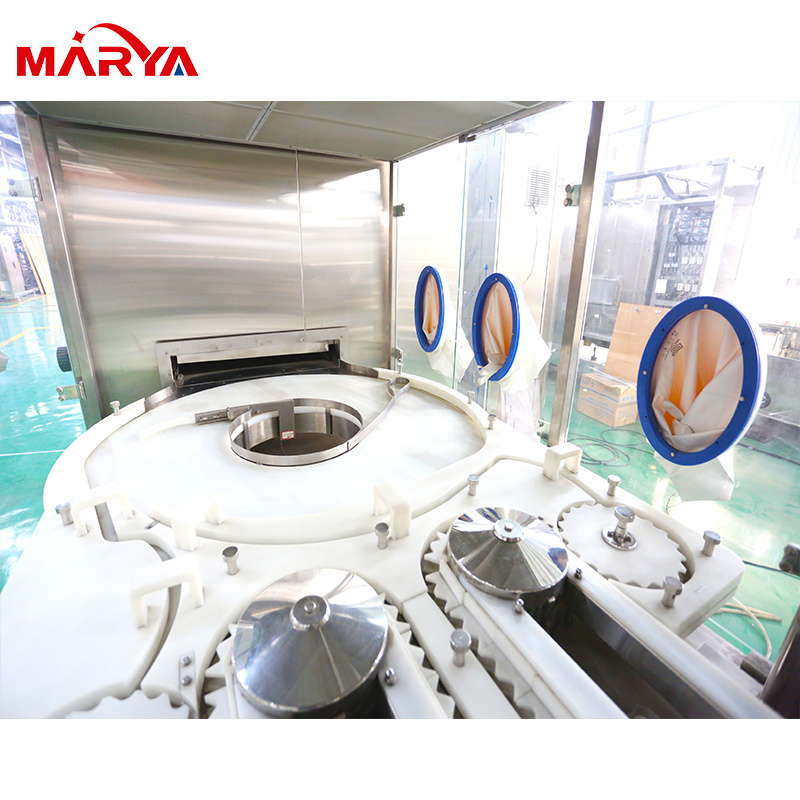

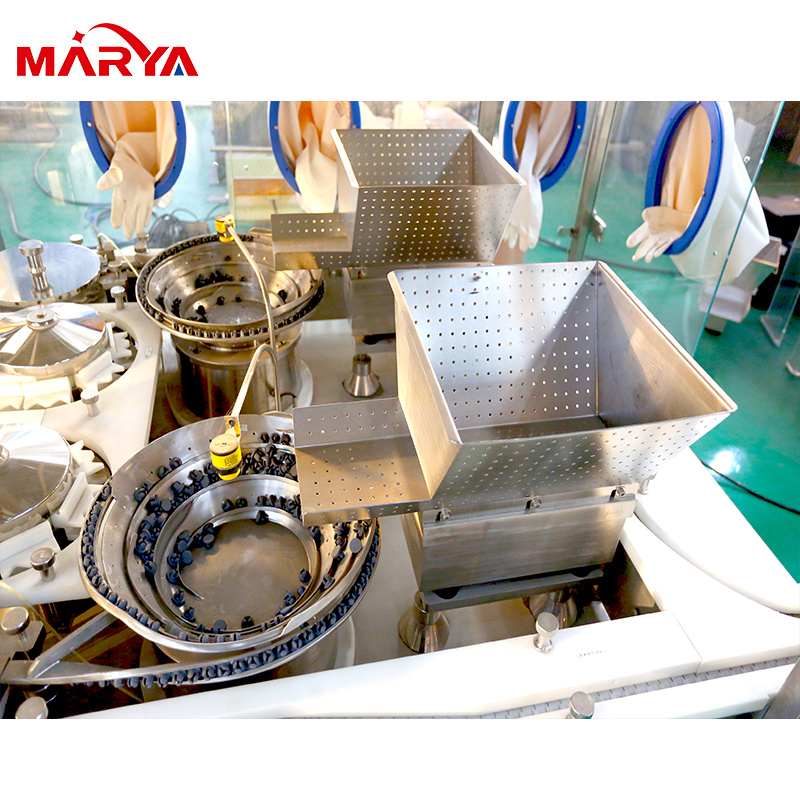

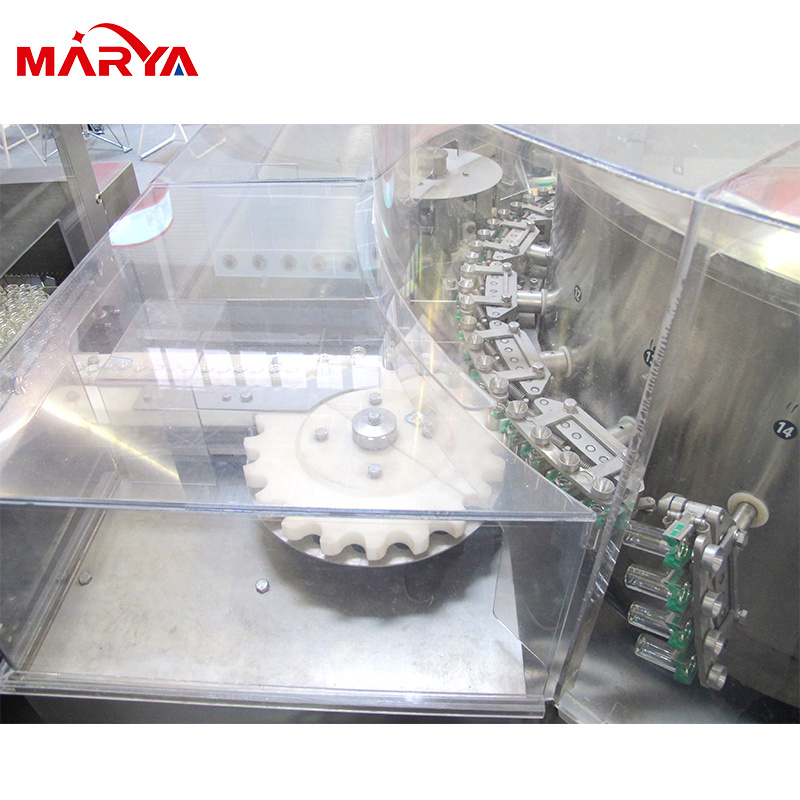

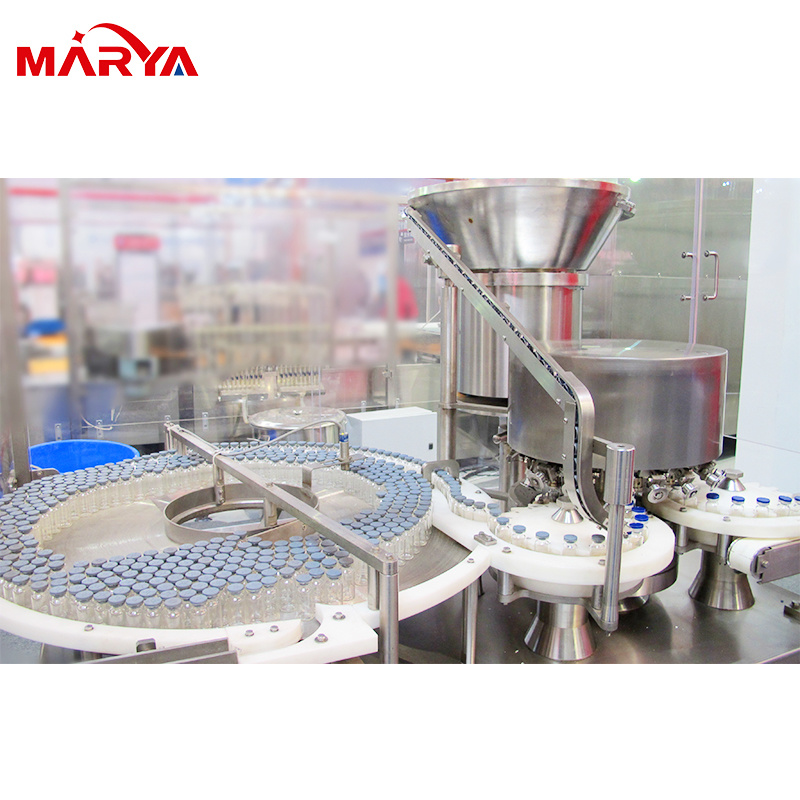

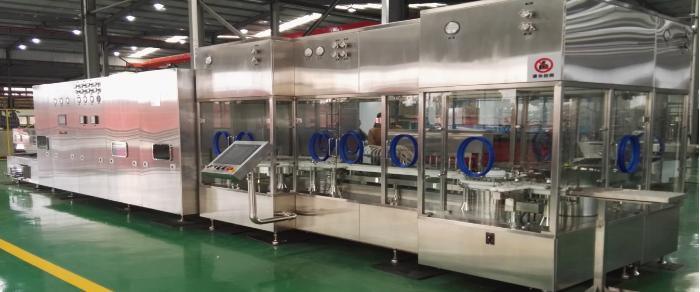

ntent="" style="background-color:#f7cbac;padding:0 10px;margin:0;line-height:36px;text-align:left;">Detailed Photos
ntent="" style="background-color:#f7cbac;padding:0 10px;margin:0;line-height:36px;text-align:left;">Product Parameters
Performance Features
1.The whole Pharmaceutical Automatic GMP Vial Washing Sterilizing Filling Capping Machine meets new GMPrequirements, and the cleaning effectmeets the newPharmacopoeiastandards and requirements.
2.The wholePharmaceutical Automatic GMP Vial Washing Sterilizing Filling Capping Machine line can adopt straight-line layout or wall-to-wall L-shaped layout to reduce risk of cross-contamination and ensure aseptic level.
3.Applicable specification: 1ml-20ml ampoule (as per user's requirement)
4.Production Capacity: 12000-36000BPH for
5.Number of filling head: 2-20, to be selected according to output
6.Filling Accuracy: ≤±1% (according to drug characteristics)
7.Choice of various filling pumps: glass pump, metal pump, peristaltic pump, ceramicpump;
8.Compact and simple structure, occupies less area;
9. Stable product performance, easy and reliable operation, beautiful appearance;
10. High degree of automation, fewer operators required for Pharmaceutical Automatic GMP Vial Washing Sterilizing Filling Capping Machine;
11.Various sealing gas supply methods such as natural gas or hydrogen and oxygengas;
12.Optional real-time display and printing system of sterilization temperature;
13.The maximum sterilization temperature of hot air circulation tunnel oven is350ºC;
14.The heat in the hot air circulation tunnel oven is evenly distributed, and the heatresources removal effect is
good.
15.Optional open-RABS isolation protection system and class 100 laminar flow hood protection;
16.Optional high-performance no-bottle-no-filling function and squeeze stop function;
17.The filling machine can be equipped with online monitoring system to monitor keyfactors that affect product
quality (such as dust particles, planktonic bacteria, windspeed, wind pressure, etc.).
18.Full-line linkage control and operation function;
19.To realize fully automatic control and monitor of production process, highprecision colored touch screen
operation monitoring, PLC automatic control &automatic protection, main machine frequency conversion speed
regulation andother control technology are used.
20.Applicable for wide range of bottle specifications, and easy to replace mould.
21.The products can be customized according to customer's actual demand.
ntent="" style="background-color:#f7cbac;padding:0 10px;margin:0;line-height:36px;text-align:left;">Certifications
ntent="" style="background-color:#f7cbac;padding:0 10px;margin:0;line-height:36px;text-align:left;">Packaging & Shipping
ntent="" style="background-color:#f7cbac;padding:0 10px;margin:0;line-height:36px;text-align:left;">Company Profile
ntent="" style="background-color:#f7cbac;padding:0 10px;margin:0;line-height:36px;text-align:left;">Our project

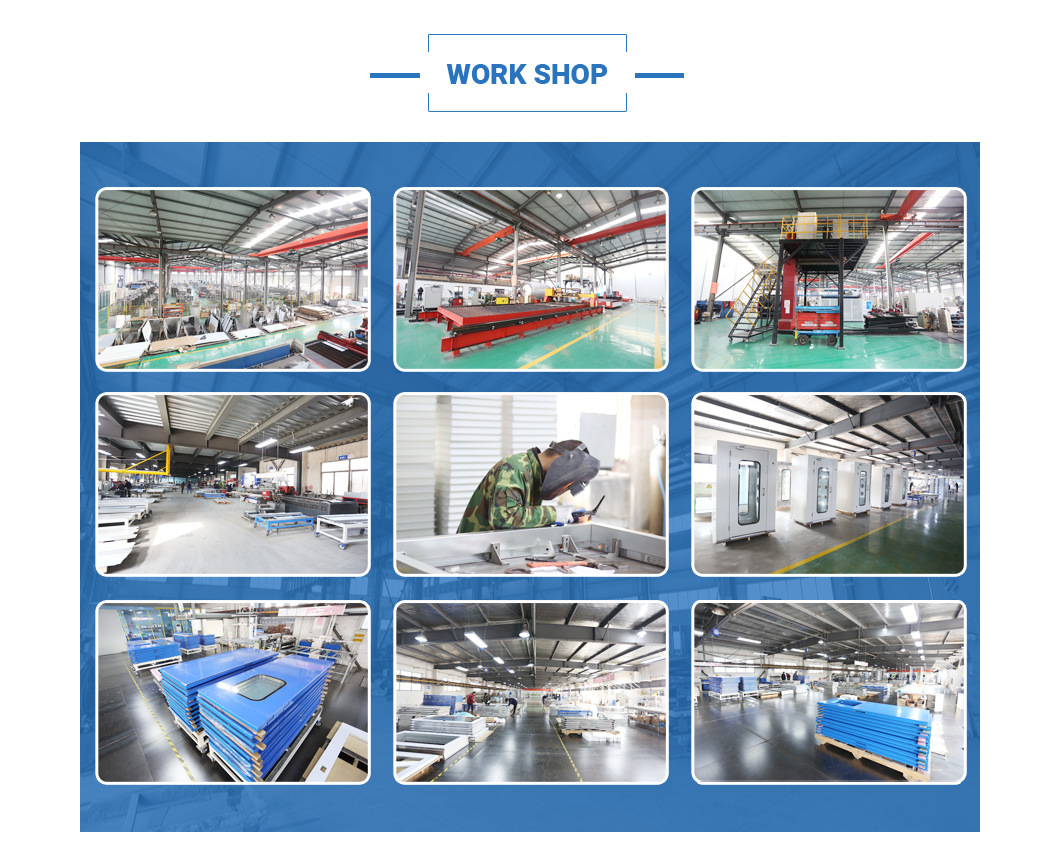

ntent="" style="background-color:#f7cbac;padding:0 10px;margin:0;line-height:36px;">Our factory
