General description

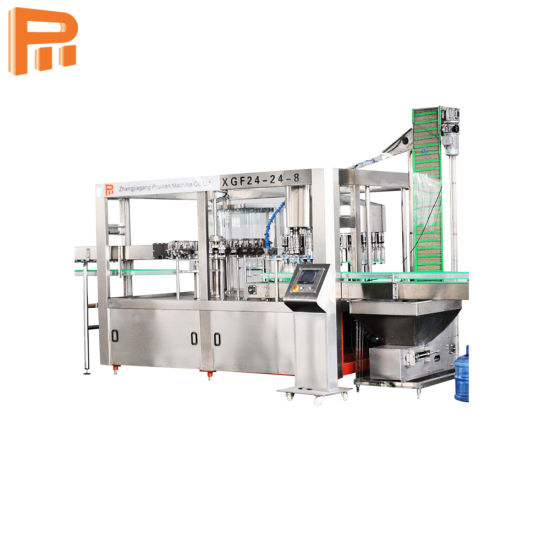

3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of Juice and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Main features
Air conveyor
Air conveyor is horsed on the floor, with fan installed on the top. Air filter is positioned at every
entrance of air fan, to prevent dust blown into bottles. Bottles are blocked on the neck in the
conveyor and transported into filling machine by blowing power. All are made of stainless steel
ANSI304, except the horses, board of plastic and nylon.
Technical parameter
1. Model of fan: DF-9;
2. Power fan: 2.2 KW/Unit; flowing capacity: 2800m3/h; full pressure: 1650MPa; rotation speed: 2840r/min; weight:38kg
4. Length of air conveyor: according to plant layout
Flat conveyor
1.Stable conveying, using synchronous chasing control between the conveying belt and
engine, making bottles in good condition in the conveying: non-falling, non-block, non-jam.
2. Conveying belt is designed by module, component can be interchanged easily, with compact structure, low noise, easy assembling and maintaining, good flexibility to combine the
bottle type according to the different capacity.
3. The design of electrical control is advanced and rational, we can design the control
method ,select the electrical control component according to client's layout, to improve
the conveying stability
4. Set the switch according to conveying system layout or customers' reasonable requirement,
for the convenience of operation.
5. Belt lubricating system is equipped
6.Main part all using ANSI304
7. Fringe board is using the U.S. Rexnord technology to produce
Specification:
1.Conveyor Height:1050mm
2.Side panel: 304 stainless steel sheet, thickness is 2mm
3.Power: HANGZHOU JIE Brand 0.75KW
4.Supporting leg: 304 stainless steel
5.Trunking and cover: 304 stainless steel
6.Lubricant water conservation tank: 304 stainless steel
7.Chain plate: Domestic high-quality plastic chain plate,polyoxymethylene (POM)
8.Bearing housing: 304 stainless steel cage
| No | Equipment name | Technical parameter | Qty |
| 1 | Filling 3-IN-1 machine main body | Model:RCGF24-24-8Number of heads: 24 washing heads, 24 filling heads and 8capping headsCapacity: 8000B/H (500ml)Material: The material which contact directly with the liquid is the SUS304 (Food grade), made in china. The transmission mechanism and the gear are equipped with firing A4 carbon steel.The 3-in-1 is mainly used to fill Juice.Disposition :6.1,Motor: LICHAO SHANGHAI 6.2,Gear box: JIE brand Hangzhou 6.3,Invert speed control: SiemensVolume of PET bottle :0.25L-2LDiameter of bottle: 50-115mmHeight of bottle: 160-320mmCap: plastic screw type capFilling temperature: 87degreeFilling pressure: NormalFilling precision: ±2-3%Pressure of washing: 0.2MpaWashing consuming water: 1200kg/hGas consumption: 0.8m³ /minPower of main motor: 4KWDimension:2800*2350*2200mmCap sorter placed beside machine and electrical parts under cap sorter | set |
