Elevating type pulse vacuum vertical autoclave 60L sterilizer electrically control
| MODEL | LS-60SV | LS-80SV | LS-100SV | LS-120SV |
| Technical | ||||
| Chamber volume | 60L φ396×490mm | 80L φ396×650mm | 100L 504×404×502mm | 120L 504×404×590mm |
| The height after rising | 1310 | 1590 | 1475 | 1565 |
| Working pressure | 0.22Mpa | |||
| Working temperature | 134ºC | |||
| Heat average | ≤±1ºC | |||
| Timer range | 0-99min | |||
| Temperature adjust range | 105-134ºC | |||
| Power | Steam generator:3KW Dry blanket:2.4KW/AC220V 50HZ | Steam generator:3.6KW Dry blanket:2.4KW/AC220V 50HZ | ||
| Overall dimension(mm) | 686×556×913 | 686×556×1035 | 840×600×970 | 840×600×1060 |
| Transport dimension(mm) | 789×656×1013 | 786×656×1135 | 940×610×1000 | 940×610×1075 |
| G.W/N.W | 210Kg/180Kg | 230Kg/200Kg | 300Kg/270Kg | 325Kg/295Kg |
Feature

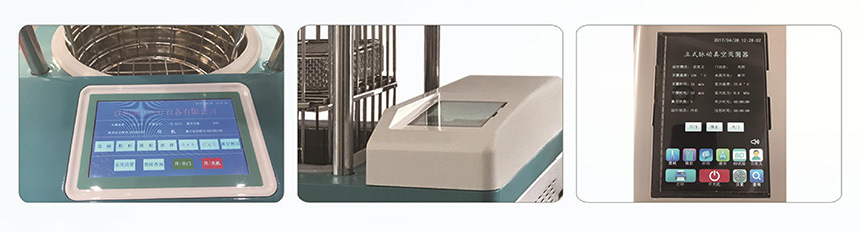

• 7" capacitive touch screen, fully automatically controlled, easy to operate on.
• Elevating type door, which is more convenient to place and fetch the objects from the autoclave.
• The whole procedure from water inlet, pulse vacuum, heat, sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one-key operation.
• Pulse vacuum, the limit is -0.080Mpa, which ensure the sterilizing more completely.
• Separated steam generator, which is more energy saving by comparing to the normal heating and prevent the sterilizing objects from been oxidized.
• There are several programs loaded in the autoclaves for different requirement of different objects.
• With PT-TT testing port, easy to run the testing.
• Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20um, which ensure the air is sterile, prevent the contamination.
• Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
| Q1. Is free sample available? |
| A: Yes, sure. we are happy to send free samples of some items for quality evaluation first. Please feel free to contact us. |
| Q2. What is your lead time? |
| A: Normally3-7 days in general |
| Q3. How does your factory do regarding quality control? |
| A: Quality is priority. All raw material we used are non-toxic, environmental-friendly. We have aprofessional QA/QC team to ensure the quality. And all pass the test report. |
| Q4. Do you accept OEM or ODM order? |
| A: Yes, sure. we accept both OEM and ODM for customers. |
| Q5. What are your terms of delivery? |
| A: We can accept EXW, FOB, CIF, etc. depends on which one you prefer. |
| Q6. What is the payment way? |
| A: TT, westeruion, ect. |
