Introduction
Cut Pile tufting machines is widely used for the production of dyed rugs and print base.Pile height ranges from 6mm to 22mm.
Parameters
Machine size:
2m L*W*H5.8*1.5m*2.5m
4m L*W*H7.8*1.5m*2.5m
Working width: 2m or 4m
Gauge: 5/32" or 1/8" or 1/10" or 5/64"
Cut pile height range: 2.5-9mm
Mechanical speed: 1000RPM
Stitch density: 25-60 stitches/10cm
Total power: 2m 28kw
4m 40kw
Optional sliding needle bar or jute mover
Servo motor + planetary reducer feeding of primary back
Roller puller controlled by servo motor
Operation setting on touch screen

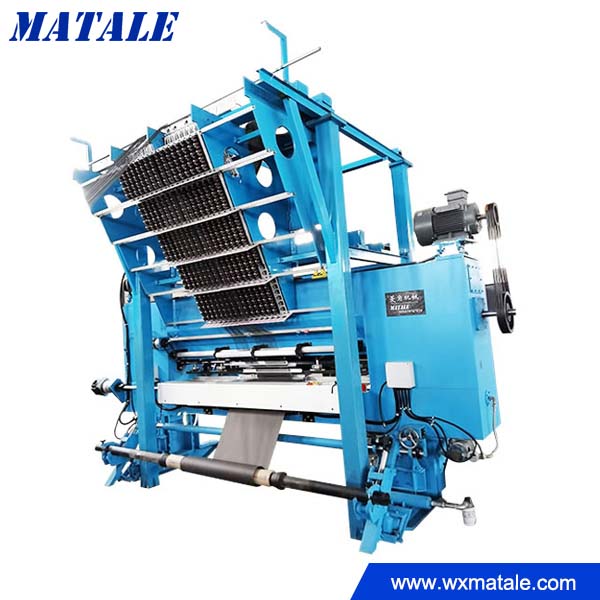

Machine photos

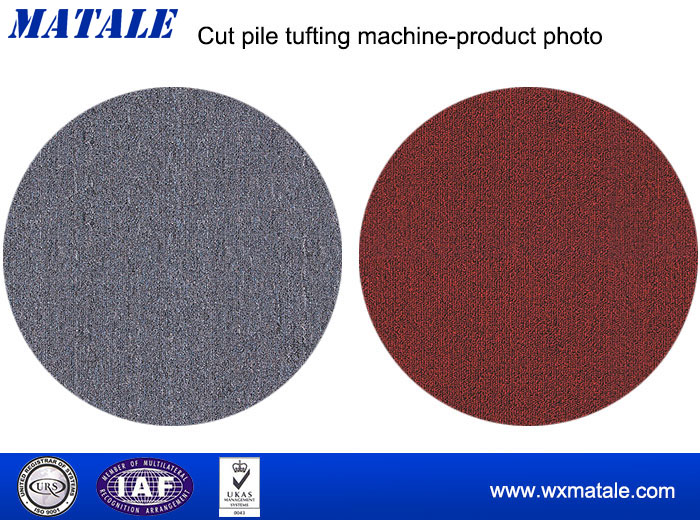

Product Photos
Machine feature
1. Stable structure with no internal stress deformation by using cast frame and overall annealing treatment.2. Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
3. Equipped with lifting rings , easy for movement.
4. Air cylinder device for backing roll loading.
5. High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
6. By using 4 individual point s crews , machine can stand on all types of floors .
7. Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
8. Overload protection, cover protections , pull wire emergency stop switch.
9. Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

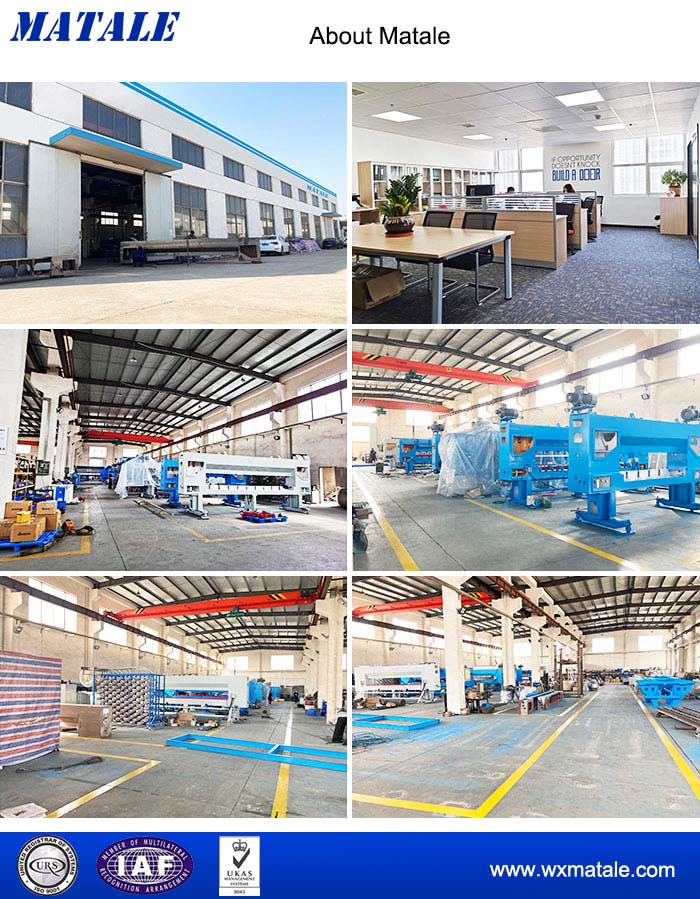

Company profile
Matale's philosophy is to focus on the development of professional technology, the innovation of professional products and the world class level sales team aiming to provide better service to our customers in the flooring industry.
Matale, proudly made in China, will always be committed to the research and development on all unique tufting machines and ancillary equipment. Our reliable product quality standard system have brought customers worldwide and we will continue our reputable to meet the market demands. Matale has full range of tufting machines from basic plain loop, plain cut series, multi loop series, LCL FRS series, ICN series and other patterning tailer-made machines for all applications from wall to wall, residential and contracted tiles.

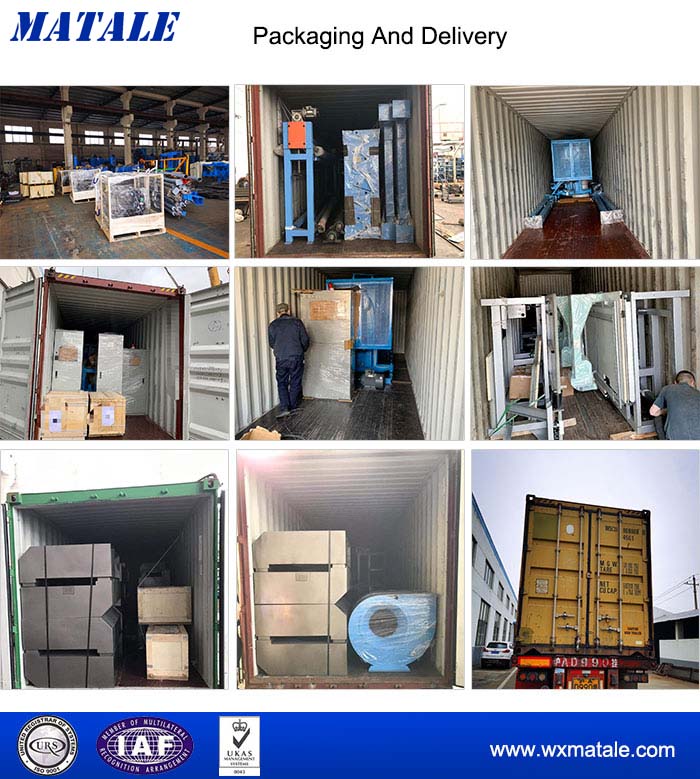

Packing and shipping
