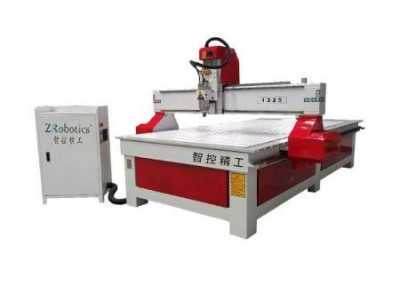

machine model | TC-1325 3axis cnc router |
Engraving range | 1300*2500*200mm |
Z axis travelling | 200mm |
Body structure | Steel structure （CNC processing） |
Table configuration | Steel structure （CNC processing） |
Machine bridge | Steel structure （CNC processing） |
Y axis side wall | Casting iron |
Z axis transmission | 3210 Taiwan HIWIN auto anti-gap ball screw |
X Y axis transmission | China slanting gear |
Table specification | steel |
Guide specification | Taiwan HIWIN 50 linear square guide rail |
Driving motor | Japan YASKAWA SERVO MOTOR 1.3KW motor |
X Y Zaxis reducer | Taiwan Shimpo reducer |
C A axis reducer | Japan HD slant slope reducer |
Controlling system | Shenzheng 3 axis controlling system |
Moving way | Gantry moving |
Spindle rotating speed | 0-24000r/m |
Spindle power | 3KW |
Positioning accuracy | ±0.1/300mm |
Converter | 5KWSUNFAR inverter |
Resolution | 0.001/resolution |
Z axis traveling | 200mm |
Feeding height | 200mm |
frame configuration | 10mm thickness steel |
gantry | 10mm thickness steel |
Side wall | 钢结构 |
Baking sheet | 2mm |
Cooling system | Water cooler |
Engraving instructions | G code, eng, u00, mmg, nc |
Tools diameter | ER20 |
Electric box | Electric box |
Machine power | 380V/220V |
weight | 1000KG |
